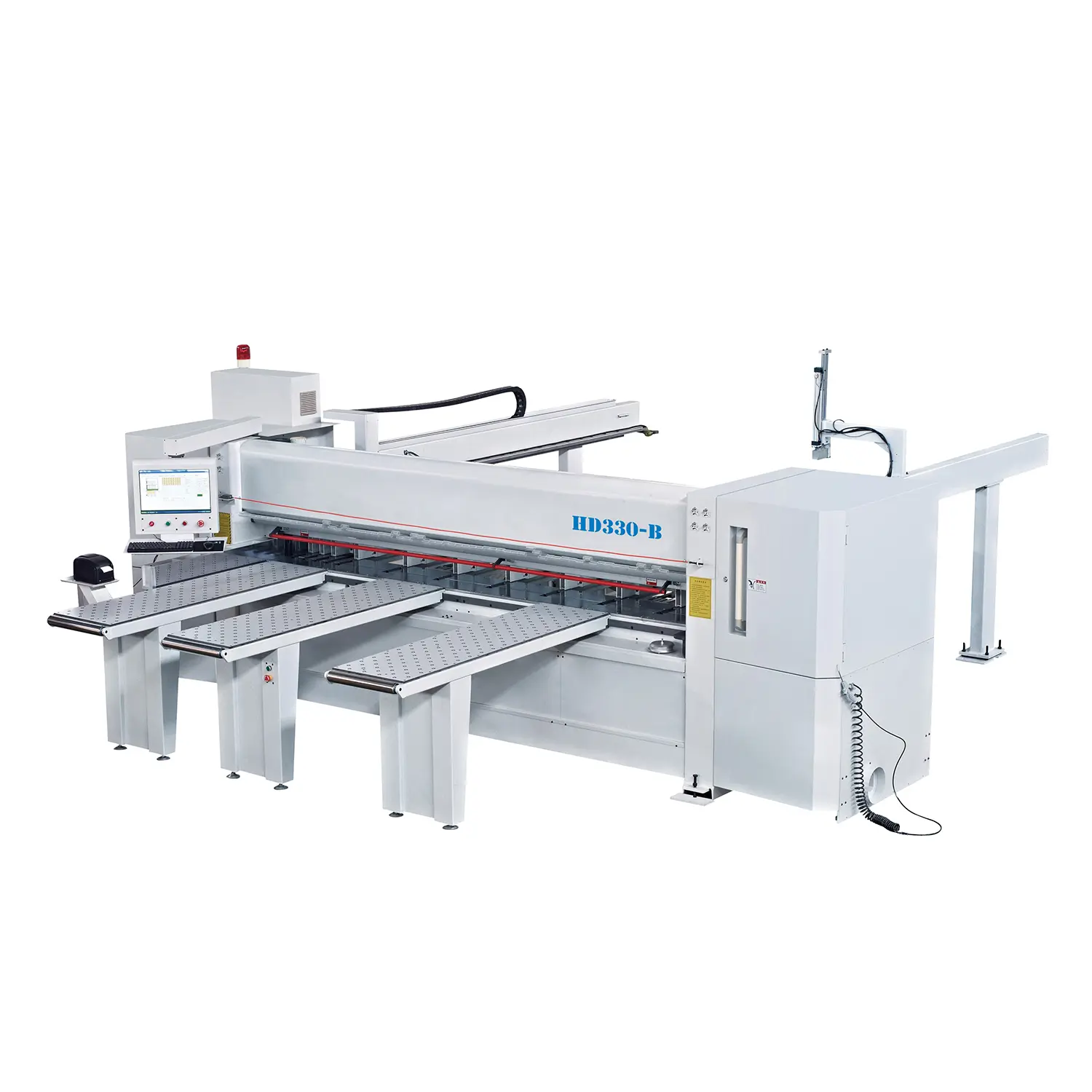

HD 330G Industrial CNC Beam Saw

330 Industrial CNC Beam Saw

The 330 Industrial CNC Beam Saw is a heavy-duty, high-efficiency cutting solution designed for high-volume panel production. Featuring a robust rear-loading system with a 3,000kg capacity and rapid speeds of up to 100m/min, it delivers exceptional precision and throughput. Engineered with a multi-annealed anti-deformation frame and an advanced AC servo-driven system, this saw ensures lifelong stability and maintenance-free operation. With integrated smart software for panel optimization and barcode printing, the 330 seamlessly bridges the gap between digital design and high-precision manufacturing.

Category:

Product Enquiry

Description

Technical Specifications

Main Technical Parameters 330
Max. Processing Size (L×W×T) 3280 × 3280 × 120mm
Sawing Speed 100m/min
Max. Feeding Speed 100m/min
Main Saw Blade Outer Diameter φ400mm / 450mm (Optional)
Scoring Saw Blade Outer Diameter φ160mm
Main Saw Motor Power 18.5kw
Scoring Saw Motor Power 2.2kw
Feeding Servo Motor 1.5kw
Working Pneumatic Pressure 0.6Mpa
Saw Carriage Servo Motor 1.5kw
Rear Loading Panel Size mm 1220 * 2440
Panel Stacking Height 1200mm (Requires Pit Installation)
Pushing Motor 2.2kw
Feeding Table Load Capacity 3000kg
Machine Dimensions 9767 x 6448 x 1890

Standard Configurations & Advantages of the Machine:

  • Solid double-sided horizontal guide rails ➔ Accurate and durable.
  • Rack and pinion drive mechanism ➔ Lubrication-free.
  • AC servo motor drive ➔ High-speed, accurate, and rapid operation of the manipulator pusher.
  • Optional: Non-contact electromagnetic measuring system – Wear-free, maintenance-free, closed-loop measurement, high-precision drive system.
  • Solid and reliable manipulator ➔ Prevents slipping.

Beam Saw Frame: Heavy-duty frame, annealed multiple times, solid and durable, highly resistant to deformation.

Pressure Beam:

  • Integrated aluminum alloy pressure beam: Perfectly presses the panels firmly onto the machine worktable, ensuring stability during the sawing process.
  • Dual-end rack and pinion synchronous pressure beam: Applies even pressure across the entire processing surface.
  • Minimal pressure beam opening: Optimizes dust extraction capabilities and ensures a perfect sawing effect.

Saw Carriage: Adopts an imported aluminum alloy structure.

Advantage: Lifelong anti-deformation.

  • Rack and pinion drive: Lubrication-free.
  • Manual adjustment of the scoring saw: Simple and fast.

Optional: Panel Optimization and Label Printing:
Data can be transferred via a computer to print barcodes or QR codes.

After panel programming optimization, the generated cutting programs can be directly transmitted to the HOLD CNC Beam Saw via the network, or the data can be copied to the HOLD CNC Beam Saw using a USB flash drive. This process is convenient, fast, and highly improves work efficiency.
