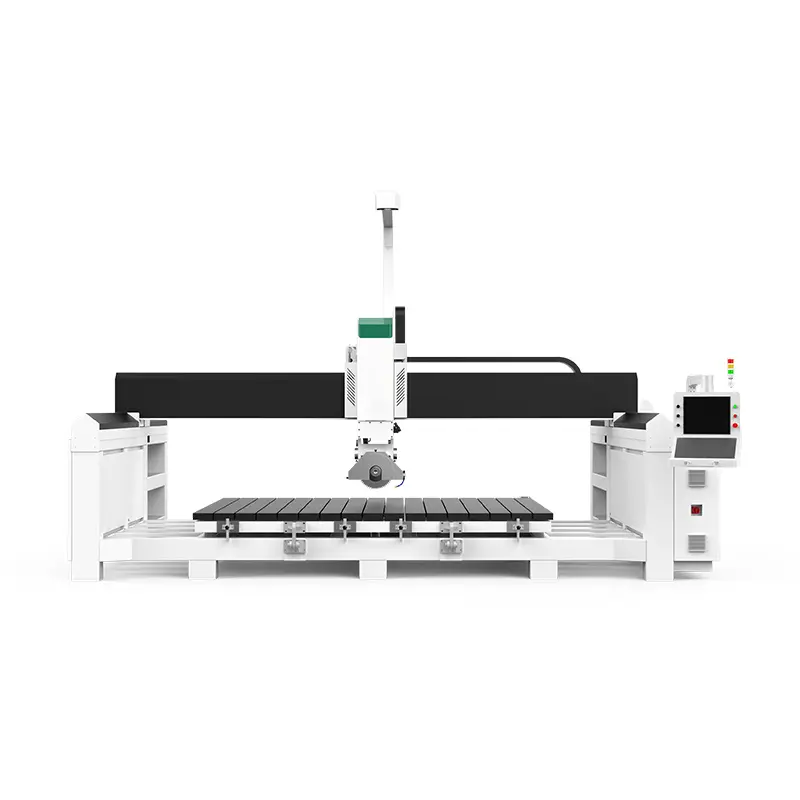

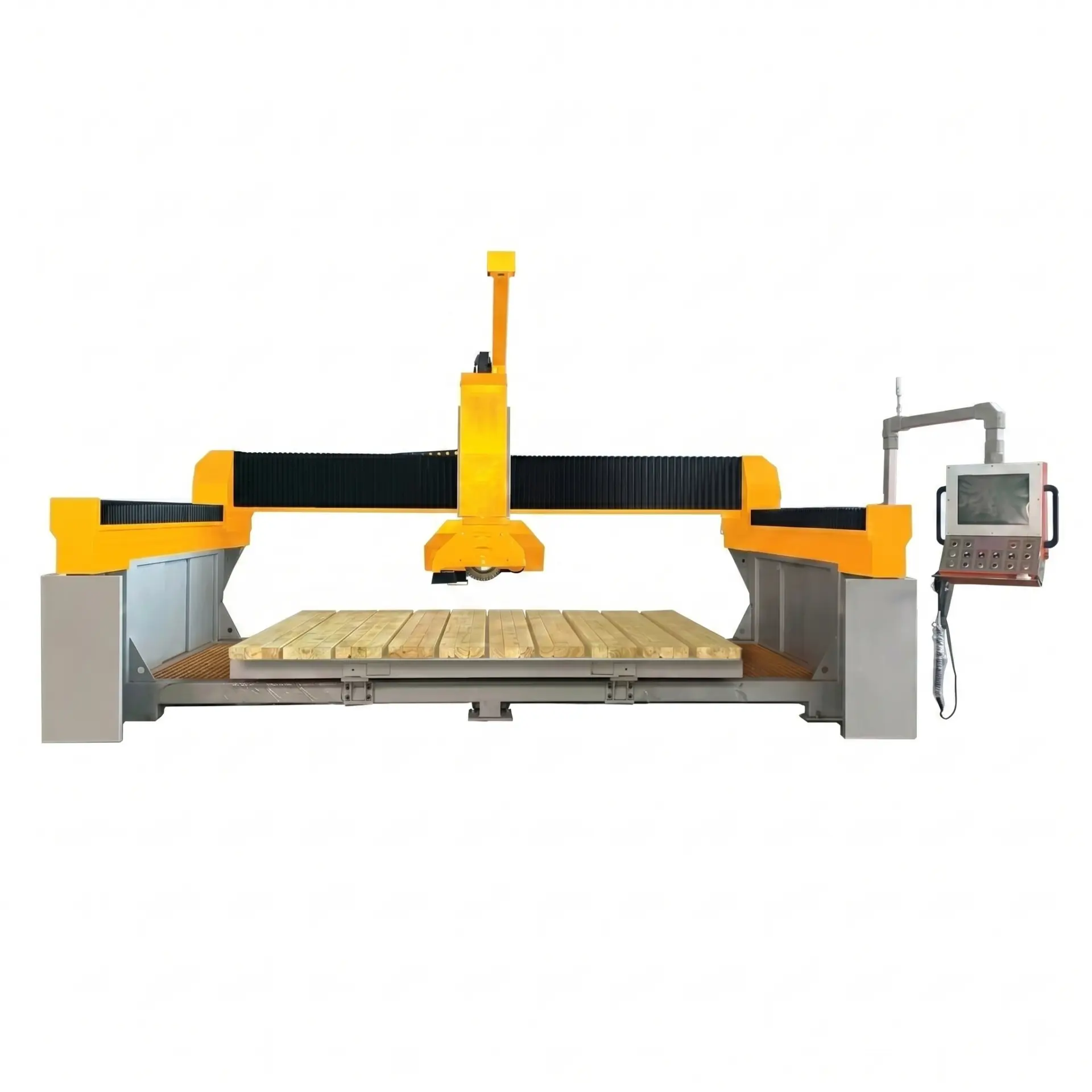

5-Axis CNC Bridge Saw

This integrated five-axis bridge cutting machine is designed for processing standard plates as well as a wide variety of specialized shapes. It excels in complex profile cutting and copying—including polygons, triangles, fans, table panels, ovals, diamonds, circles, ogee (horse belly) edges, and arbitrary angle chamfering.

Characterized by high cutting speeds, exceptional precision, and a user-friendly, intelligent interface, it is ideal for processing various stone materials such as sintered stone, marble, granite, and quartz. This machine is the preferred equipment for stone processing enterprises specializing in engineering projects and high-end home decoration.

Category:

Product Enquiry

Description

Category Project Parameter
Machine Stroke X-axis stroke 3400 mm
Y-axis stroke 2000 mm
Z-axis stroke 250 mm
A-axis stroke 0°–90° (Automatic)
C-axis stroke ±365°
General Configuration Cutting thickness 0–80 mm
Fast running speed 20 m/min
Spindle power 18.5 kW
Spindle speed 0–4500 rpm
Saw blade diameter 300–450 mm
Platform size 3400 × 2000 mm
Flip angle 0°–85°
Total power ≈24 kW
Total weight ≈4200 kg
Equipment dimensions 6000 × 3300 × 3000 mm
Functional Configuration Camera function Included (Standard)
Knife function Optional
Thickness function Optional
Chuck function Optional
Cutter function Optional

Note: The specifications above represent the standard configuration. Customization is available for parameters or functions not explicitly listed.
