Description

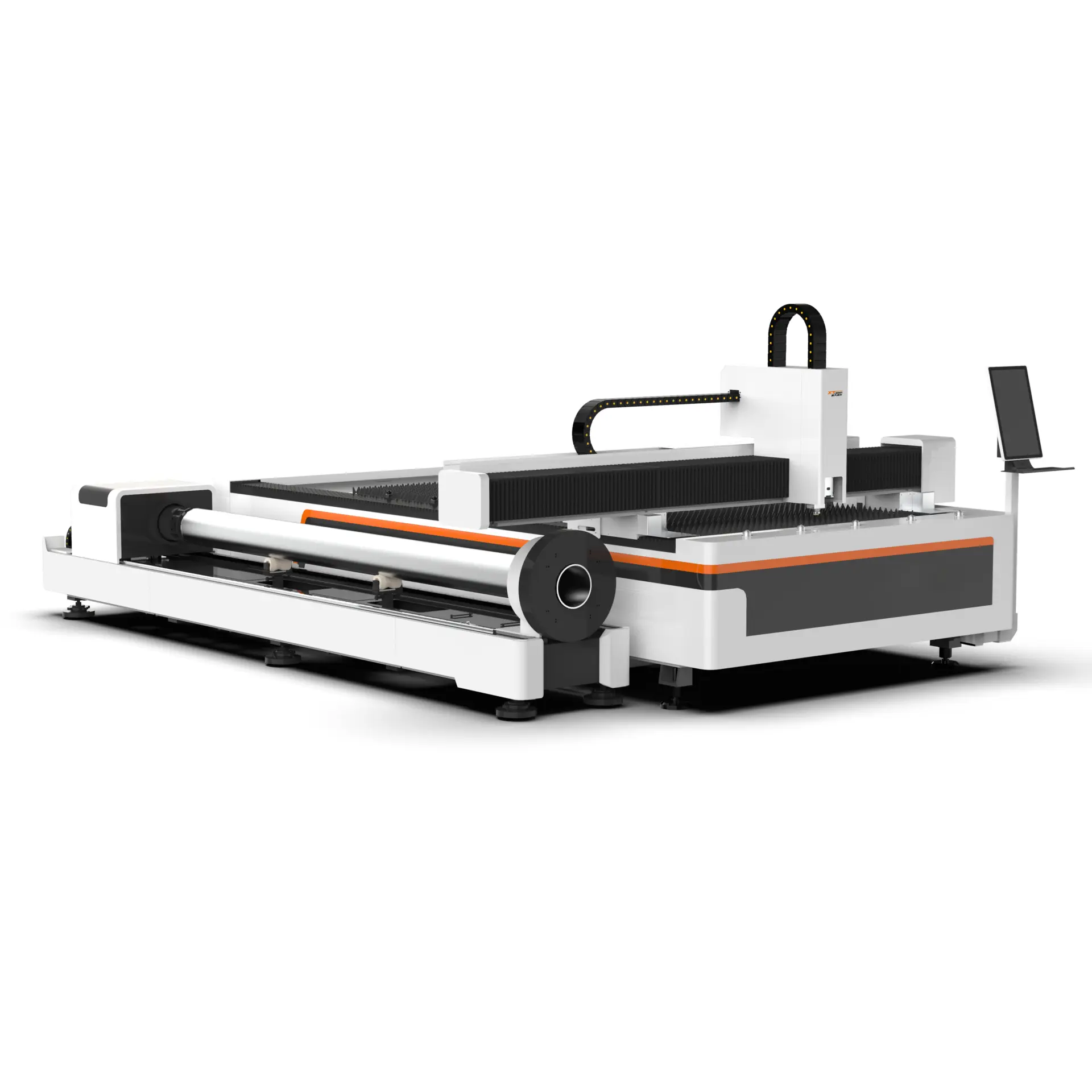

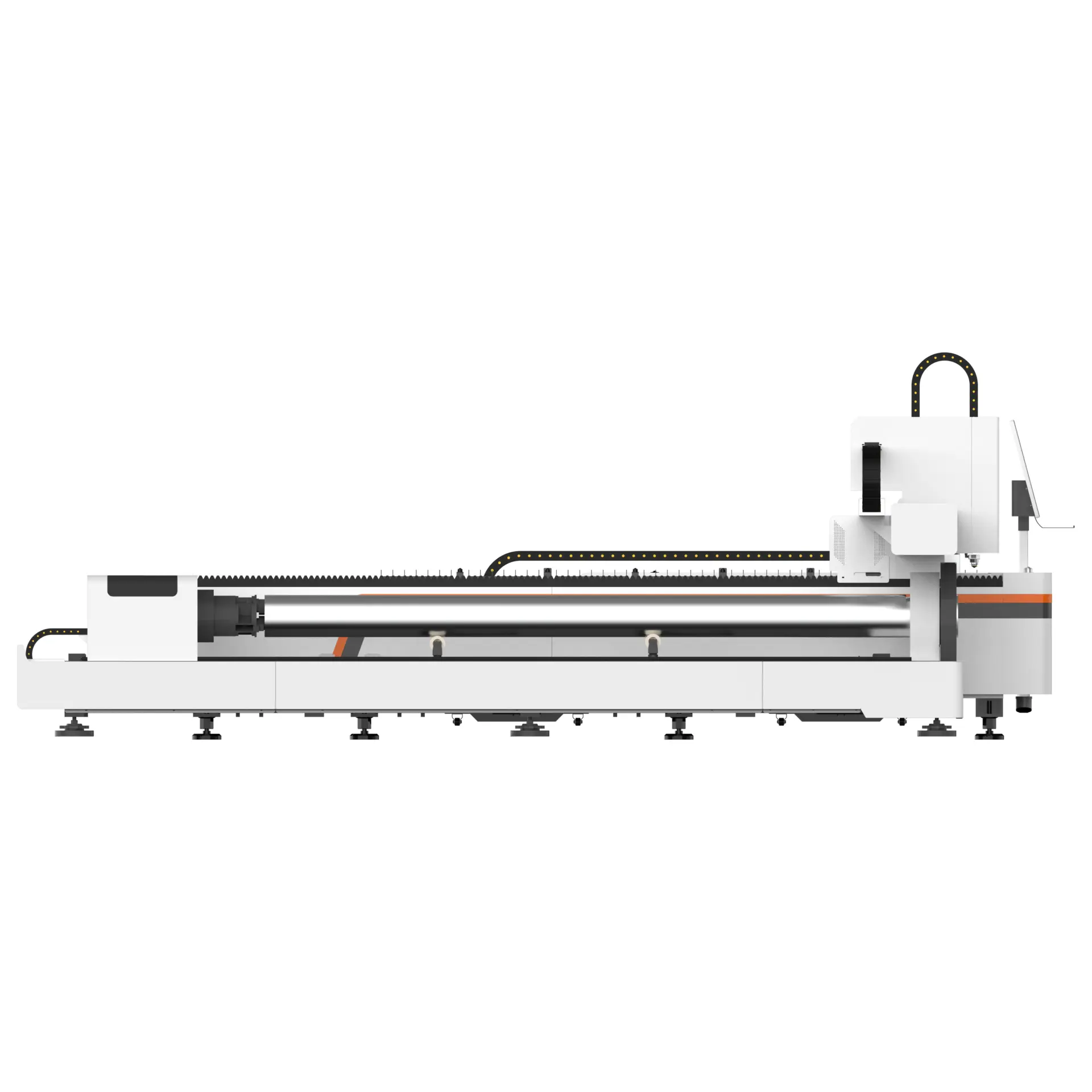

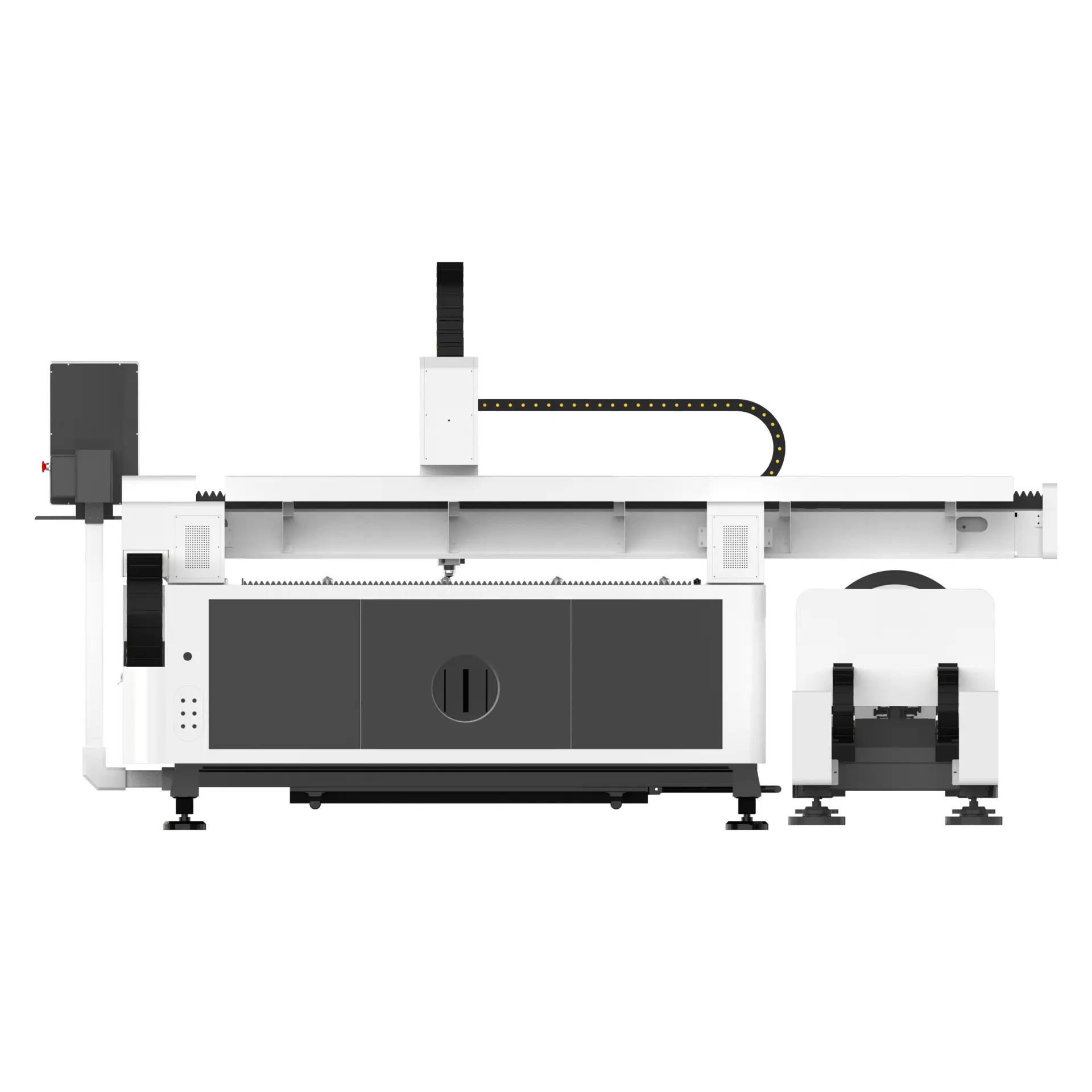

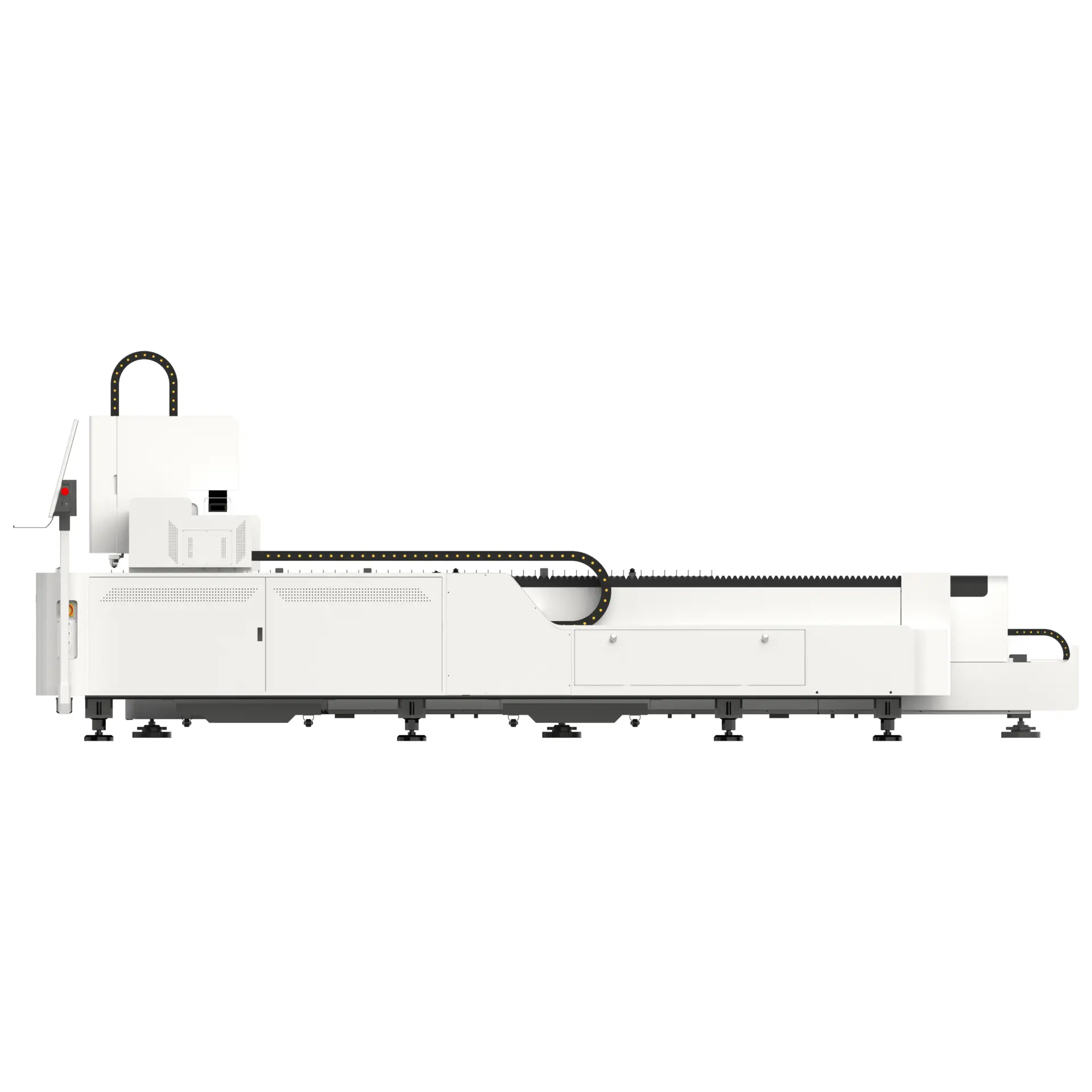

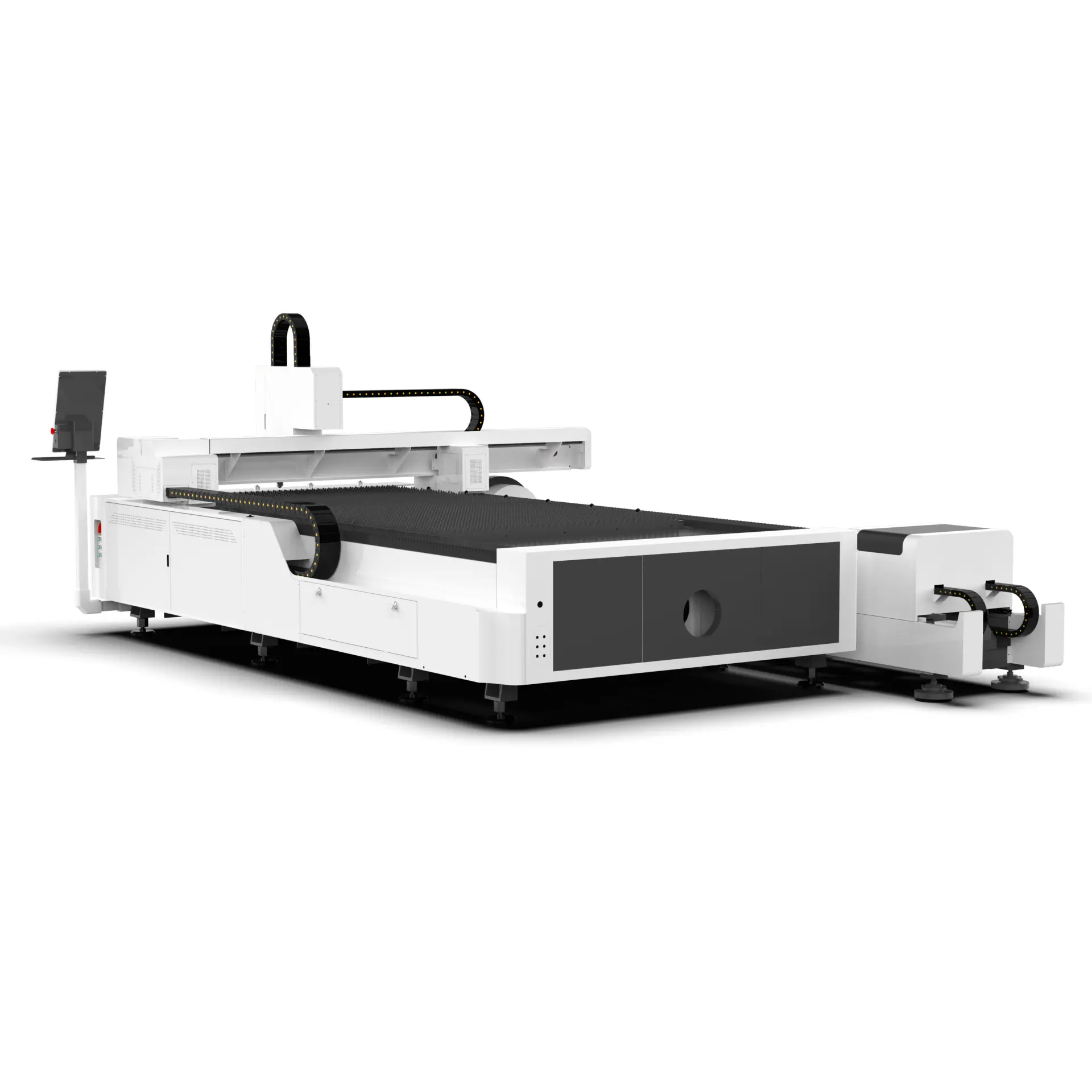

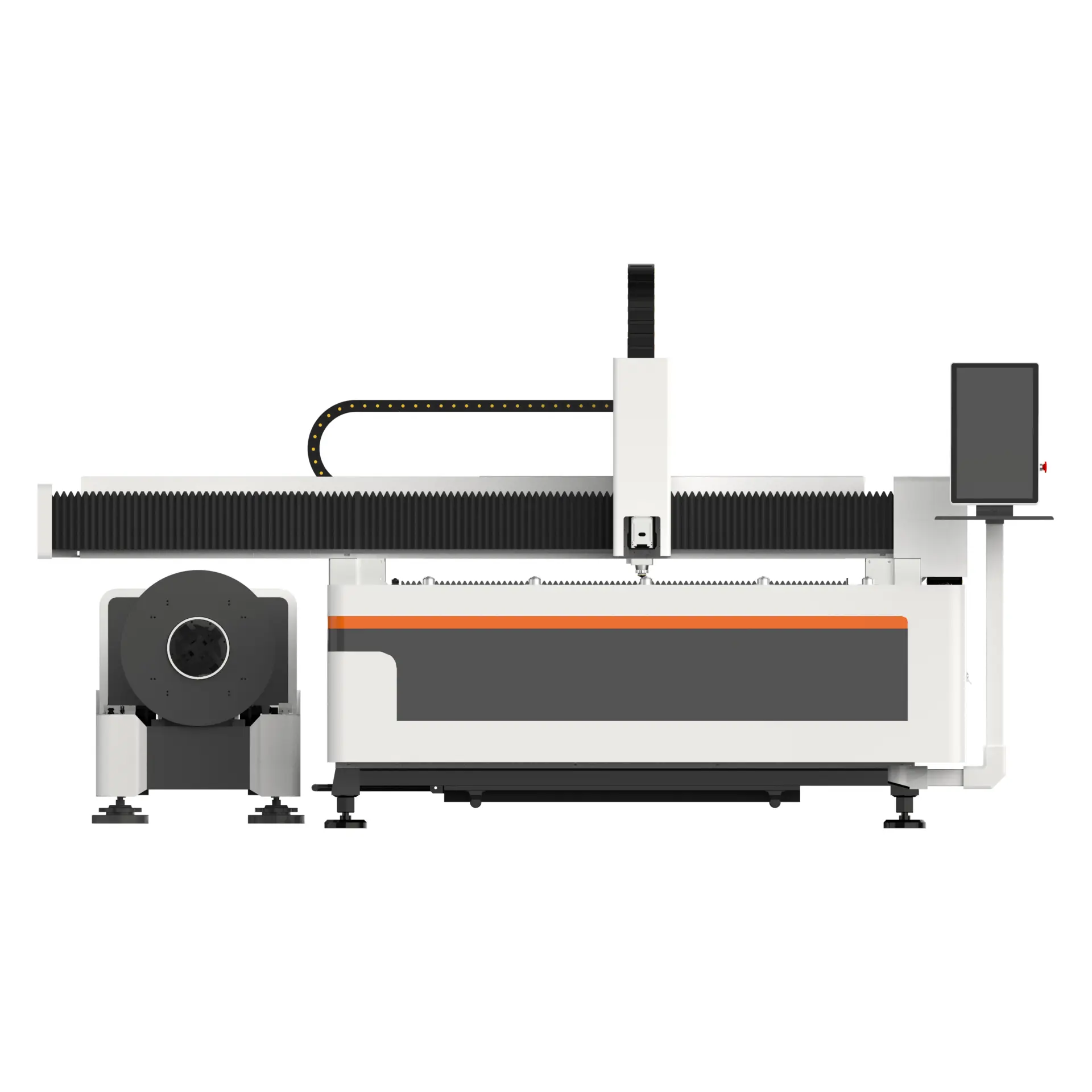

The WT Series Single-Platform Integrated Plate and Tube Laser Cutting Machine is a versatile flagship solution for industrial metal fabrication. It seamlessly combines metal sheet cutting and tube processing capabilities in one machine, supporting high-power configurations up to 12000W. Whether you need to process standard flat plates or complex profiles like round, square, or rectangular tubes, the WT Series delivers exceptional efficiency with linkage speeds up to 100m/min.
By integrating two functions into a single platform, this machine significantly reduces equipment procurement costs and saves valuable workshop floor space, making it an ideal upgrade for modern smart manufacturing.
Core Technical Highlights
1. Three-Dimensional Anti-Torsion Welded Bed
Utilizing a multi-point through-the-body anti-torsion structure combined with high-strength welding technology, the machine bed is engineered to resist deformation under long-term, high-intensity operations, ensuring lifelong stability and extreme cutting precision.
2. Multi-Position Covering Flexible Support
Equipped with high-end snail roller devices, the system supports the workpiece from three sides. This ensures smooth feeding and comprehensive anti-shake control, which significantly improves the surface quality of the tube cuts.
3. High Load Capacity & Low Inertia System
Standard tube load capacity is 500kg (T360 model), with an optional heavy-duty configuration supporting up to 1200kg. It handles heavy-walled tubes with ease while maintaining instantaneous response and high-speed precision positioning.
4. Eco-Friendly “Hurricane” Extraction System
The cutting area features a centralized, targeted extraction design. The powerful airflow rapidly removes dust and metal fumes, creating a clean, green, and smoke-free working environment.
5. Chuck Safety Clamping & Locking Technology
Advanced pneumatic clamping and self-locking technology ensures that the chuck maintains its grip even during unexpected power loss. This keeps the workpiece securely fixed and guarantees the safety of both the operator and the equipment.
6. Modular Anti-Slag Table & Independent Control Cabinet
- Anti-Slag Countertop: Designed with ergonomic blade spacing to minimize slag buildup, making routine maintenance effortless.
- Independent Electrical Cabinet: A freestanding design allows for flexible placement and uniform heat dissipation, ensuring stable 24/7 operation even in harsh industrial environments.
Technical Specifications Table
● Standard Configuration ○ Optional Configuration × No Configuration Required
| Item | Sub-item | W1530T | W1560T | W2040T | W2060T | W2560T |
|---|---|---|---|---|---|---|
| Basic Information | Processing Area | 1530×3050 mm | 1530×6100 mm | 2030×4050 mm | 2030×6100 mm | 2540×6100 mm |
| Table Load Capacity | ≤6kw (950kg) 25mm 12kw (1850kg) 50mm |
≤6kw (1850kg) 25mm 12kw (3600kg) 50mm |
≤6kw (1650kg) 25mm 12kw (3200kg) 50mm |
≤6kw (2450kg) 25mm 12kw (4900kg) 50mm |
≤6kw (3050kg) 25mm 12kw (6000kg) 50mm |
|
| Machine Weight (Varies by power) | 3550kg (160 chuck) 3700kg (240 chuck) |
5250kg (160 chuck) 5400kg (240 chuck) |
4550kg (160 chuck) 4700kg (240 chuck) |
5450kg (160 chuck) 5600kg (240 chuck) |
6350kg (160 chuck) 6500kg (240 chuck) |
|
| Max. Linkage Speed | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | |
| Max. Acceleration | 0.8G | 0.8G | 0.8G | 0.8G | 0.8G | |
| Tube Cross-section Shape | Round / Square / Rectangular | Round / Square / Rectangular | Round / Square / Rectangular | Round / Square / Rectangular | Round / Square / Rectangular | |
| Tube Size Range (Dual Pneumatic) | T160: Round: Φ10-Φ160mm | Square: □10-□160mm | Rectangular: Long side ≤160mm T240: Round: Φ10-Φ240mm | Square: □10-□240mm | Rectangular: Long side ≤240mm |
T160: Round: Φ10-Φ160mm | Square: □10-□160mm | Rectangular: Long side ≤160mm T240: Round: Φ10-Φ240mm | Square: □10-□240mm | Rectangular: Long side ≤240mm |
T160: Round: Φ10-Φ160mm | Square: □10-□160mm | Rectangular: Long side ≤160mm T240: Round: Φ10-Φ240mm | Square: □10-□240mm | Rectangular: Long side ≤240mm |
T160: Round: Φ10-Φ160mm | Square: □10-□160mm | Rectangular: Long side ≤160mm T240: Round: Φ10-Φ240mm | Square: □10-□240mm | Rectangular: Long side ≤240mm |
T160: Round: Φ10-Φ160mm | Square: □10-□160mm | Rectangular: Long side ≤160mm T240: Round: Φ10-Φ240mm | Square: □10-□240mm | Rectangular: Long side ≤240mm |
|
| Max. Processable Tube Length | 6m | 6m | 6m | 6m | 6m | |
| Max. Tube Weight | T160: 160Kg (27Kg/m) T240: 300Kg (50Kg/m) |
T160: 160Kg (27Kg/m) T240: 300Kg (50Kg/m) |
T160: 160Kg (27Kg/m) T240: 300Kg (50Kg/m) |
T160: 160Kg (27Kg/m) T240: 300Kg (50Kg/m) |
T160: 160Kg (27Kg/m) T240: 300Kg (50Kg/m) |
|
| Max. Unloading Length | 1m | 1m | 1m | 1m | 1m | |
| Min. Tailing Length | ● 300mm (Normal) ● 90mm (Over-travel) |
● 300mm (Normal) ● 90mm (Over-travel) |
● 300mm (Normal) ● 90mm (Over-travel) |
● 300mm (Normal) ● 90mm (Over-travel) |
● 300mm (Normal) ● 90mm (Over-travel) |
|
| Total Machine Power (Inc. fan) | Total Power / Current (with 12KW laser) | 55KW/104A | 55KW/104A | 55KW/104A | 55KW/104A | 55KW/104A |
| Total Power / Current (with 6KW laser) | 34KW/68A | 34KW/68A | 34KW/68A | 34KW/68A | 34KW/68A | |
| Total Power / Current (with 3KW laser) | 22KW/32A | 22KW/32A | 22KW/32A | 22KW/32A | 22KW/32A | |
| Mechanical Configuration | Gantry Structure | Aluminum Profile Gantry | Aluminum Profile Gantry | Aluminum Profile Gantry | Aluminum Profile Gantry | Aluminum Profile Gantry |
| Guide Rail | Guide Rail | Guide Rail | Guide Rail | Guide Rail | Guide Rail | |
| Gear Rack | Gear Rack | Gear Rack | Gear Rack | Gear Rack | Gear Rack | |
| Plate Cutting Section Servo Motor & Drive | Bus Servo Motor (X:1KW Y:1.5KW Z:0.75KW) |
Bus Servo Motor (X:1KW Y:1.5KW Z:0.75KW) |
Bus Servo Motor (X:1KW Y:1.5KW Z:0.75KW) |
Bus Servo Motor (X:1KW Y:1.5KW Z:0.75KW) |
Bus Servo Motor (X:1KW Y:2KW Z:0.75KW) |
|
| Tube Cutting Section Servo Motor & Drive | Bus Servo Motor (Front: 2Kw, Rear: 1.5Kw, Feed: 1.5Kw) |
Bus Servo Motor (Front: 2Kw, Rear: 1.5Kw, Feed: 1.5Kw) |
Bus Servo Motor (Front: 2Kw, Rear: 1.5Kw, Feed: 1.5Kw) |
Bus Servo Motor (Front: 2Kw, Rear: 1.5Kw, Feed: 1.5Kw) |
Bus Servo Motor (Front: 2Kw, Rear: 1.5Kw, Feed: 1.5Kw) |
|
| Reducer | Reducer | Reducer | Reducer | Reducer | Reducer | |
| Automatic Lubrication | ● (Tube cutting is manual) | ● (Tube cutting is manual) | ● (Tube cutting is manual) | ● (Tube cutting is manual) | ● (Tube cutting is manual) | |
| Chuck | ● Standard | ● Standard | ● Standard | ● Standard | ● Standard | |
| Chuck Control Mode | ● Pneumatic Chuck | ● Pneumatic Chuck | ● Pneumatic Chuck | ● Pneumatic Chuck | ● Pneumatic Chuck | |
| Electrical Configuration | Main Electrical Config | ● Domestic / Overseas brands | ● Domestic / Overseas brands | ● Domestic / Overseas brands | ● Domestic / Overseas brands | ● Domestic / Overseas brands |
| Control System + Cutting Head | ● <6KW 3000DE-M + B3 Series ● ≥6KW 3000DE-M + B4 Series |
● <6KW 3000DE-M + B3 Series ● ≥6KW 3000DE-M + B4 Series |
● <6KW 3000DE-M + B3 Series ● ≥6KW 3000DE-M + B4 Series |
● <6KW 3000DE-M + B3 Series ● ≥6KW 3000DE-M + B4 Series |
● <6KW 3000DE-M + B3 Series ● ≥6KW 3000DE-M + B4 Series |
|
| Nesting Software | ○ | ○ | ○ | ○ | ○ | |
| Auxiliary Configuration | Water Chiller | Water Chiller | Water Chiller | Water Chiller | Water Chiller | Water Chiller |
| Dust Removal Equipment | Same as plate cutting section | Same as plate cutting section | Same as plate cutting section | Same as plate cutting section | Same as plate cutting section | |
| Optional Configuration | Dust Collector (Default without fan) | ○ Dust Collector (See selection table) | ○ Dust Collector (See selection table) | ○ Dust Collector (See selection table) | ○ Dust Collector (See selection table) | ○ Dust Collector (See selection table) |
| WIFI Function | ○ | ○ | ○ | ○ | ○ | |
| Air Compressor | ○ Air Compressor (See selection table) | ○ Air Compressor (See selection table) | ○ Air Compressor (See selection table) | ○ Air Compressor (See selection table) | ○ Air Compressor (See selection table) | |
| Voltage Regulator | ○ Voltage Regulator (See selection table) | ○ Voltage Regulator (See selection table) | ○ Voltage Regulator (See selection table) | ○ Voltage Regulator (See selection table) | ○ Voltage Regulator (See selection table) | |
| Independent Electrical Cabinet | ○ | ○ | ○ | ○ | ○ | |
| Safety Goggles | ● (Overseas) ○ (Domestic) |
● (Overseas) ○ (Domestic) |
● (Overseas) ○ (Domestic) |
● (Overseas) ○ (Domestic) |
● (Overseas) ○ (Domestic) |
|
| Foundation Plate & Expansion Bolts | ○ | ○ | ○ | ○ | ○ |

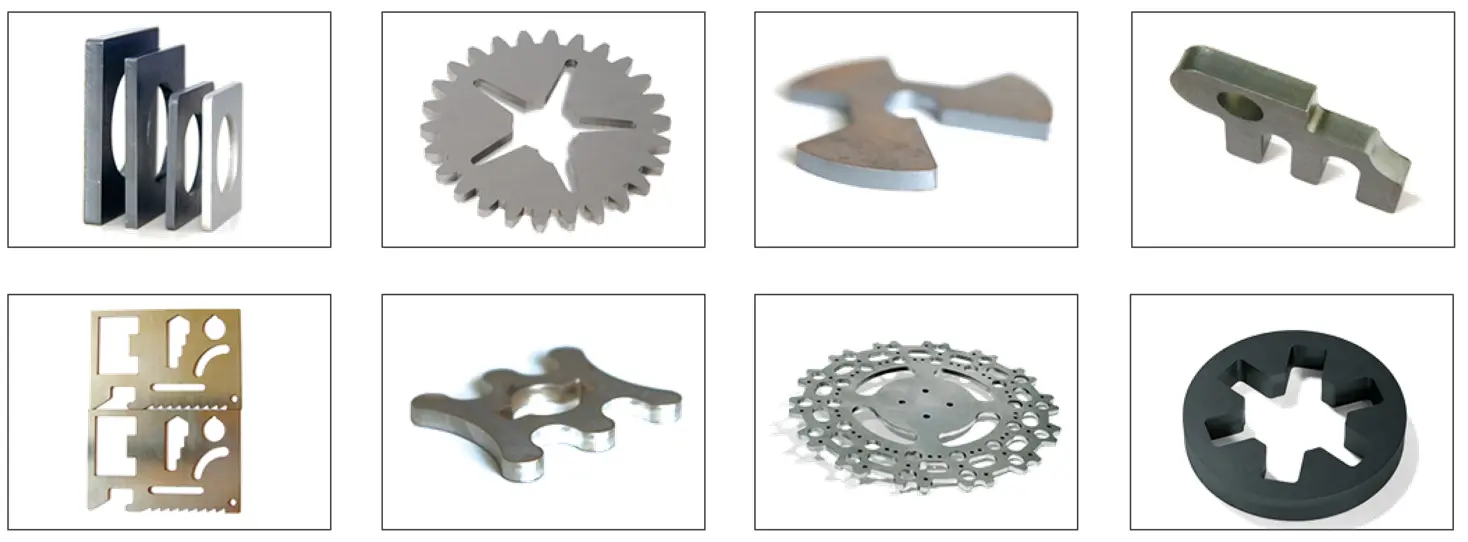

Industry Applications
The WT Series is widely used across various industries requiring high-standard metal fabrication:
- Automotive: Parts processing, chassis frames, and exhaust pipe cutting.
- Advertising: Metal lettering, display racks, and architectural structures.
- Construction Machinery: Heavy steel plate cutting and mechanical components.
- Elevator Manufacturing: Stainless steel panels and structural cabin parts.
- Kitchenware: Hardware, stainless steel utensils, and ventilation ducting.
- Medical Devices: High-precision cutting for medical stents and frames.
