| Series |
Elite PanelMaster Series (High-End/Panel Saw) |
| Model |

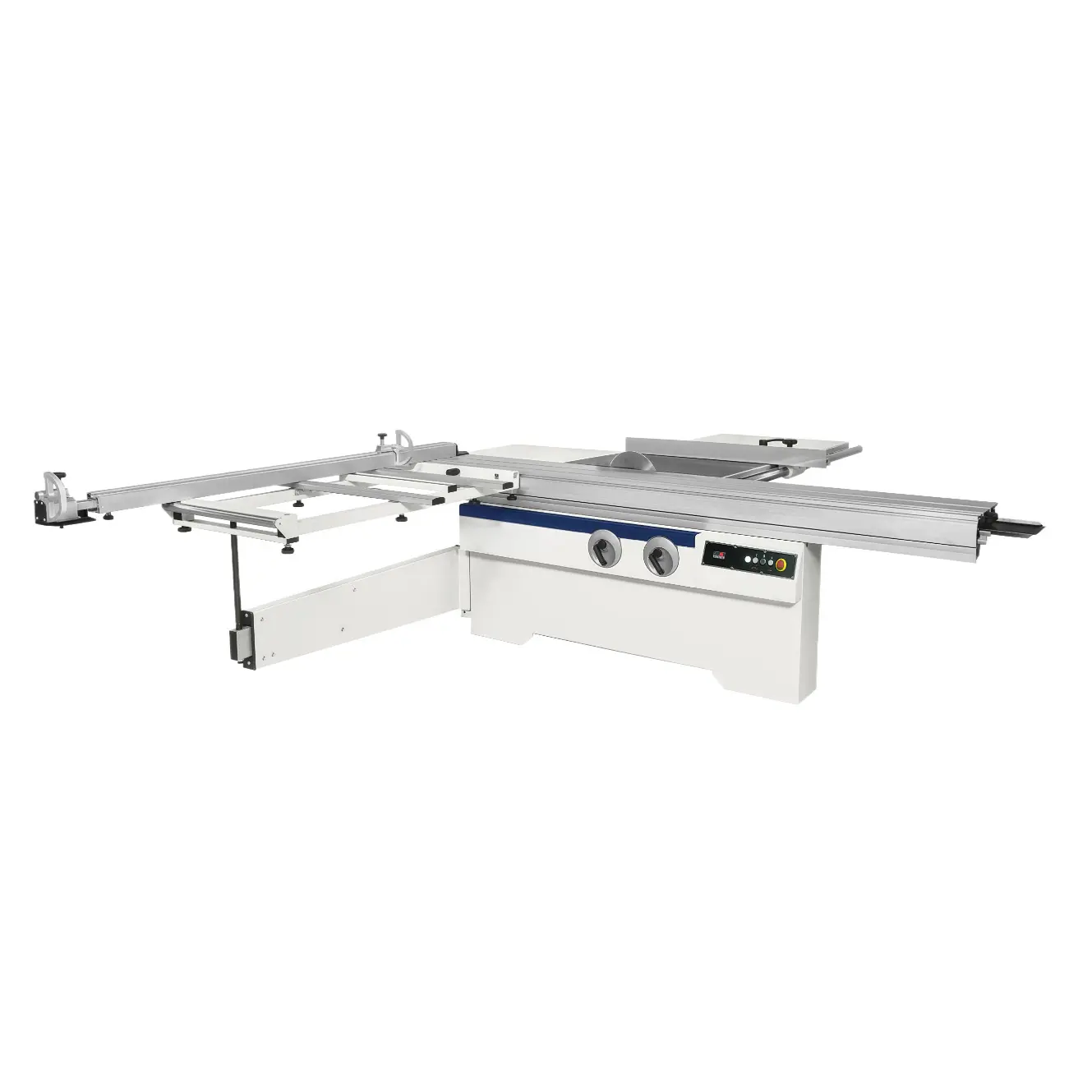

Model 400 |
| Focus |
Maximum capacity, precision, and automation for large sheet goods. |
| Blade Size |
Ø 400 mm |

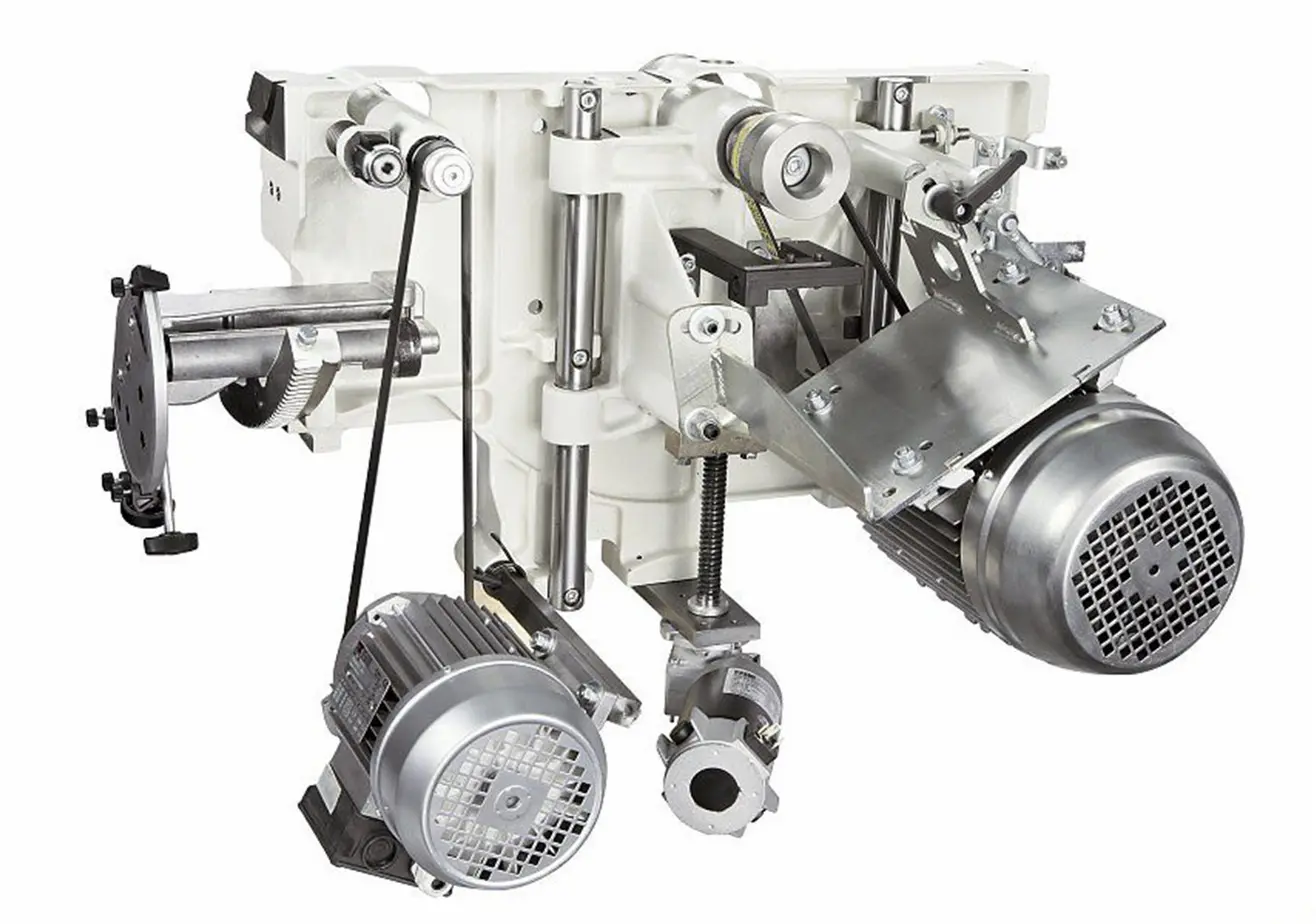

| Saw Unit |
 |
The time-tested, cast iron unit offers not only maximum power and precision, but also extreme smooth running and efficiency, 400 mm saw blade diameter. |
| Tilt & Height Adjustment |
400 Handwheel drive |
The main machine is equipped with handwheels, and all adjustments must be completed manually. |
| 400X motion |
Electronic adjustment is used for the height of the saw blade, while the 0-45 degree adjustment of the saw blade is done via handwheel. |
| 400E Electron |
Both the height and the tilt angle of the saw blade are adjusted electronically. |
| Sliding Table Unit |
|
|
| Rip Fence |
Table scale as standard; optional electronic digital display and fine adjustment. |
| Crosscut Fence |
Crosscut scale as standard; optional digital display and CNC crosscut fence. |
| Target User |
Large-scale cabinetry shops, industrial manufacturers, and high-volume plywood/MDF processing facilities. |
|
— Sliding Table Options — |
| Pneumatic Workpiece Holder |
|
| On/Off Switch on Sliding Table |
Optional |
 |
| Crosscut Fence on Sliding Table |
Standard |
 |
|
— Crosscut Fence Options — |
| Electronic Crosscut Fence |
Optional |
|
| Fixed 90° Crosscut Fence |
Standard |
 |
| Crosscut-Mitre Fence |
Standard |
 |
| Digital Display |
Optional |
 |
|
— Rip Fence Options — |
| CNC Rip Fence |
|
 |
| Manual Fine Adjustment |
|
 |
| Digital Display |
|
 |
| Scale |
|
|
