HD-K4 Automatic Loading and Unloading CNC Machine
HD-K4 Automatic Loading and Unloading CNC Machine - Image 2

HD-K4 Automatic Loading and Unloading CNC Machine

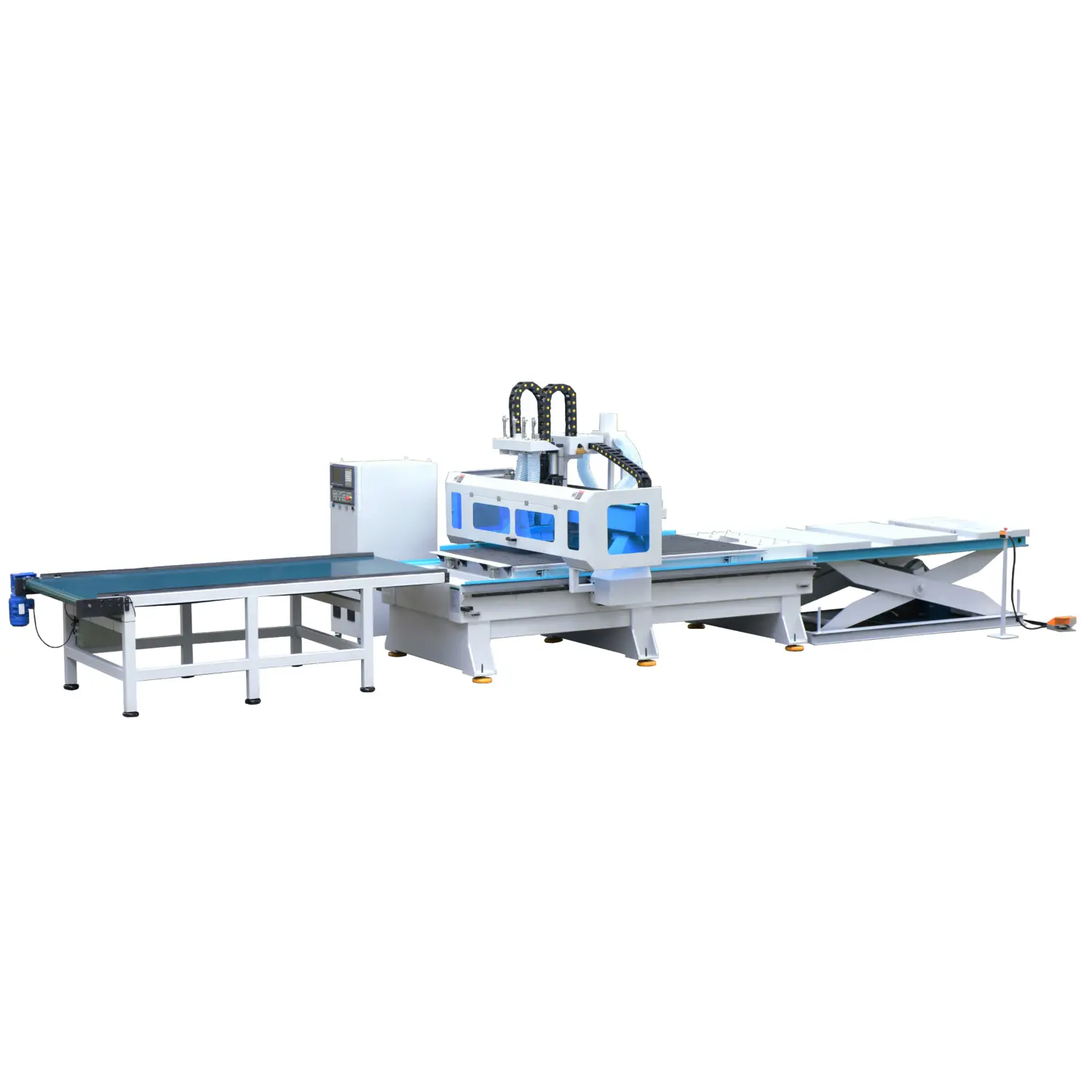

The HD-K4 Automatic Loading and Unloading CNC Machine is a high-efficiency processing center designed specifically for manufacturing panel furniture, cabinet wardrobes, office furniture, and custom furniture. This advanced machine maximizes productivity through a continuous operation workflow that includes automatic feeding, optimized material opening, vertical hole drilling, and automatic material cutting.

Equipped with premium imported components, the HD-K4 features an Italian high-power HQD 9KW spindle , an 8-tool magazine , and an Italian 5+4 vertical drilling package. It operates on a high-precision Taiwan SYNTEC CNC system and utilizes powerful Delta servo motors , ensuring a maximum processing speed of 60 m/min and a repeat positioning accuracy of 0.02 mm. Additionally, the machine incorporates reliable French Schneider Electric components for enhanced durability. Designed with a user-friendly control interface , the HD-K4 allows operators to work efficiently with only simple training , making it an ideal solution to achieve a significant leap in manufacturing productivity.

Category:

Product Enquiry

Description

Product Specifications

Feature / Component Specification / Description
Control System Taiwan’s SYNTEC CNC system (Resolution of 0.002 mm, with analog display)
Control Panel Industrial control panel (More stable than computer control)
Motors Delta servo motor (X and Y axis: 1300W, Z axis: 800W with brake motor)
Spindle HQD 9KW spindle, automatic tool switching
Tool Magazine 8 tools magazines
Drill Bank Italian HQD5+4 row drill
Machine Bed Precision casting bed, secondary tempering
Coupling Imported flexible coupling
Linear Guide (All axes) Taiwan PMI four-row steel ball linear guide
Transmission Z axis: Taiwan PMI precision screw
X & Y axis: Helical gear
Inverter Simphoenix vector inverter
Positioning Cylinder TAIWAN AirTAC positioning cylinder
Hand Wheel Precision hand wheel
Electrical Components Schneider Electric, France
Working Stroke (X, Y, Z) 1220 × 2440 × 200 mm
Workbench Load 1000 kg
Maximum Processing Speed 60 m/min
Maximum Cutting Speed 20 m/min
Repeat Positioning Accuracy 0.02 mm
Vacuum Pump 5.5KW dry vacuum pump (ensures 50mm workpiece can be sucked and processed)
Lubrication System Automatic refueling system
Total Power Supply 16 kW
Machine Weight 3,500 kg
Working Voltage 380V 50HZ

Applicable Industries

Suitable for panel furniture, cabinet wardrobes, office furniture, and custom furniture manufacturing.

Key Features & Work Process

  • Efficiency: Features automatic feeding, optimized material opening, vertical hole drilling, automatic material cutting, and continuous operation to maximize productivity.
  • Ease of Use: Features a user-friendly machine control interface; operators can begin working with simple training.

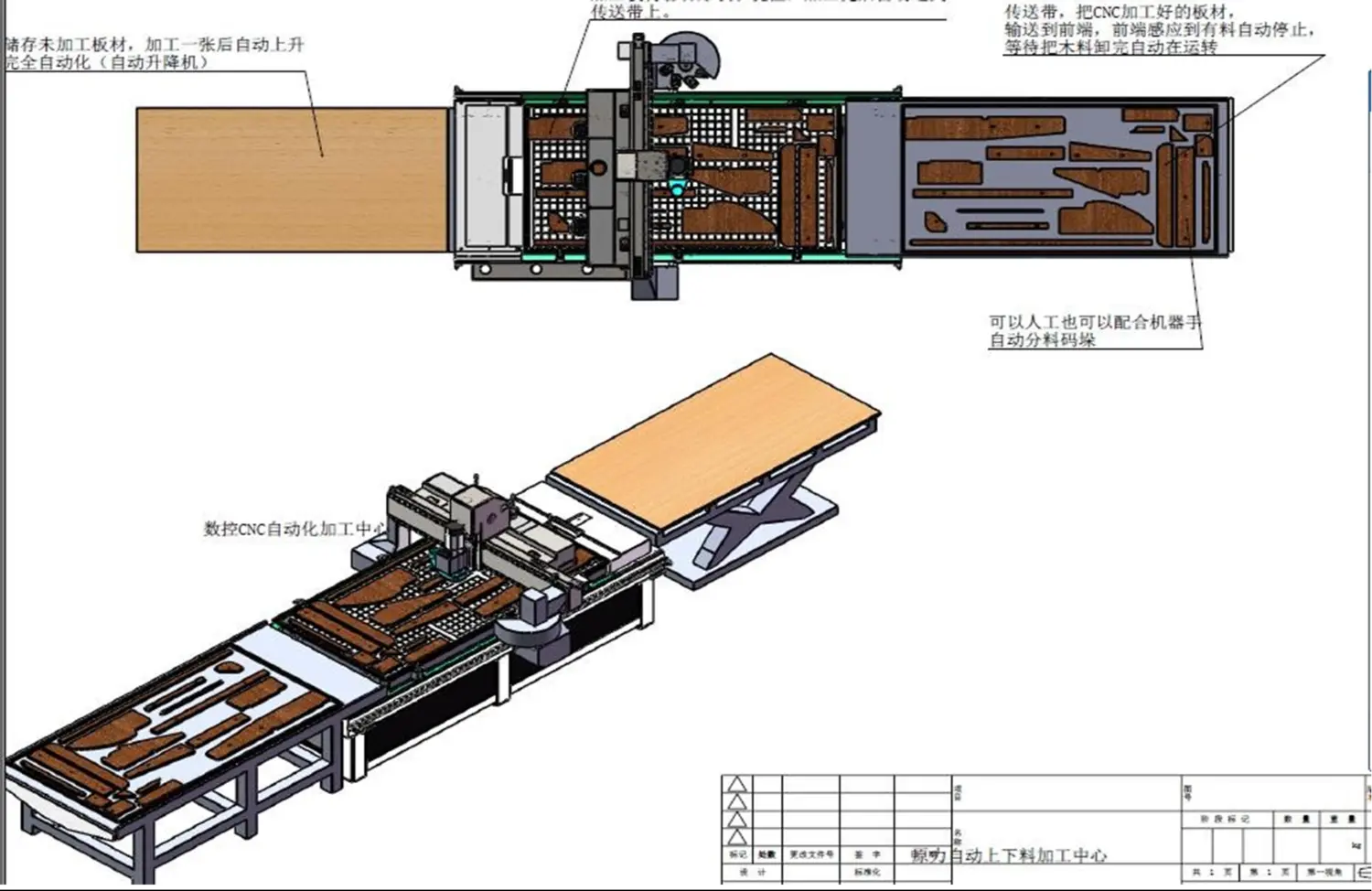

  • Workflow Automation: Supports automatic typesetting software, stacking, optional barcode printing, machine dragging/feeding, side positioning, CNC machining, and automatic material pushing.

Preparation & Site Requirements

  • Site: The factory gate must be at least 4 meters high and 4 meters wide. The floor must be clean and flat, allowing for a 0.5 m safe operating distance around the machine.
  • Electricity: 380V AC voltage requires a proper distribution box, a ground wire, and a voltage regulator to guarantee a stable working voltage.
  • Personnel: Operators should have at least a junior high school education, basic computer and machinery knowledge, and the ability to use professional drawing software (training is provided by the company).
  • Additional Equipment: Customers must equip a dust vacuum cleaner to prevent damage to machine parts, appropriate processing tools based on their products, and necessary safety gear (gloves, overalls, work shoes, fire extinguishers).
  • Material Workflow: Proper stacking points and handling plans must be set up according to the processing material requirements.
