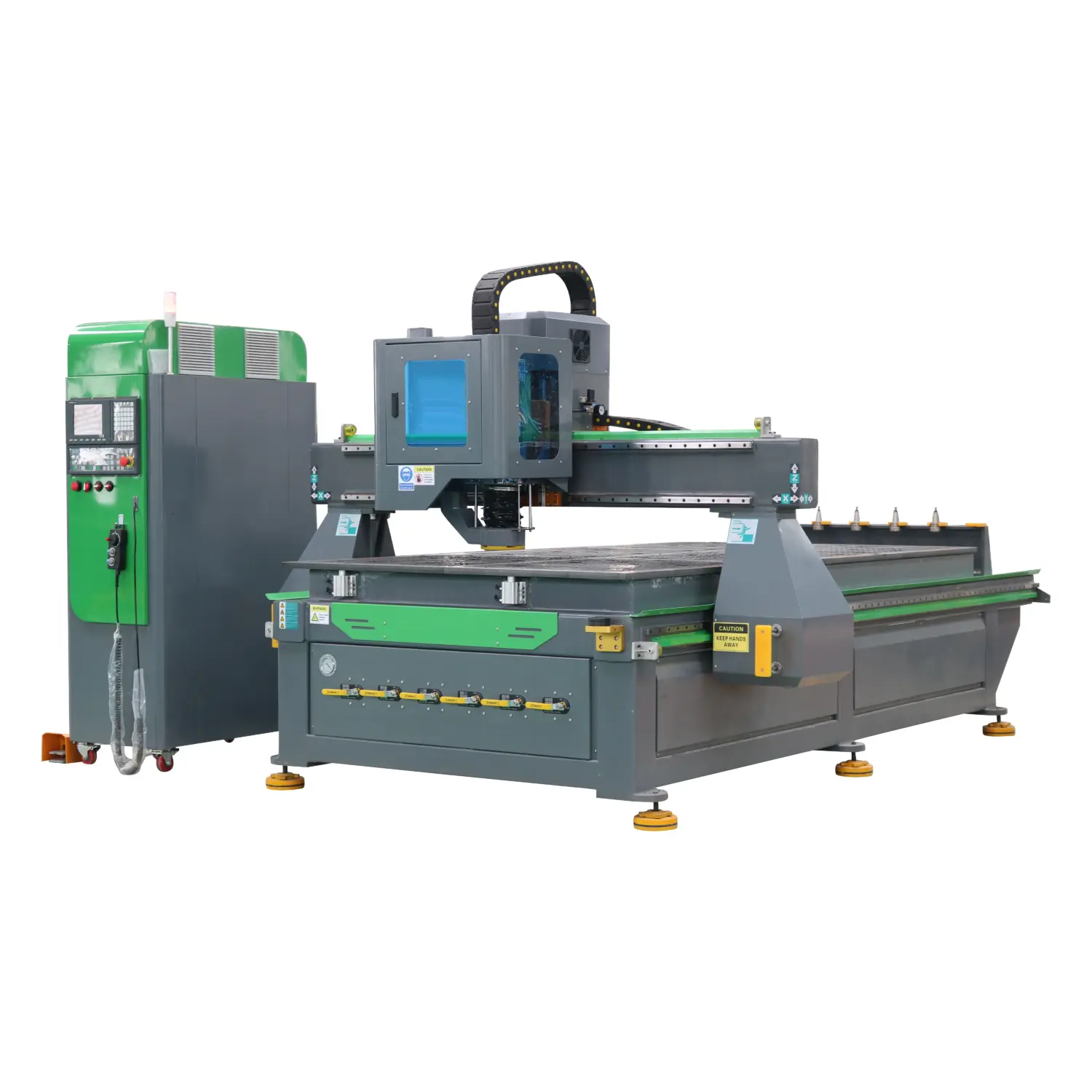

Product Specifications: 1325CE Linear ATC CNC Router
| Feature / Component | Specification | Additional Notes |
|---|---|---|

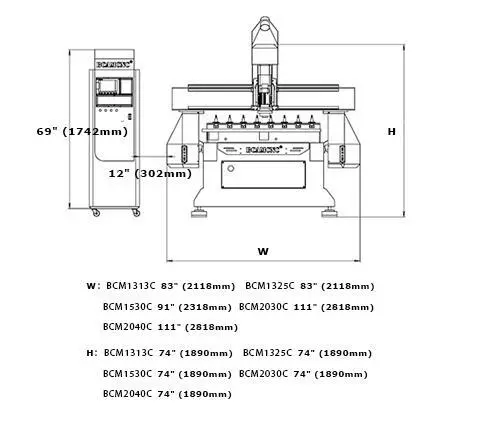

| Product Name & Model | 1325CE (Linear ATC) | Z-axis travel: 200mm; Working Area: 1300 * 2500mm |
| Working Voltage | 380V / 3 Phase / 50HZ | |
| Control System | NK105 G3 | |

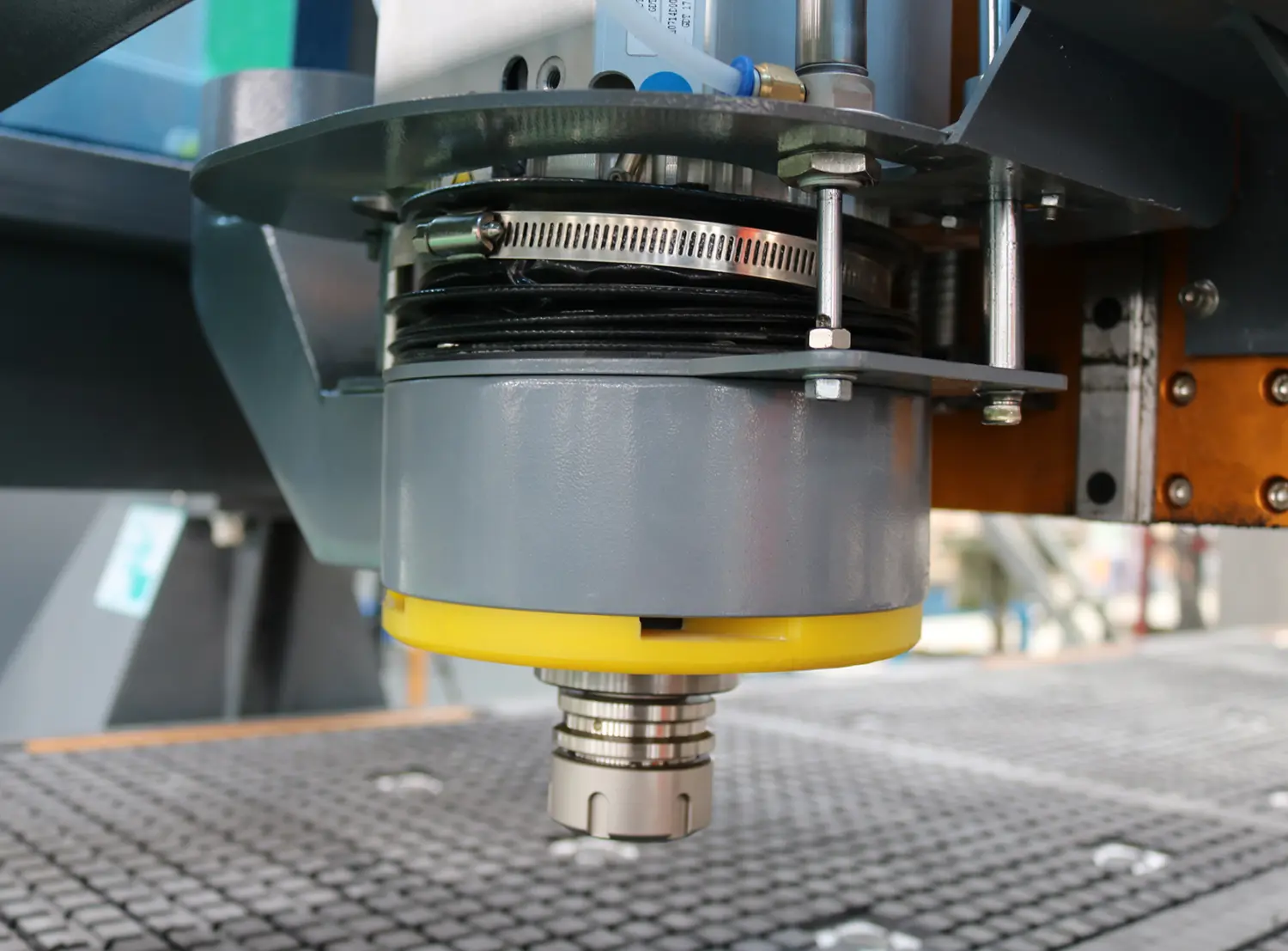

| Spindle Motor | HQD 9KW ATC Spindle | Automatic Tool Changer Spindle |
| Inverter | Delta 11KW Inverter (VDF-MS) | Includes braking resistor. Note: Custom voltages incur extra charges based on wattage. |
| Motor & Driver | Japan YASKAWA 750W Servo | Z-axis includes a brake; no reducer |
| Guide Rail | Taiwan TBI | |
| Bed Structure | Welded frame bed | Bed and leg plate thickness is 6mm or above |

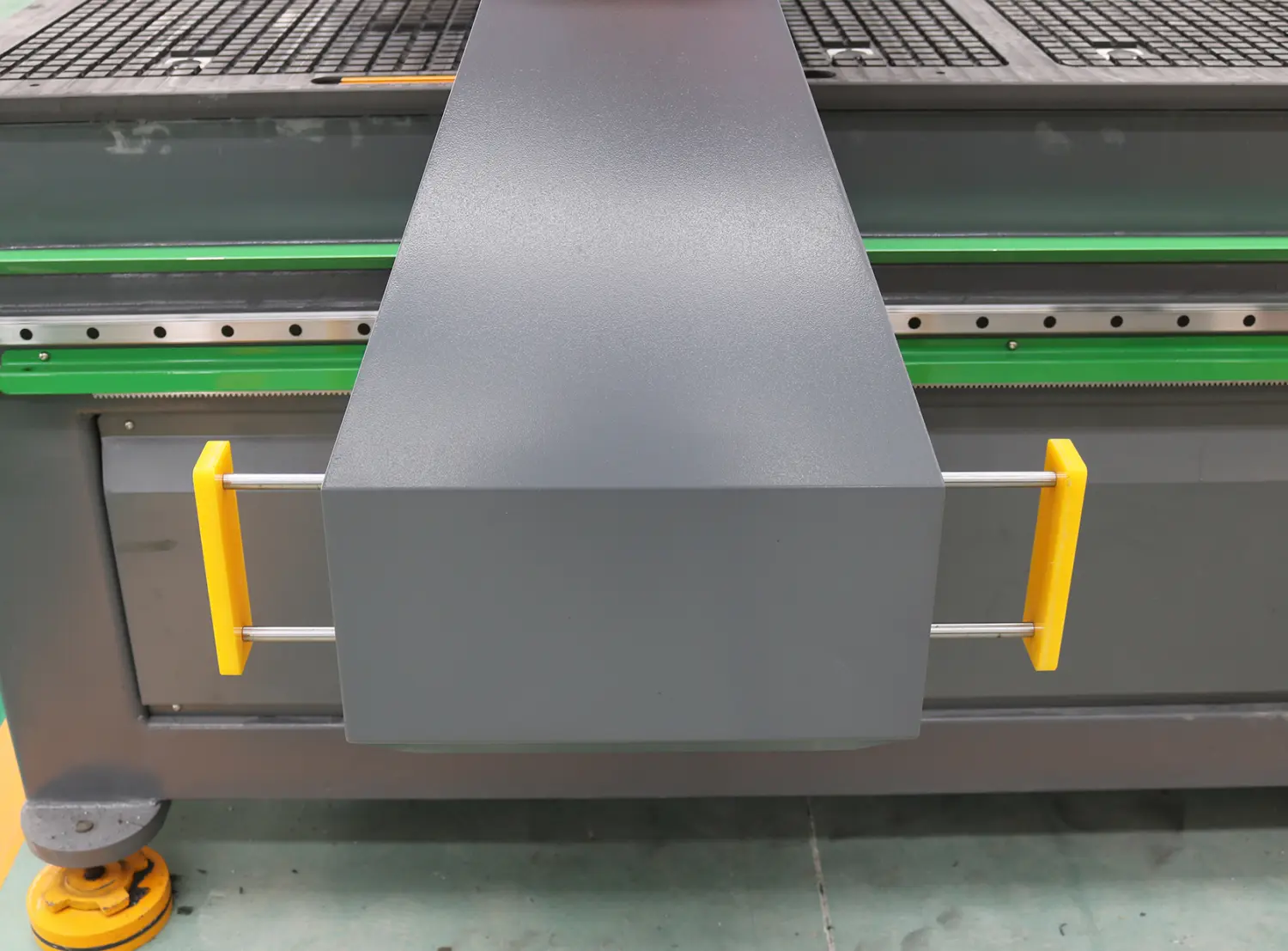

| Gantry Structure | Standard steel gantry | Features welded iron columns |
| Table Structure | Single-layer table | No pneumatic positioning cylinders |
| Transmission | X/Y Axis: Xinyu Helical Rack (1.5M) Z Axis: 205 Ball Screw |
|

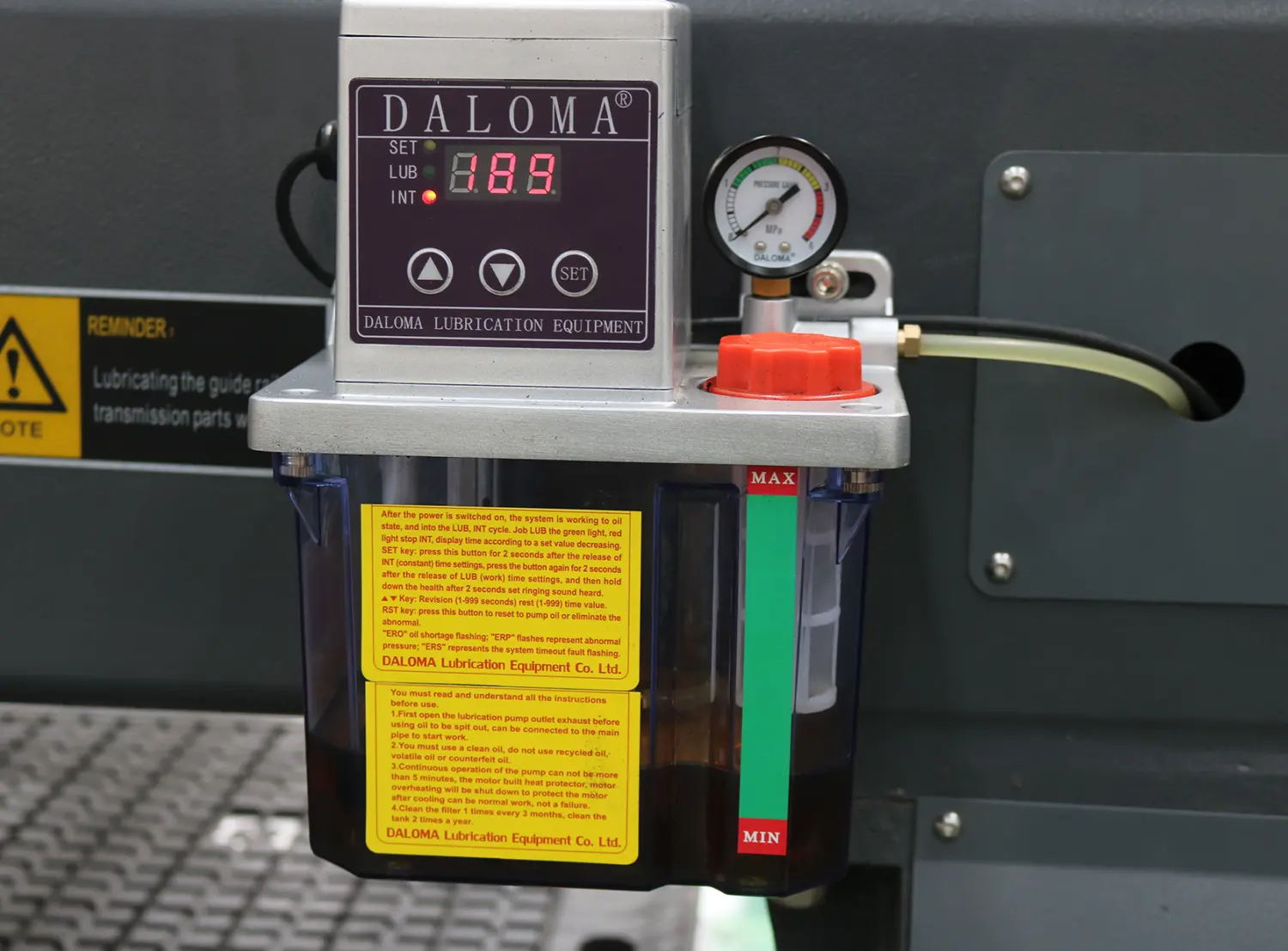

| Lubrication System | Automatic oil lubrication | Uses Great Wall #46 hydraulic oil (white oil) |
| Machine Color | Gray-Green | Standard configuration |
| Vacuum Pump | None | |
| Dust Collection | 3.0KW Double-barrel Dust Collector | 380V / 3 Phase / 50HZ |
| Transformer | Dry-type transformer | |

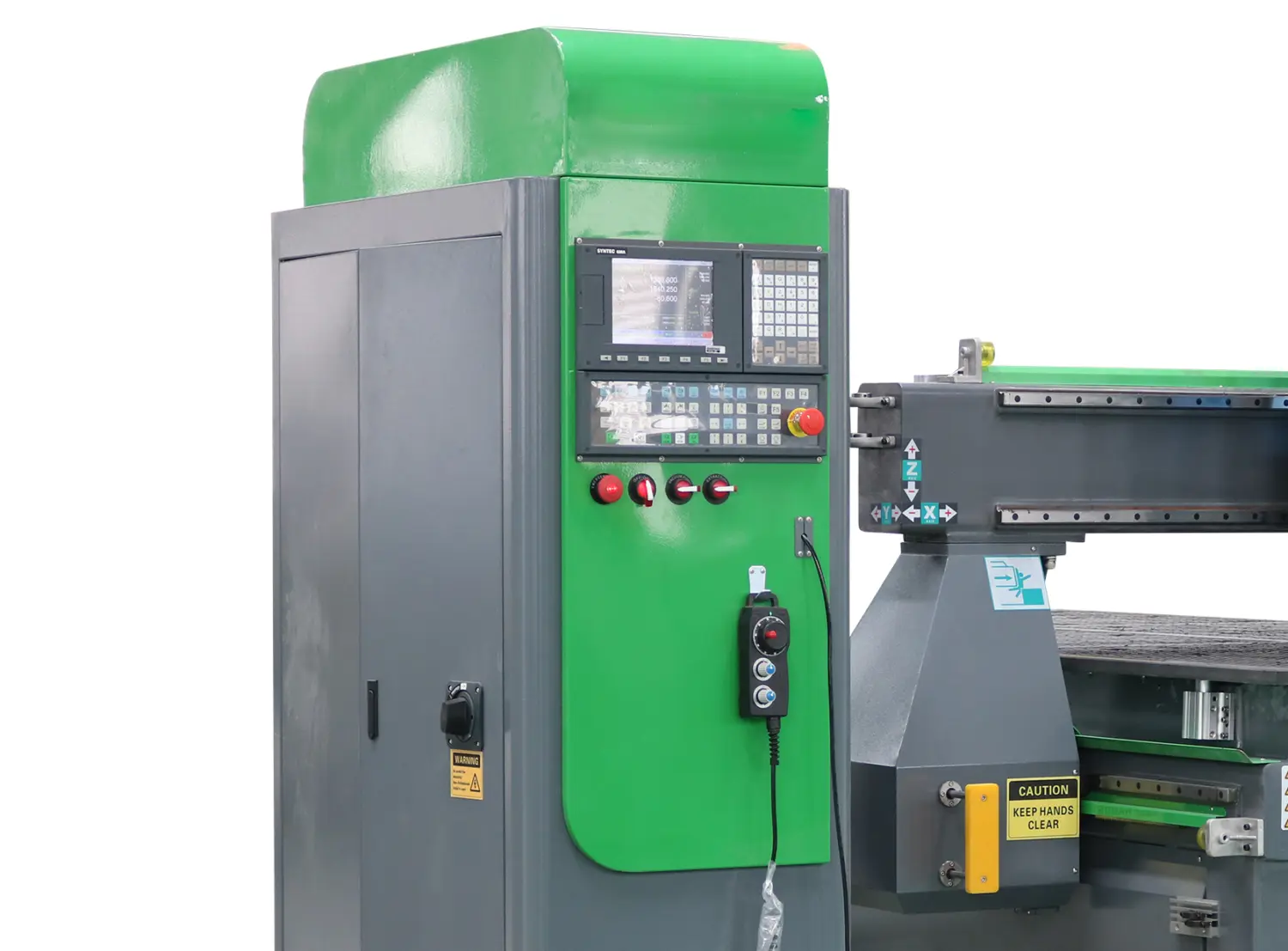

| Control Cabinet | Built-in electrical box | |

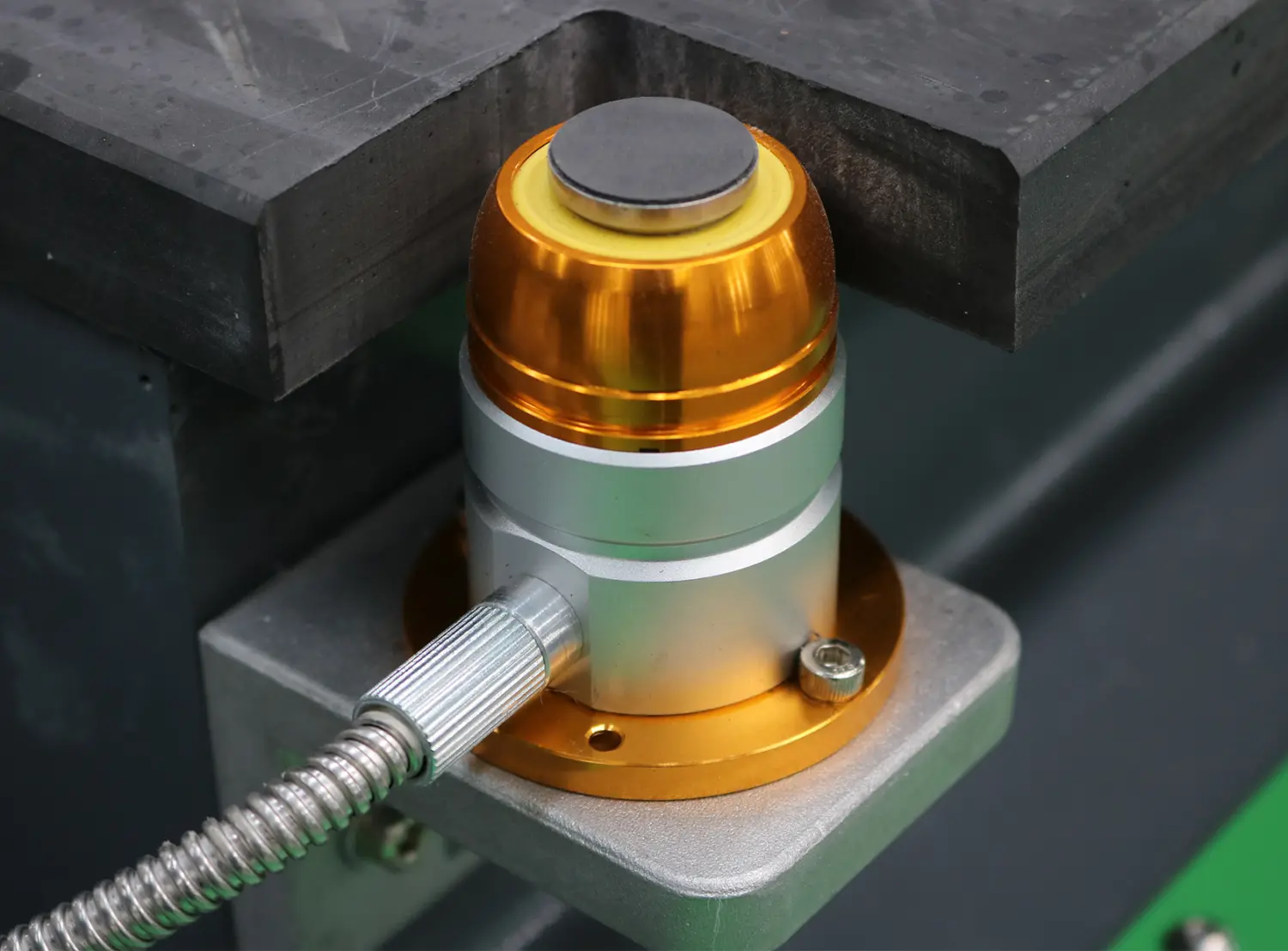

| Tool Calibration | Automatic Tool Setter | |

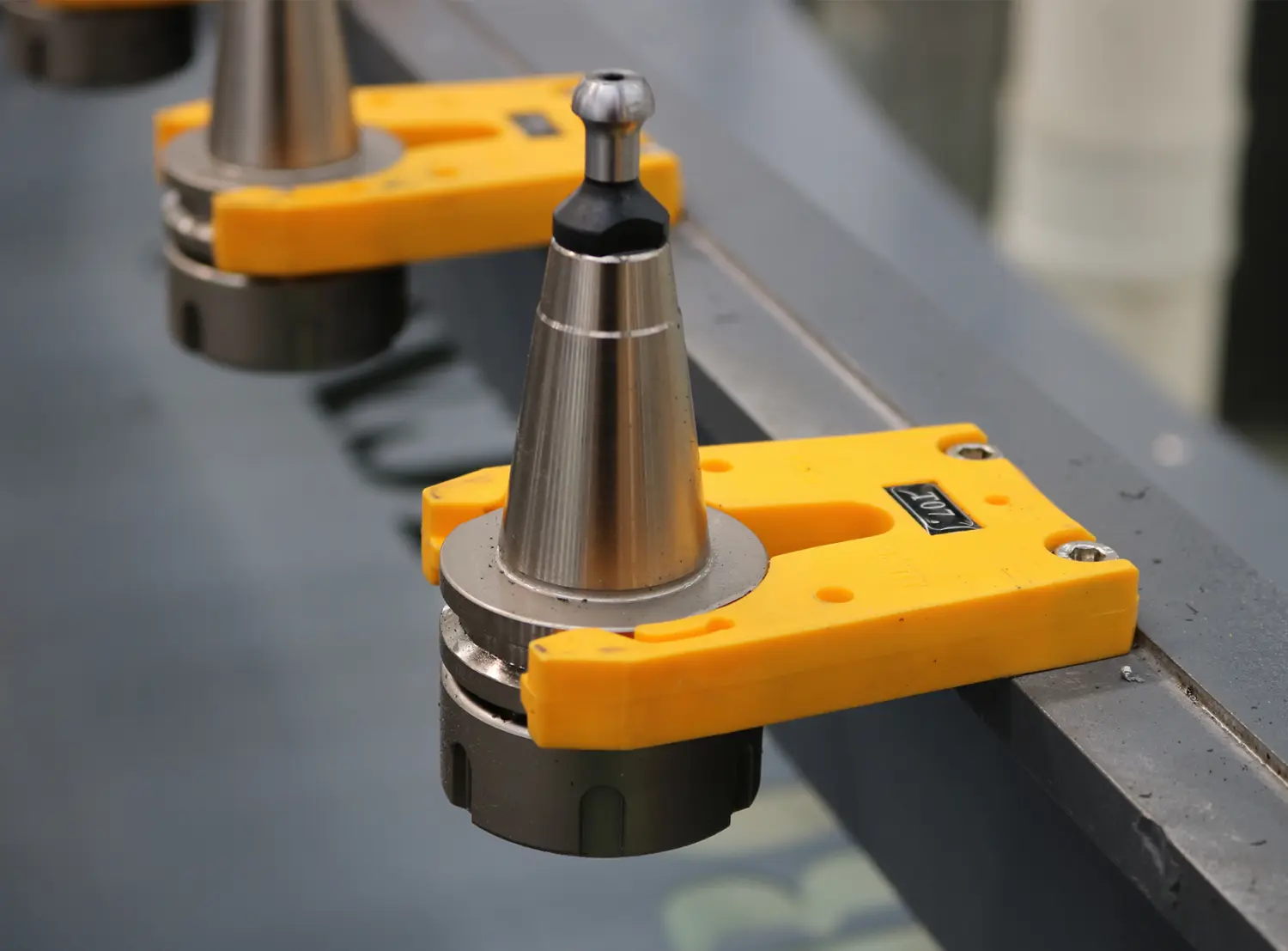

| Tool Magazine | 8-Position Linear Tool Changer | |
| Logo | BCAM logo | |
| Machine Markings | English safety warning slogans |
