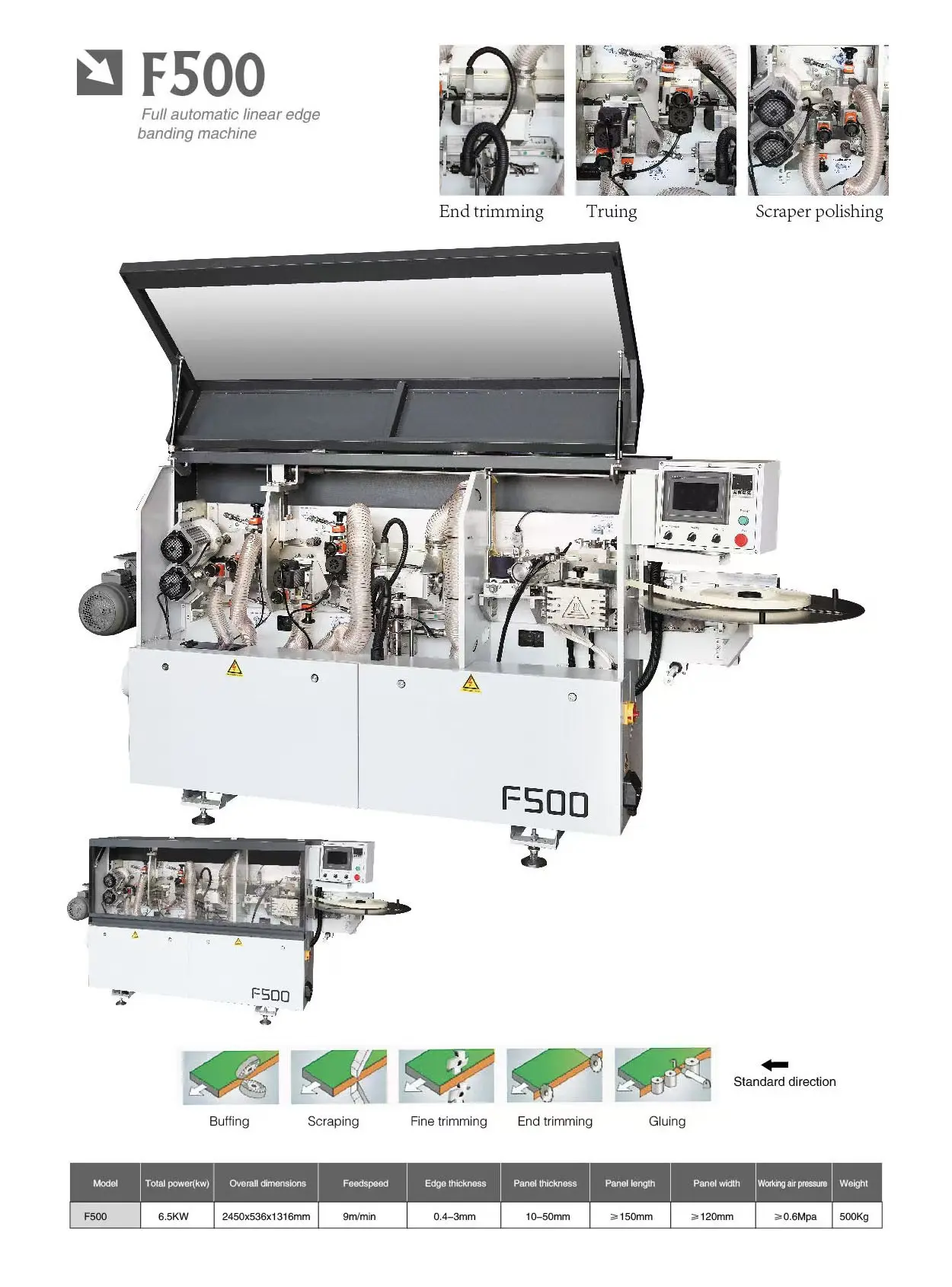

Description

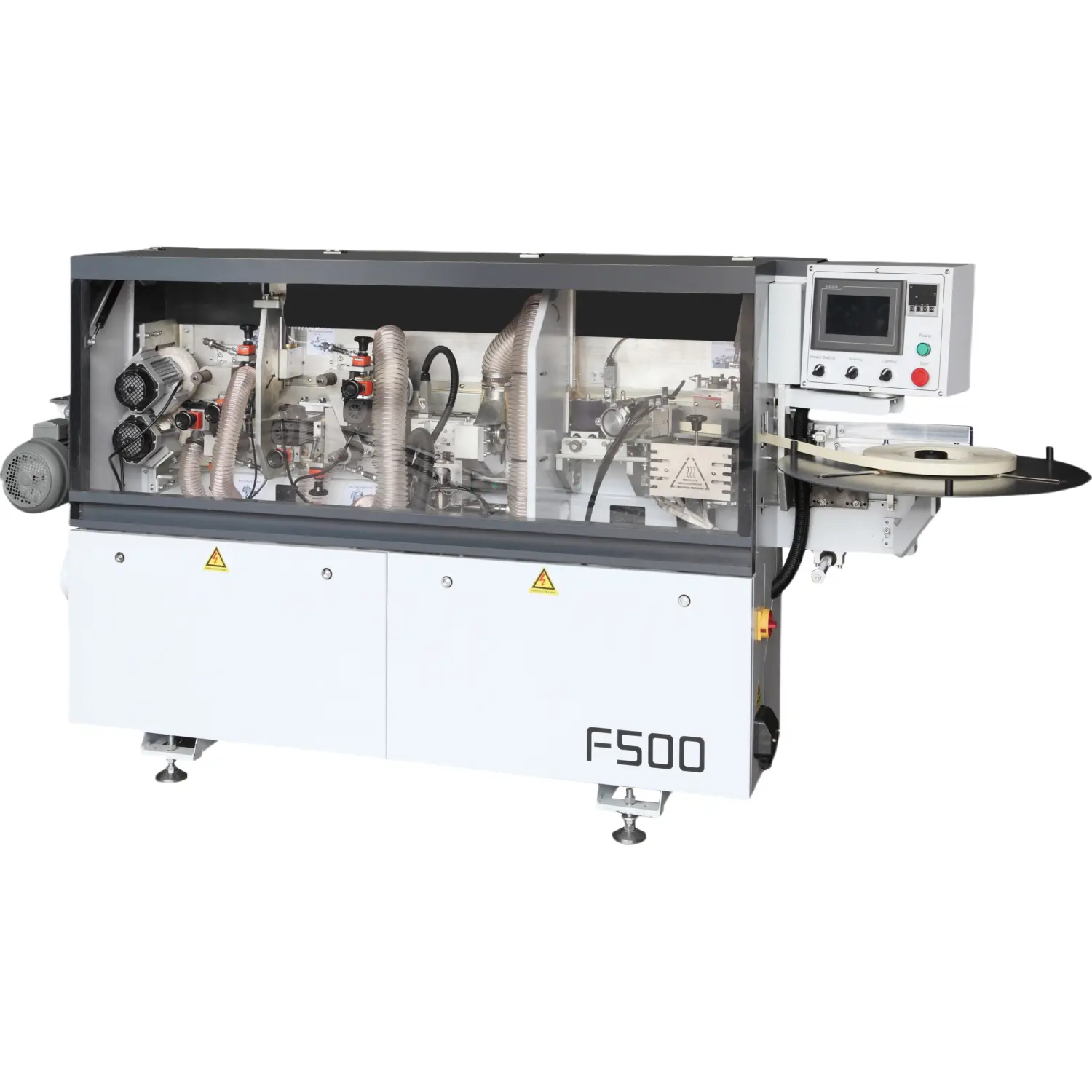

The F500 Automatic Edgebander is an essential solution for modern panel furniture manufacturing. Engineered for automation, high efficiency, and superior precision, this machine guarantees an aesthetically flawless finish on every panel.
Because edgebanding directly impacts the durability, value, and overall grade of your final product, the F500 is built to deliver perfect adhesion and smooth finishing. Trusted by domestic and international furniture manufacturers, it significantly enhances the appearance and quality of custom cabinetry, wardrobes, and commercial paneling.

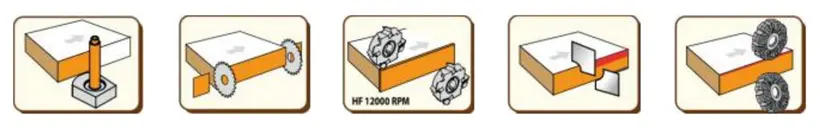

Operating Stations (Standard Direction)
The F500 is equipped with a comprehensive 5-step processing system to ensure a perfect edge in a single pass:

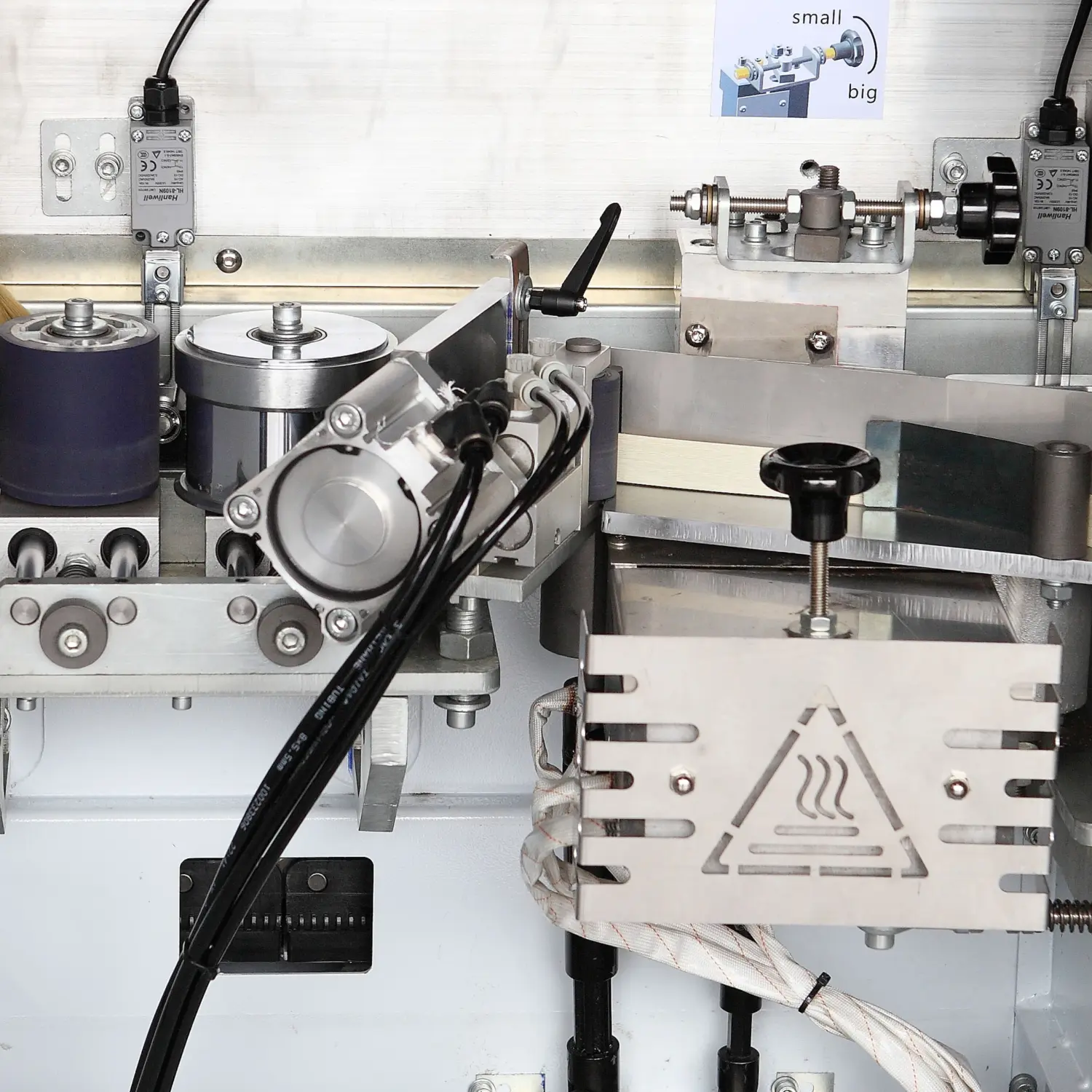

- Gluing: Applies uniform adhesive for a strong, seamless bond.
- End Trimming: Precisely cuts excess edge tape at the leading and trailing edges of the panel.
- Fine Trimming: Mills the top and bottom overhang to sit perfectly flush with the panel surface.
- Scraping: Removes milling marks and smooths the PVC/ABS edge tape.
- Buffing: Cleans and polishes the finished edge, restoring color and shine.
Technical Specifications
| Parameter | Specification |
|---|---|
| Feed Speed | 9 m/min |
| Edge Tape Thickness | 0.4 mm — 3.0 mm |
| Minimum Panel Length | ≥ 150 mm |
| Minimum Panel Width | ≥ 90 mm |
| Working Air Pressure | > 0.6 Mpa |
| Total Motor Power | 6.5 KW |
| Machine Dimensions (L×W×H) | 2450 × 536 × 1316 mm |
| Machine Weight | 500 KG |
Premium Component Configurations
To ensure long-lasting stability and minimal maintenance, the F500 is built using reliable, industry-recognized components:
- Control Interface: Kunluntongtai
- Electrical Components: Delixi
- Pneumatic Systems: EASUN / CC
- Motors & Drives: Ding Shen
