F600 Automatic Edgebander (with Pre-Milling)

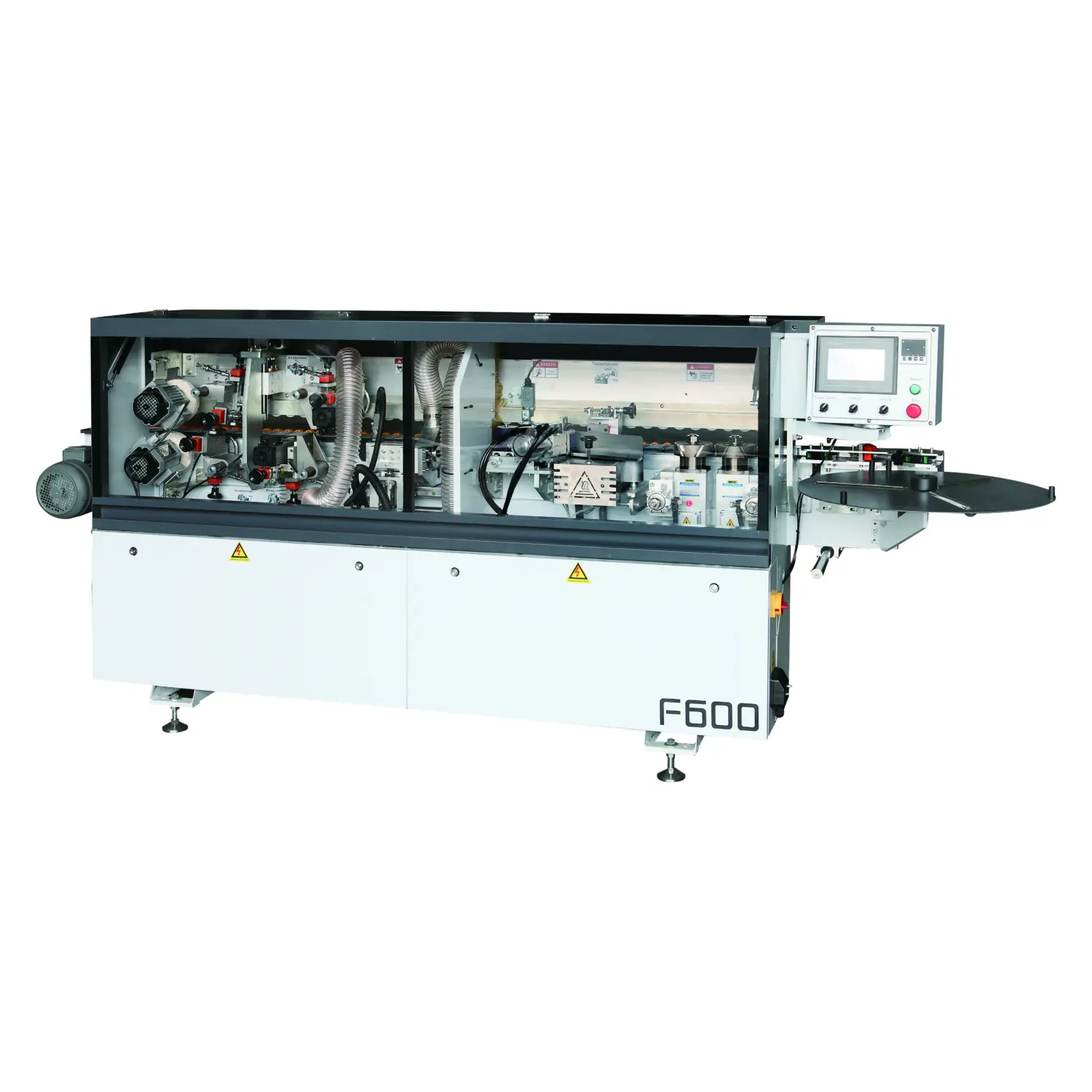

The F600 Automatic Edgebander is an advanced, industrial-grade machine designed to deliver flawless, high-precision edgebanding for modern panel furniture manufacturing. Operating at a steady 9 m/min feed speed, it effortlessly handles edge tape thicknesses from 0.4 mm to 3.0 mm while accommodating more rigorous production requirements.

Key Highlights:

  • Advanced 6-Station Processing: Delivers a premium finish in a single pass through Pre-Milling, Gluing, End Trimming, Fine Trimming, Scraping, and Buffing.
  • Pre-Milling for Perfect Edges: Features a high-speed (12,000 RPM) pre-milling station that squares the panel and removes saw marks before gluing, ensuring a virtually invisible glue line and superior adhesion.
  • Industrial Reliability: Built with a heavy-duty frame (620 KG) and increased total motor power (10.9 KW) to easily manage continuous, high-volume production for custom cabinetry, wardrobes, and commercial paneling.

Category:

Product Enquiry

Description

The F600 Automatic Edgebander is an advanced, industrial-grade solution designed for modern panel furniture manufacturing. Engineered for automation, high efficiency, and superior precision, this machine guarantees an aesthetically flawless finish while accommodating more rigorous production requirements.

Because edgebanding directly impacts the durability, value, and overall grade of your final product, the F600 is built to deliver perfect adhesion and smooth finishing. By incorporating a pre-milling station, it eliminates panel imperfections before gluing, making it the ideal choice for high-end custom cabinetry, wardrobes, and commercial paneling.

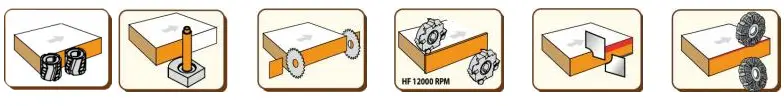

Operating Stations (Standard Direction)

Operating Stations (Standard Direction)

The F600 features an upgraded 6-step processing system to ensure a flawless edge in a single pass:

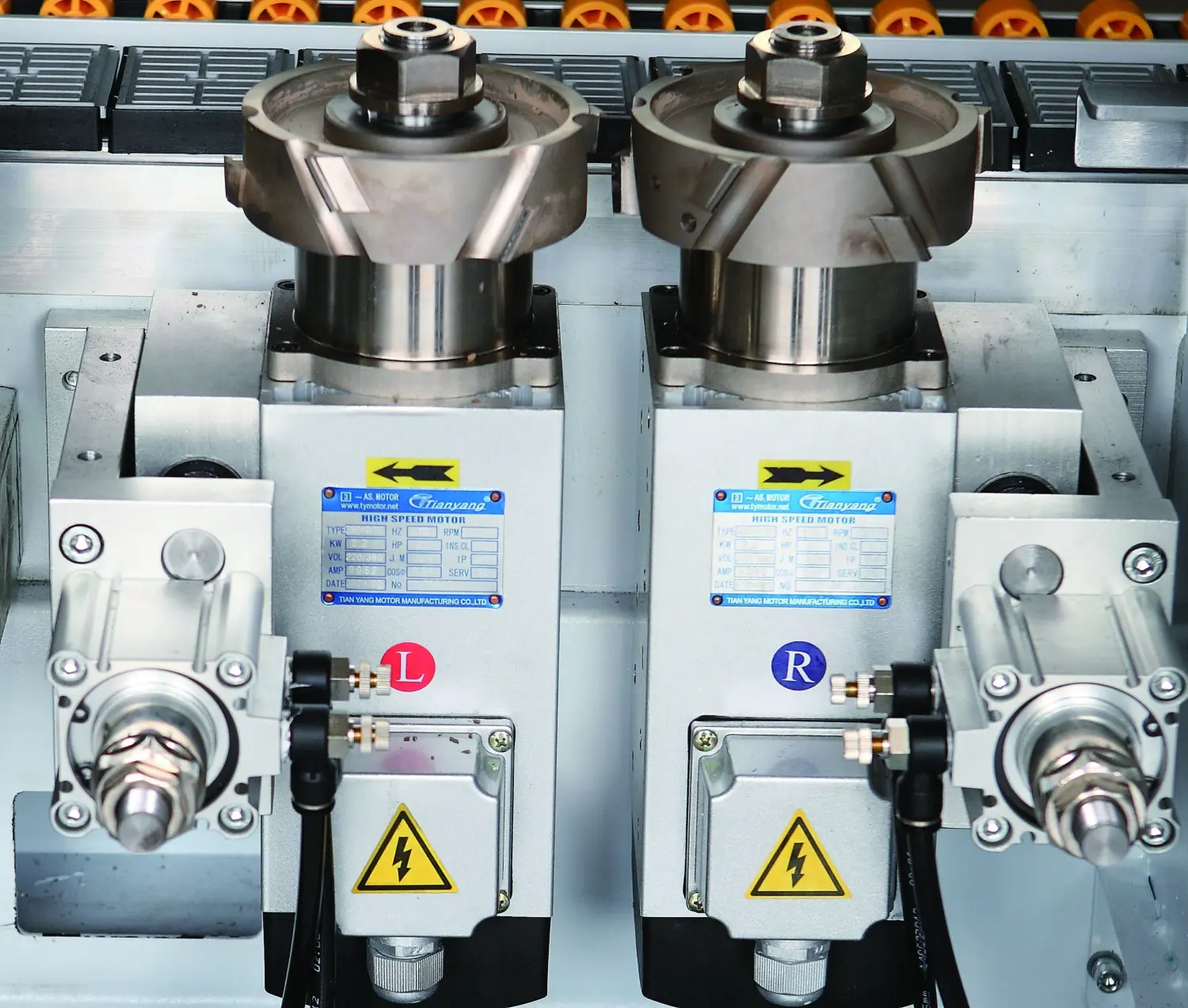

  1. Pre-Milling (12,000 RPM): Squares and smooths the panel edge prior to gluing, removing saw marks and tear-out to ensure a virtually invisible glue line.

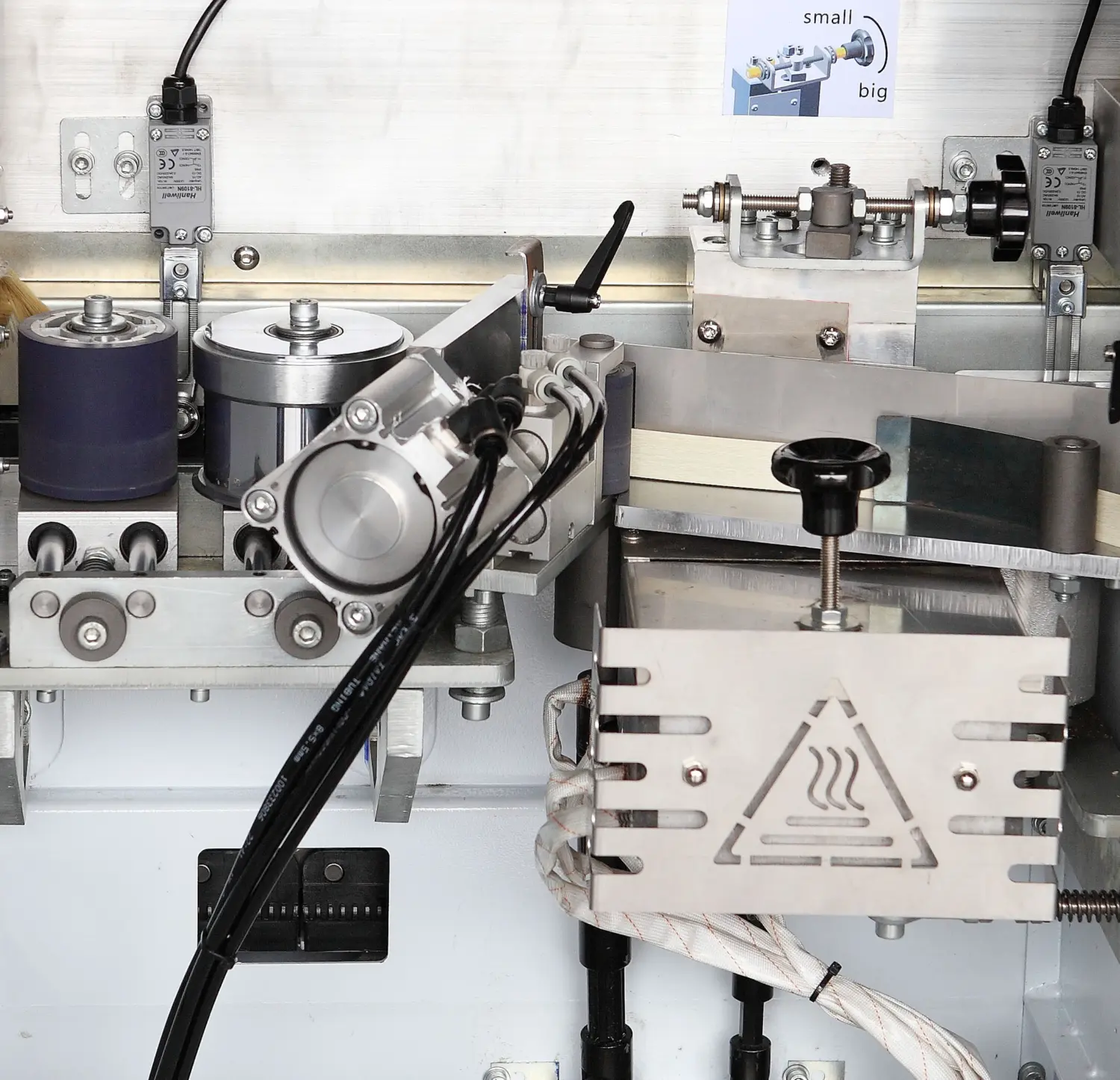

  2. Gluing: Applies uniform adhesive for a strong, seamless bond between the panel and the edge tape.
  3. End Trimming: Precisely cuts excess edge tape at the leading and trailing edges of the panel.

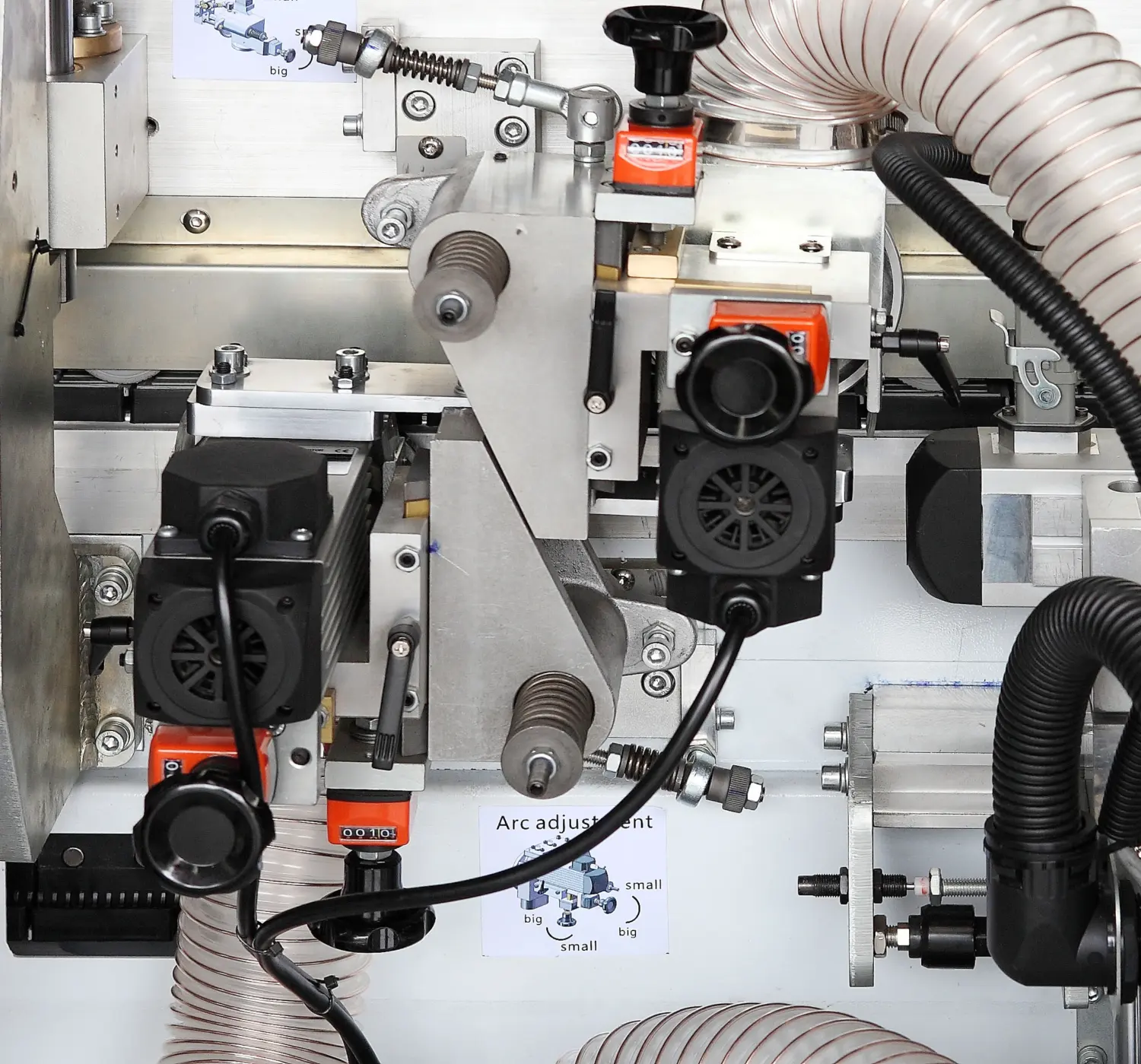

  4. Fine Trimming: Mills the top and bottom tape overhang to sit perfectly flush with the panel surface.

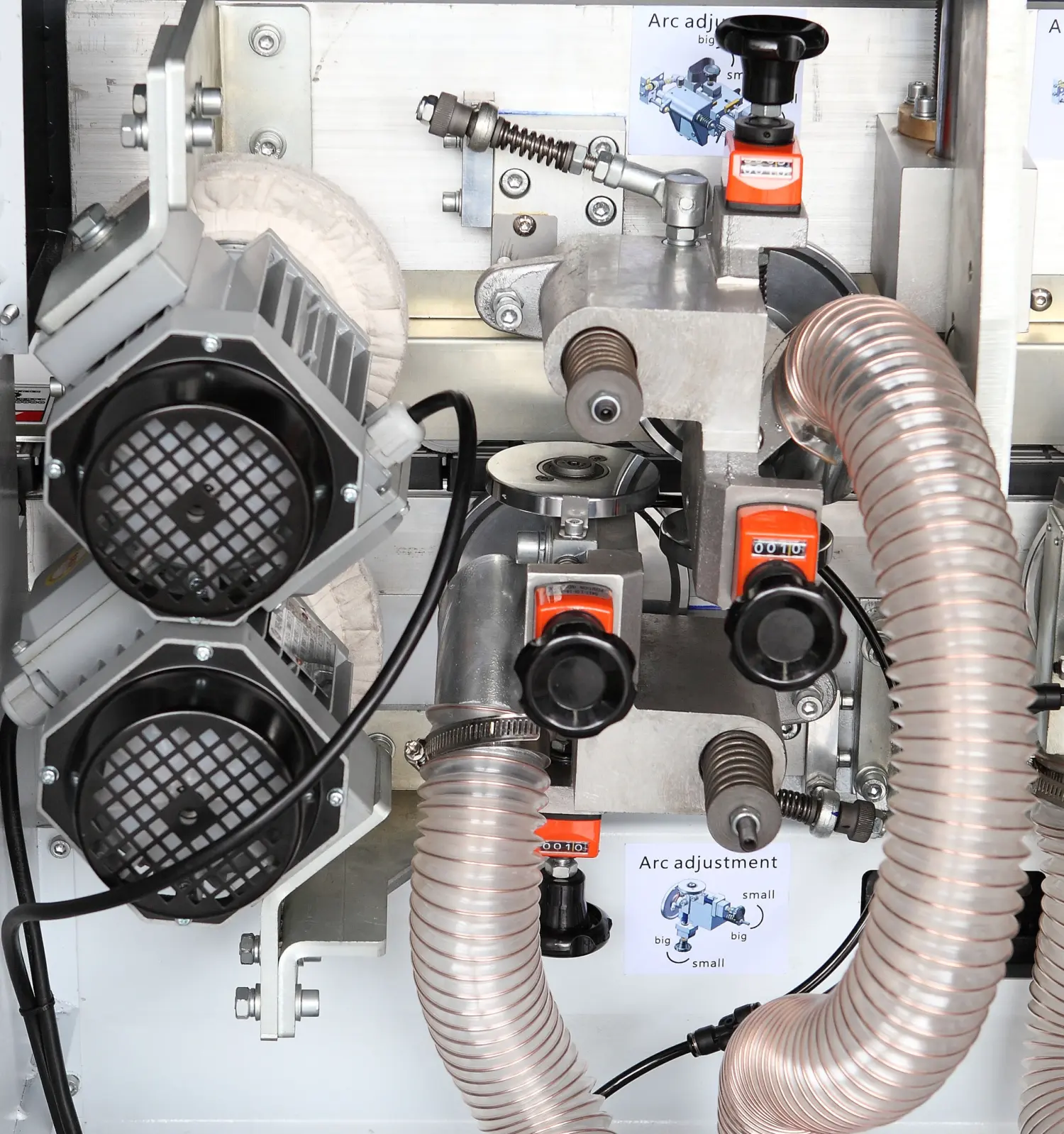

  5. Scraping: Removes any remaining milling marks and smooths the profile of the PVC/ABS edge tape.
  6. Buffing: Cleans and polishes the finished edge, restoring color and shine to the material.

Technical Specifications

Parameter Specification
Feed Speed 9 m/min
Edge Tape Thickness 0.4 mm — 3.0 mm
Minimum Panel Length ≥ 150 mm
Minimum Panel Width ≥ 120 mm
Working Air Pressure > 0.6 Mpa
Total Motor Power 10.9 KW
Machine Dimensions (L×W×H) 2850 × 536 × 1316 mm
Machine Weight 620 KG

Premium Component Configurations

To ensure long-lasting stability, high-speed performance, and minimal maintenance, the F600 is built using reliable, industry-recognized components:

  • Control Interface / Touch Screen: Kunluntongtai
  • Frequency Inverter: Ding Shen
  • Electrical Components: Delixi
  • Pneumatic / Electromagnetic Valves: EASUN
  • Trimming Motors: CC
