Description

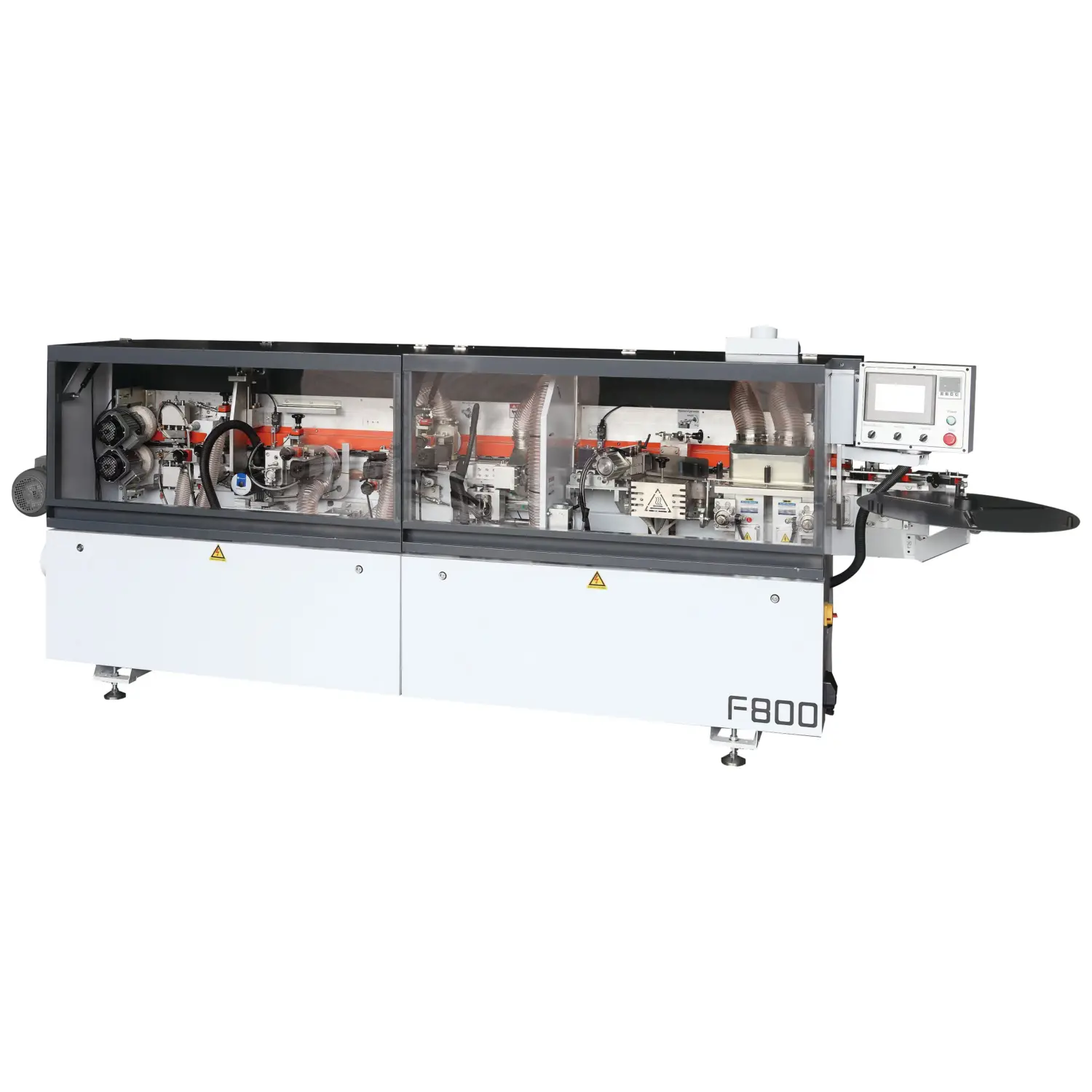

The F800 Automatic Edgebander is a top-tier, comprehensive solution designed for manufacturers producing high-end panel furniture. Engineered for full automation, maximum efficiency, and exceptional precision, this machine ensures a flawless, aesthetic finish that meets the most demanding production standards.
The quality of edgebanding directly dictates the durability, value, and grade of custom cabinetry and wardrobes. By incorporating advanced features like pre-milling, corner rounding, and flat scraping, the F800 eliminates manual finishing work and delivers a perfect, ready-to-assemble panel straight off the line.

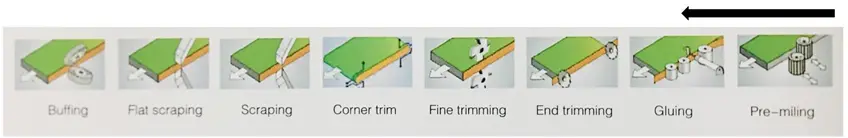

Operating Stations (Standard Direction)
The F800 boasts an extensive 8-step processing system to guarantee an immaculate edge profile in a single pass:

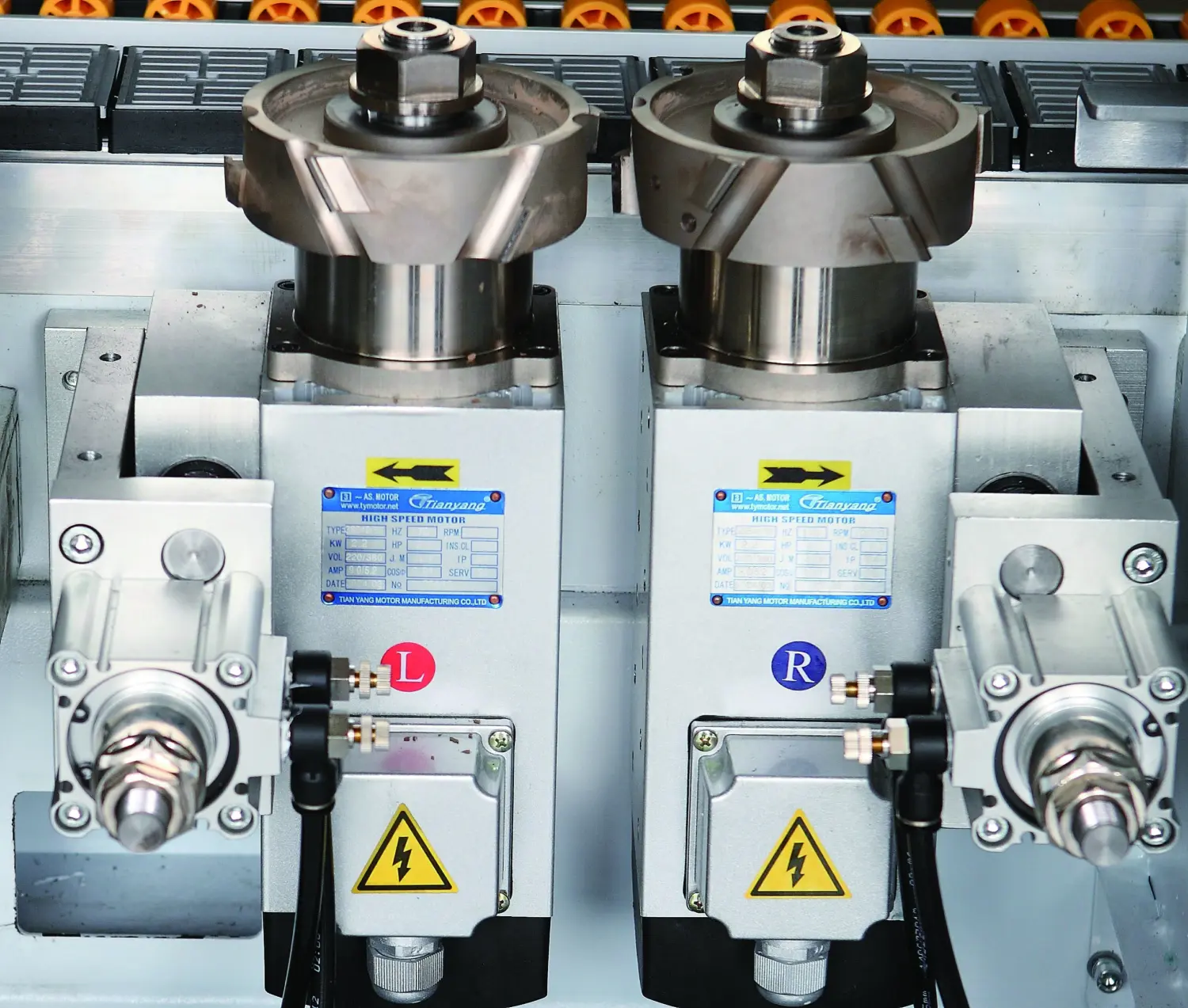

- Pre-Milling: Squares and smooths the panel edge prior to gluing, removing saw marks and tear-out to ensure a virtually invisible glue line.

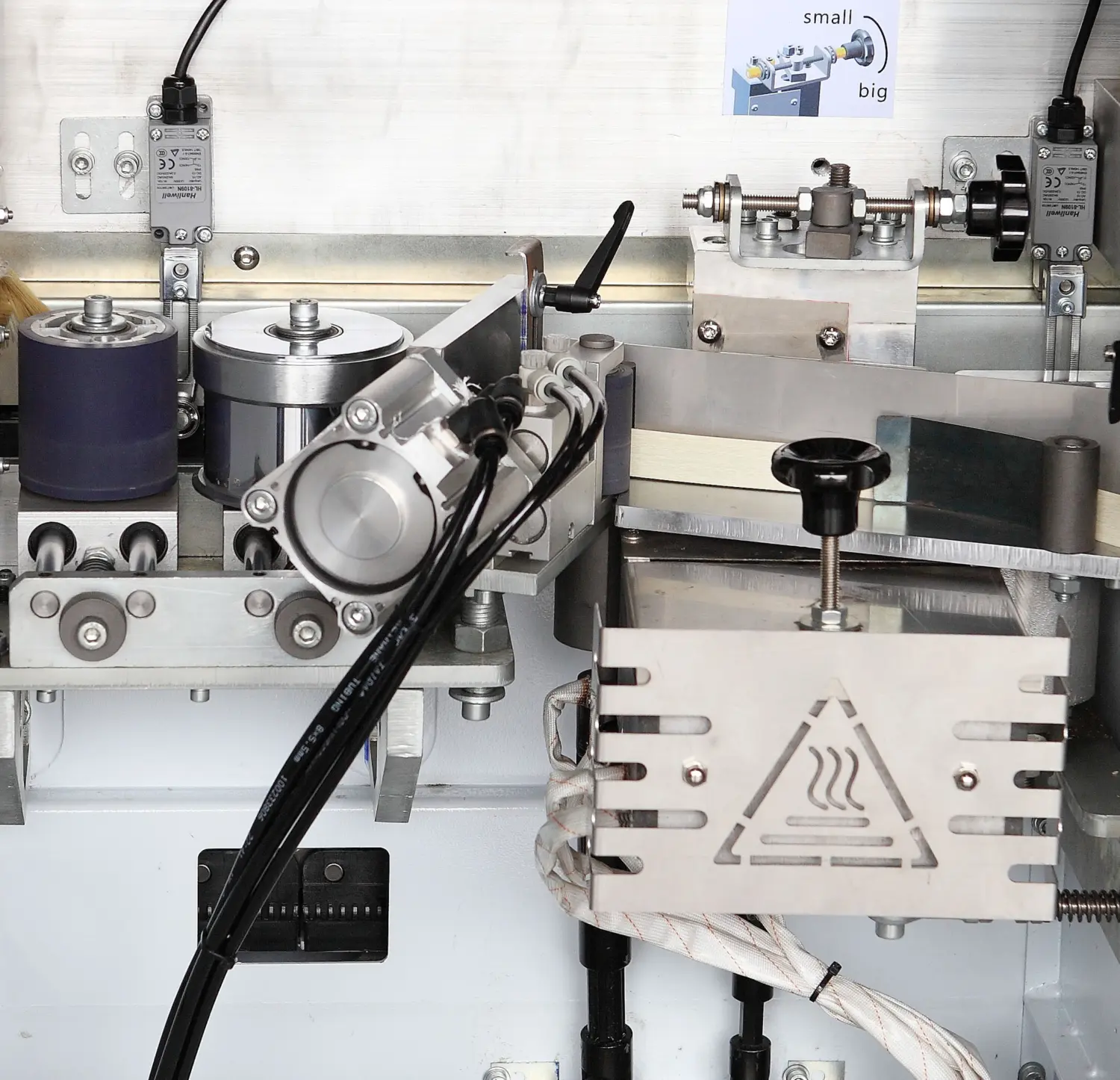

- Gluing: Applies uniform adhesive for a strong, seamless bond between the panel and the edge tape.
- End Trimming: Precisely cuts excess edge tape at the leading and trailing edges of the panel.
- Fine Trimming: Mills the top and bottom tape overhang to sit perfectly flush with the panel surface.

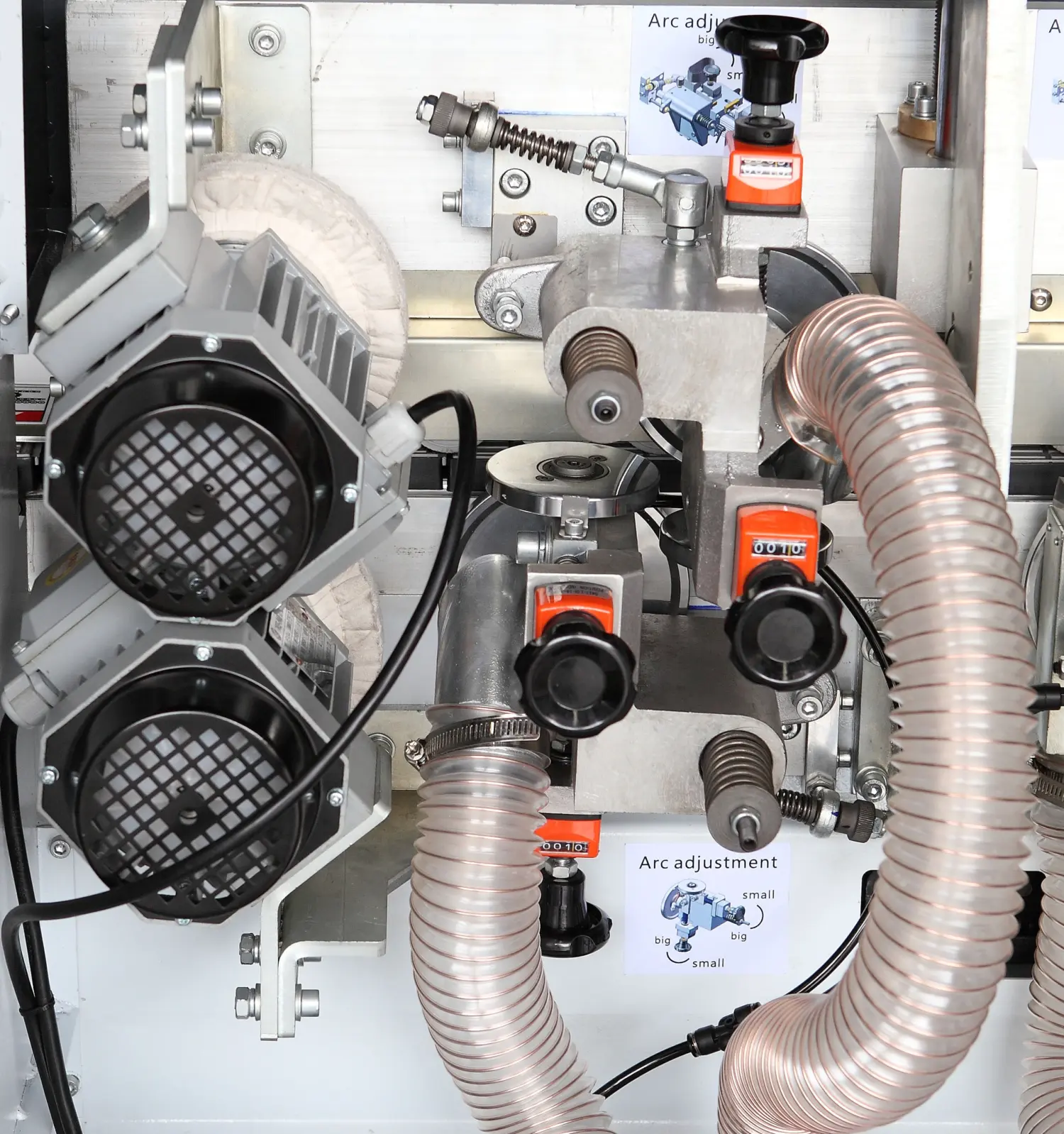

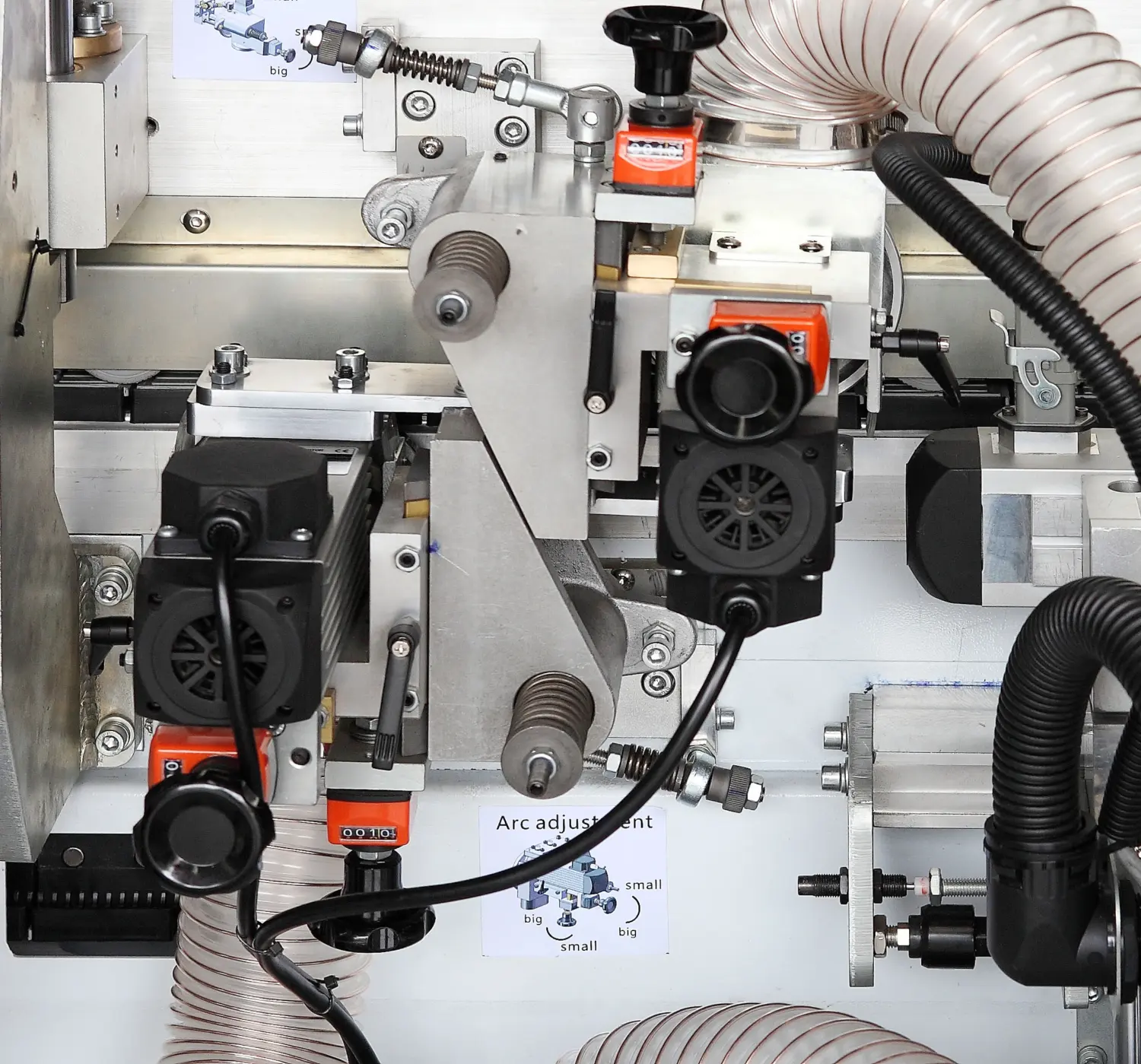

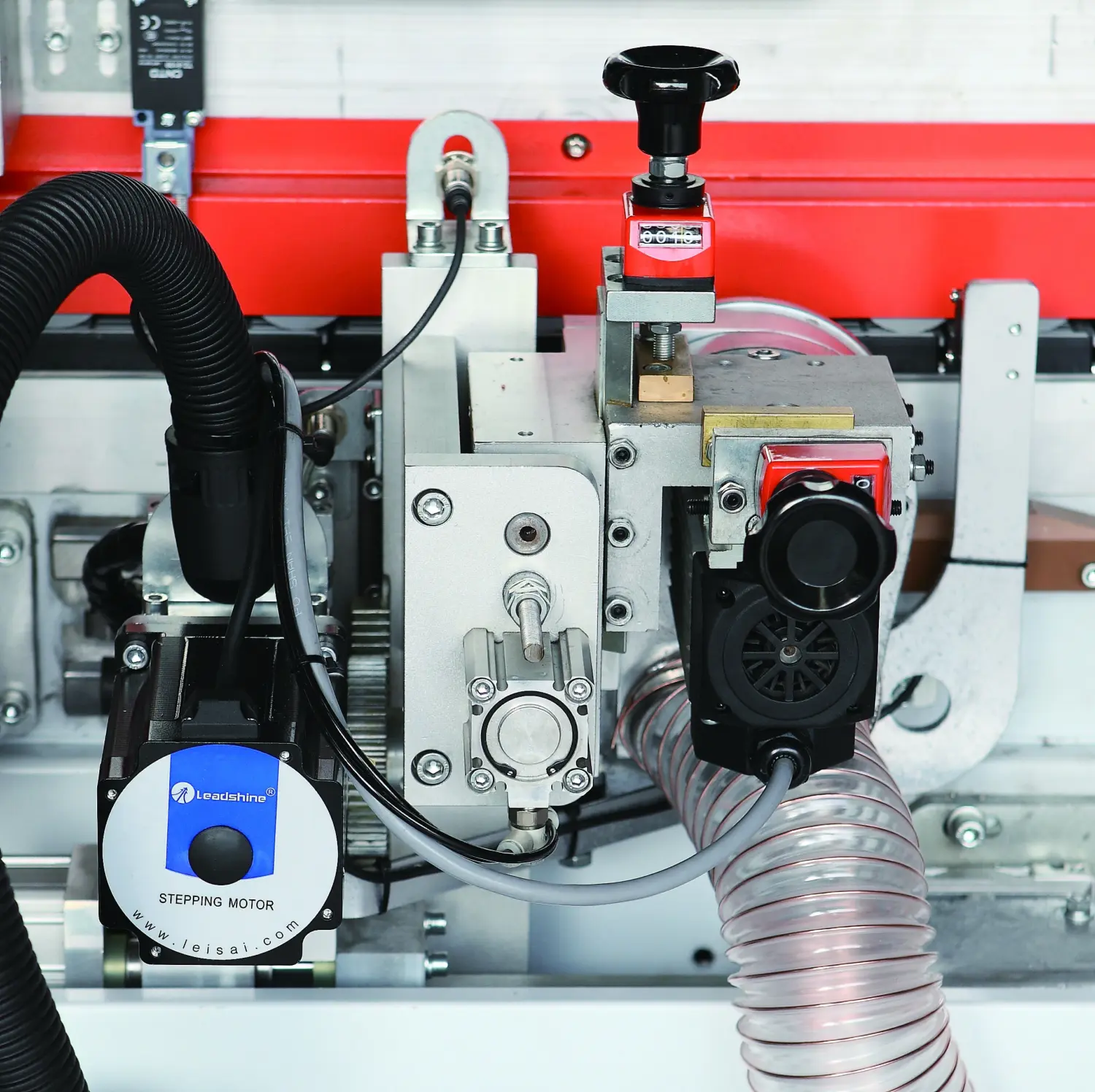

- Corner Trimming (Rounding): Automatically rounds the leading and trailing corners of the applied edge tape, providing a smooth, high-end finish without manual routing.

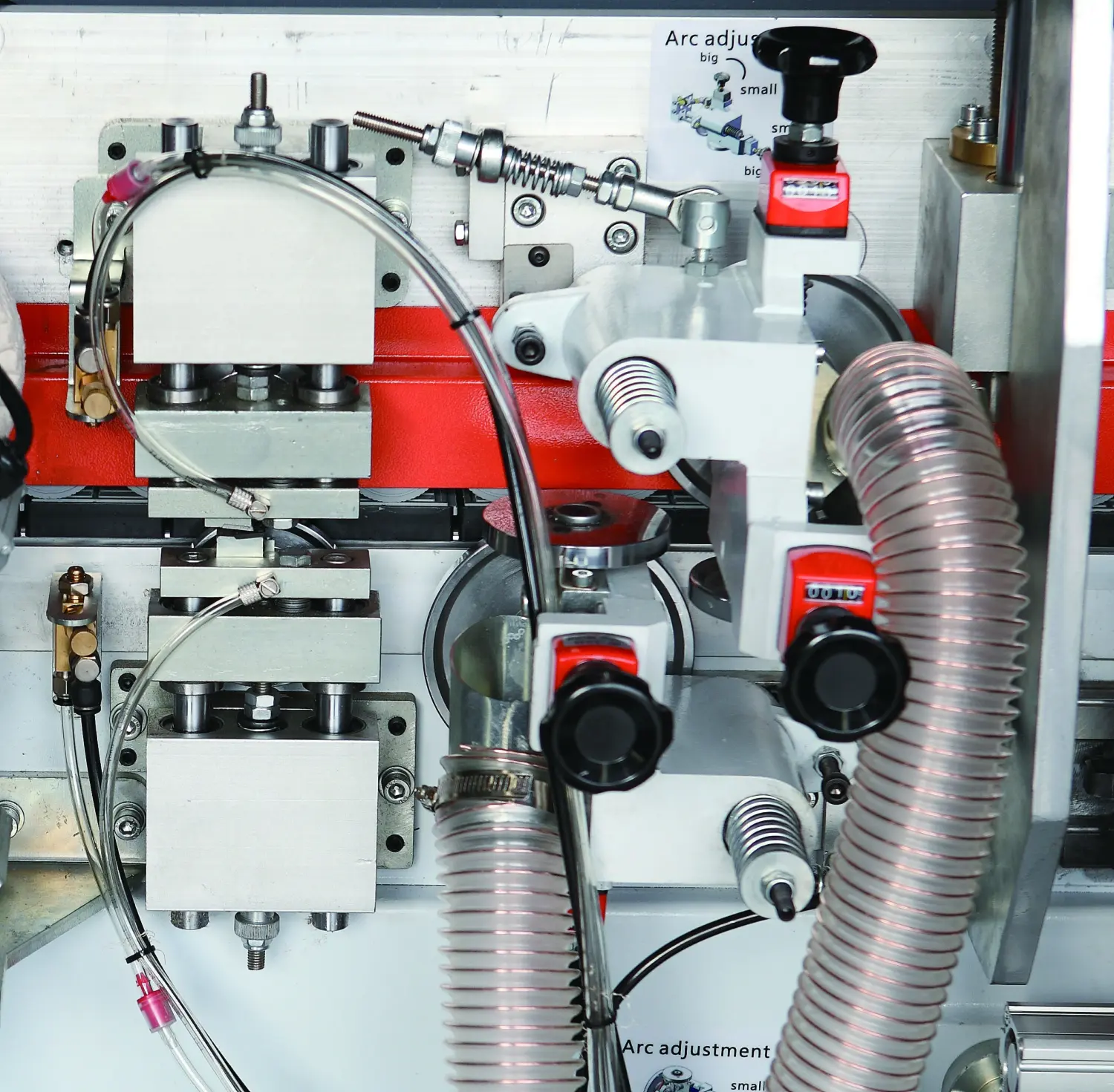

- Scraping (Profile Scraping): Removes any fine milling marks to perfectly smooth the radius of the PVC/ABS edge tape.
- Flat Scraping (Glue Scraping): Removes any residual glue squeeze-out from the top and bottom surfaces of the panel for a perfectly clean joint.
- Buffing: Cleans and polishes the finished edge, restoring color and shine to the material.
Technical Specifications
| Parameter | Specification |
|---|---|
| Feed Speed | 9 m/min |
| Panel Thickness | 10 mm — 50 mm |
| Edge Tape Thickness | 0.4 mm — 3.0 mm |
| Minimum Panel Length | ≥ 150 mm |
| Minimum Panel Width | ≥ 120 mm |
| Working Air Pressure | > 0.6 Mpa |
| Total Motor Power | 12 KW |
| Machine Dimensions (L×W×H) | 3550 × 640 × 1316 mm |
| Machine Weight | 830 KG |
Premium Component Configurations
To ensure long-lasting stability under heavy, continuous operation, the F800 is built with industry-trusted, premium components:
- Control Interface / Touch Screen: Kunluntongtai
- Frequency Inverter: Ding Shen
- Electrical Components: Delixi
- Pneumatic / Electromagnetic Valves: EASUN
- Trimming Motors: CC
