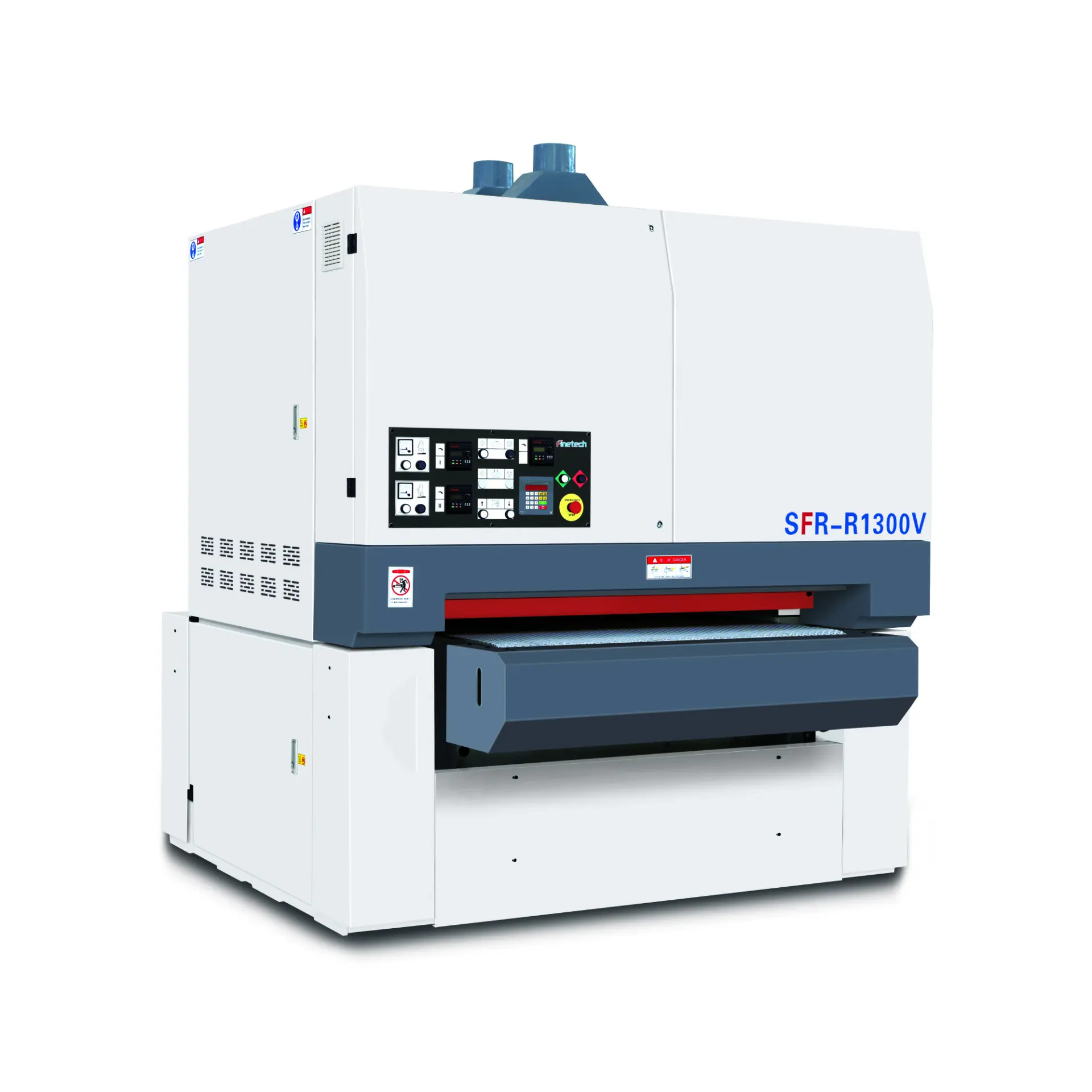

Floated Lacquer Sander

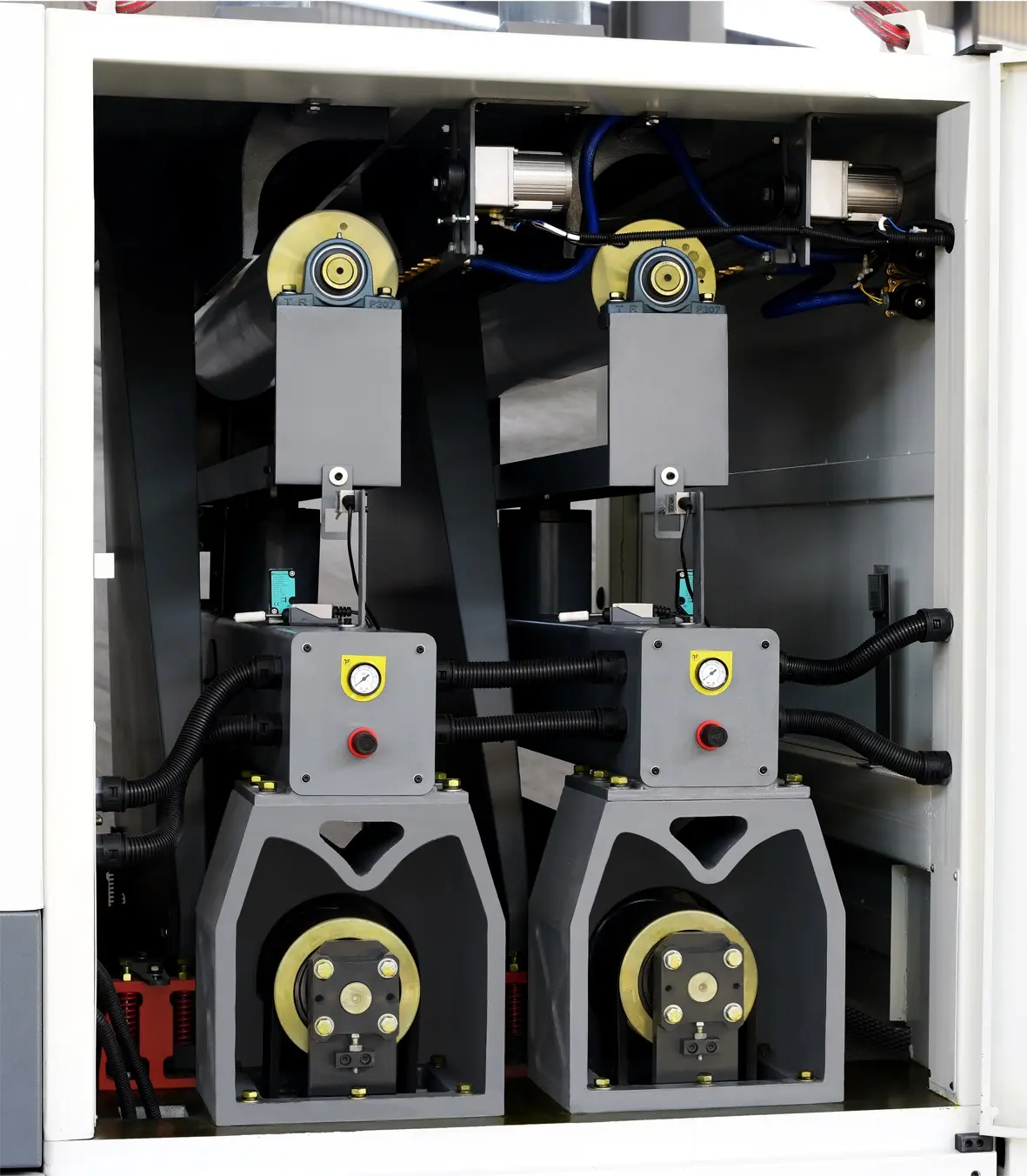

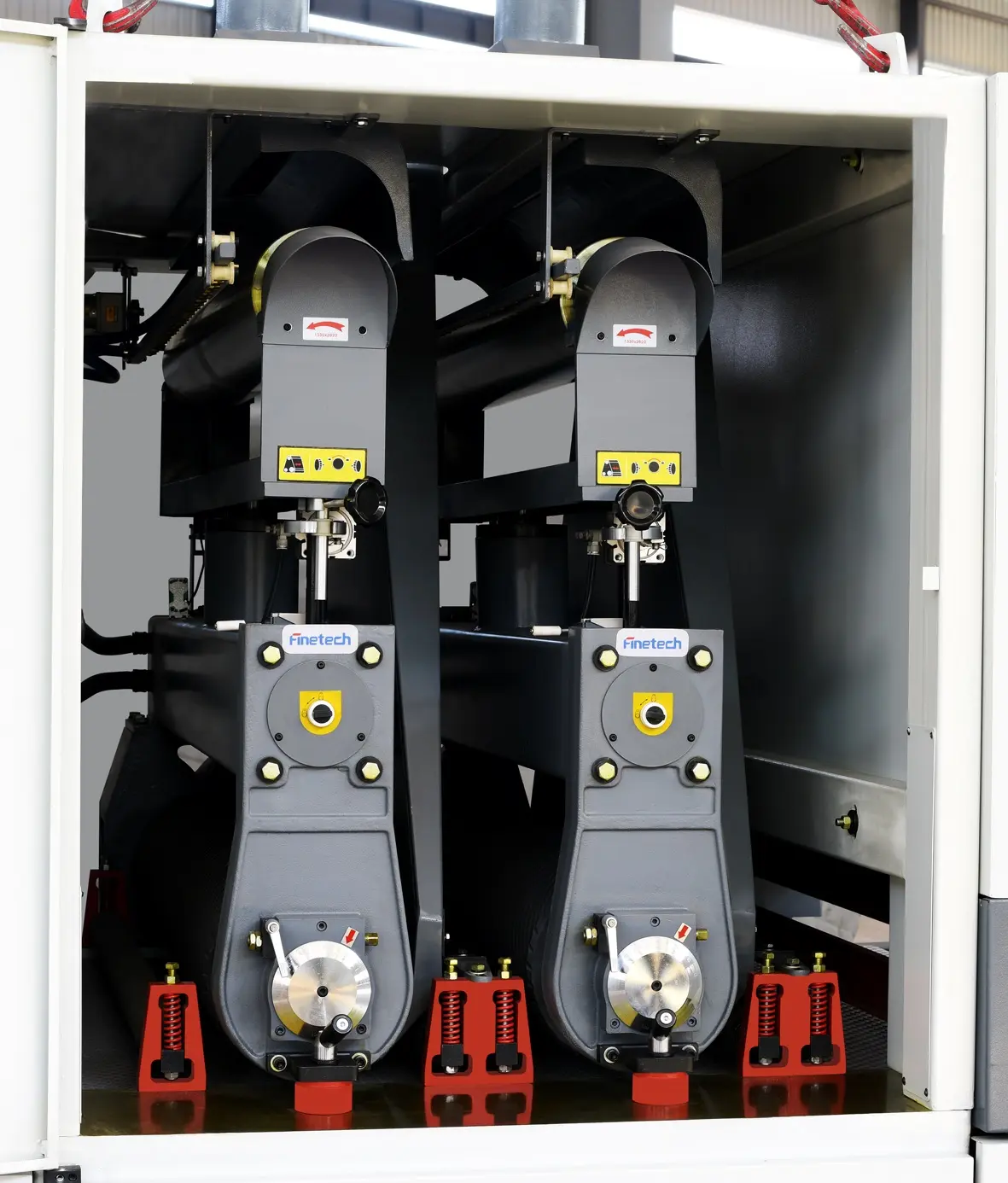

Specifically designed to complement UV painting lines, this machine features a floated structure for superior surface finishing. It employs large diameter eccentric spiral rubber calibrating rollers in its sanding heads to achieve optimal results. Precision is further enhanced by a high-precision magnetic-grid positioning system for exact height and machine control.

Category:

Product Enquiry

Description

Technical Specification SFR-R1300V SFR-R1000V SFR-R700V
Max working width 1300mm 1000mm 700mm
Min working length 380mm 285mm 285mm
Working thickness 2-100mm 2-100mm 2-100mm
Feeding speed 5-26m/min 5-30m/min 5-30m/min
Abrasive belt size 1330×2620mm 1030×2100mm 730×2100mm
Total Motor power 27.52KW 22.85KW 17.83KW
Working air pressure 0.6Mpa 0.6Mpa 0.6Mpa
Air consumption 17m³/h 9m³/h 7m³/h
Dust collection volume 8500m³/h 4600m³/h 4600m³/h
Overall dimensions 2112×2634×2310mm 1715×2000×2125mm 1415×2000×2125mm
Net weight 3900kg 3000kg 2500kg
