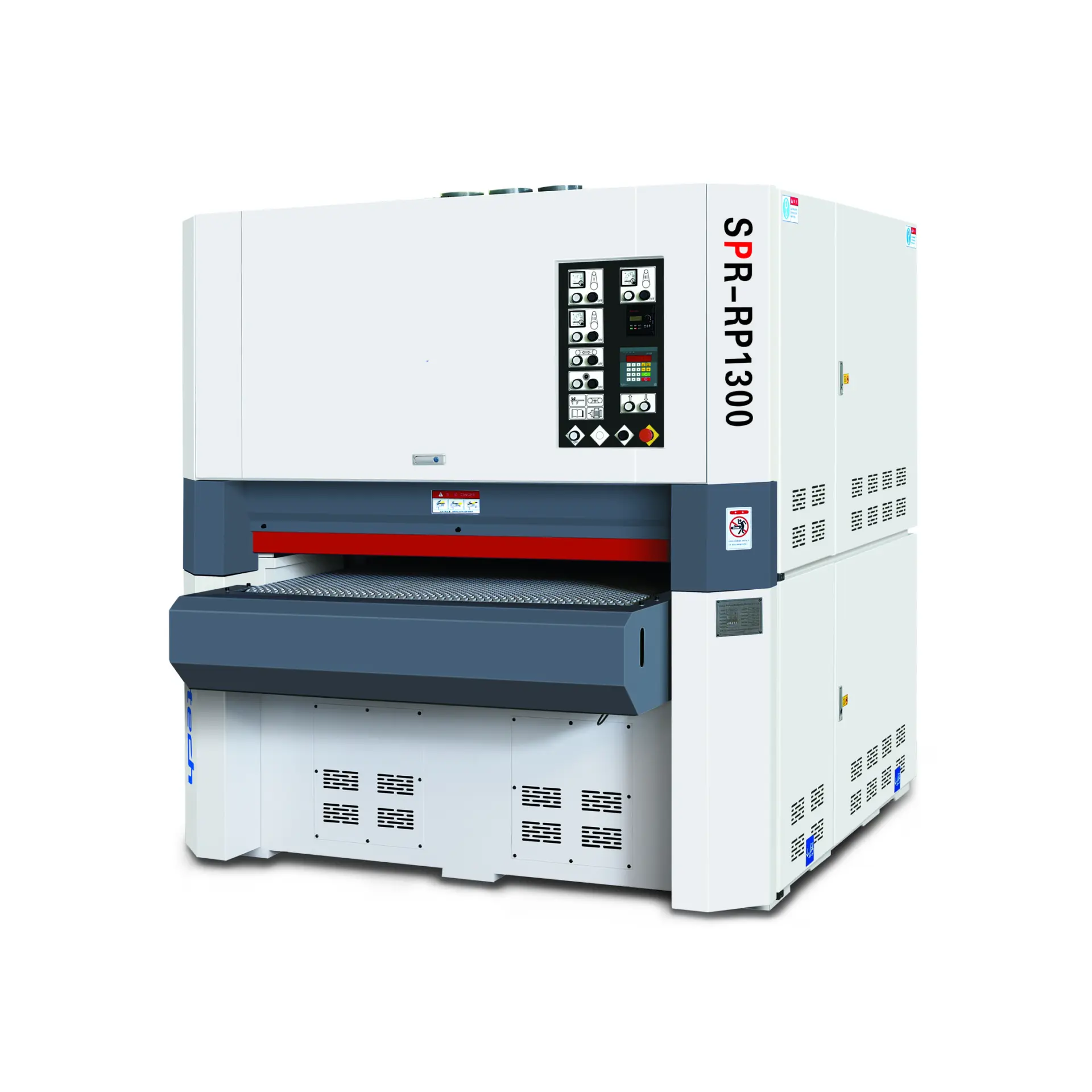

Planer Sander

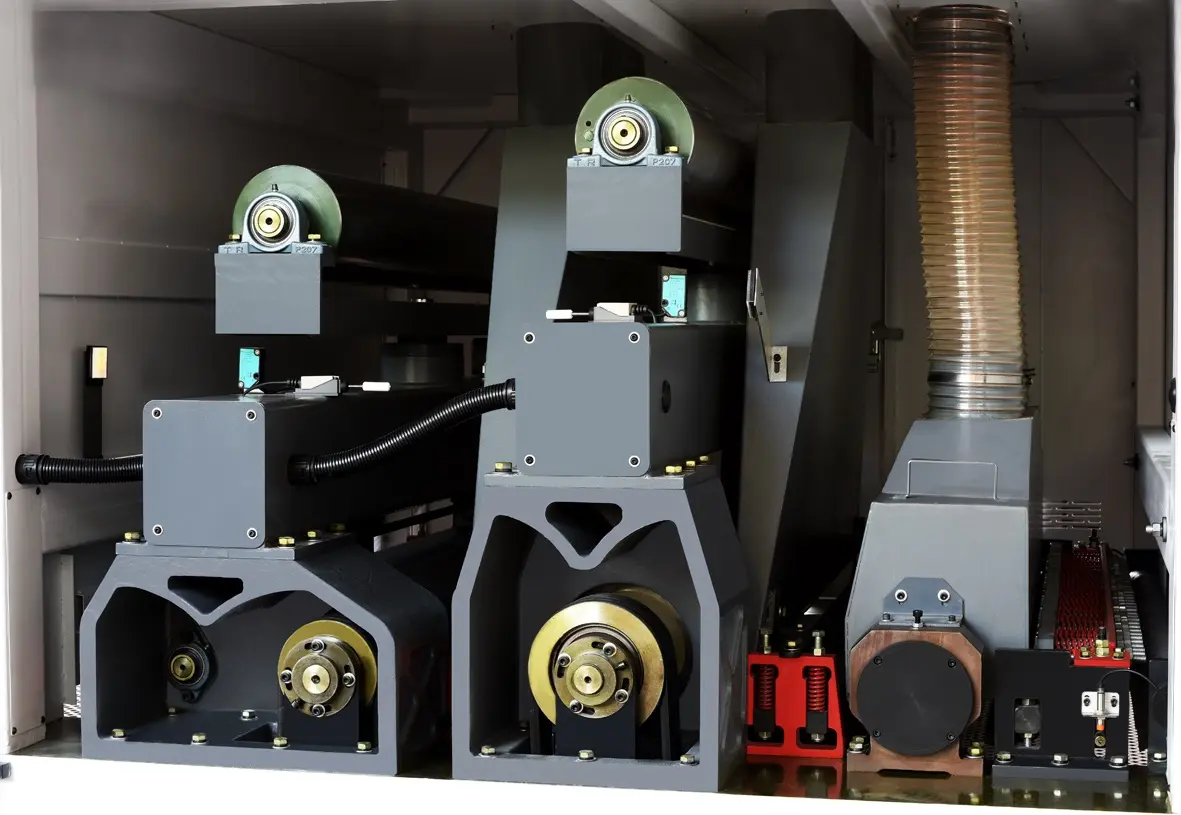

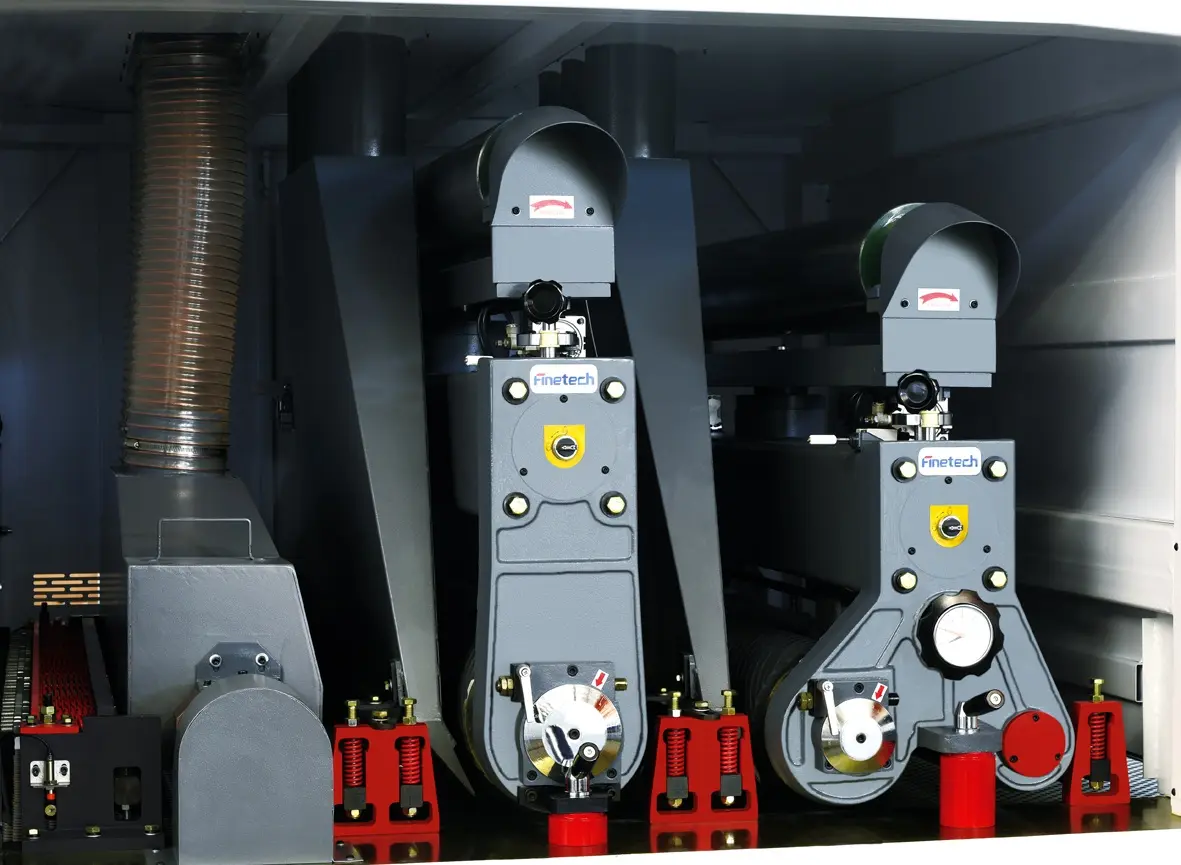

Built with a high-strength body and imported spiral planer rollers, this model utilizes a segment press beam structure to ensure the precision of the workpiece edges. For operator safety, it is equipped with over-thickness detection and casting anti-back devices. The conveyor system utilizes a helical-spiral taper gear reducer with an inverter for smooth and reliable material feeding.

Category:

Product Enquiry

Description

Technical Specification SPR-RP1300 SPR-R1000 SPR-P700
Max working width 1300mm 1000mm 700mm
Min working length 540mm 356mm 491mm
Working thickness 10-160mm 10-160mm 10-160mm
Feeding speed 5-30m/min 5-30m/min 5-30m/min
Abrasive belt size 1330×2200mm 1030×2000mm 730×1900mm
Total Motor power 78.92KW 59.24KW 43.94KW
Working air pressure 0.6Mpa 0.6Mpa 0.6Mpa
Air consumption 17m³/h 17m³/h 12m³/h
Dust collection volume 13700m³/h 13700m³/h 8500m³/h
Overall dimensions 2020×2770×2190mm 1663×2544×1980mm 1363×2544×1980mm
Net weight 5600kg 3350kg 2800kg
