Three Heads Heavy-Duty Wide Belt Sander

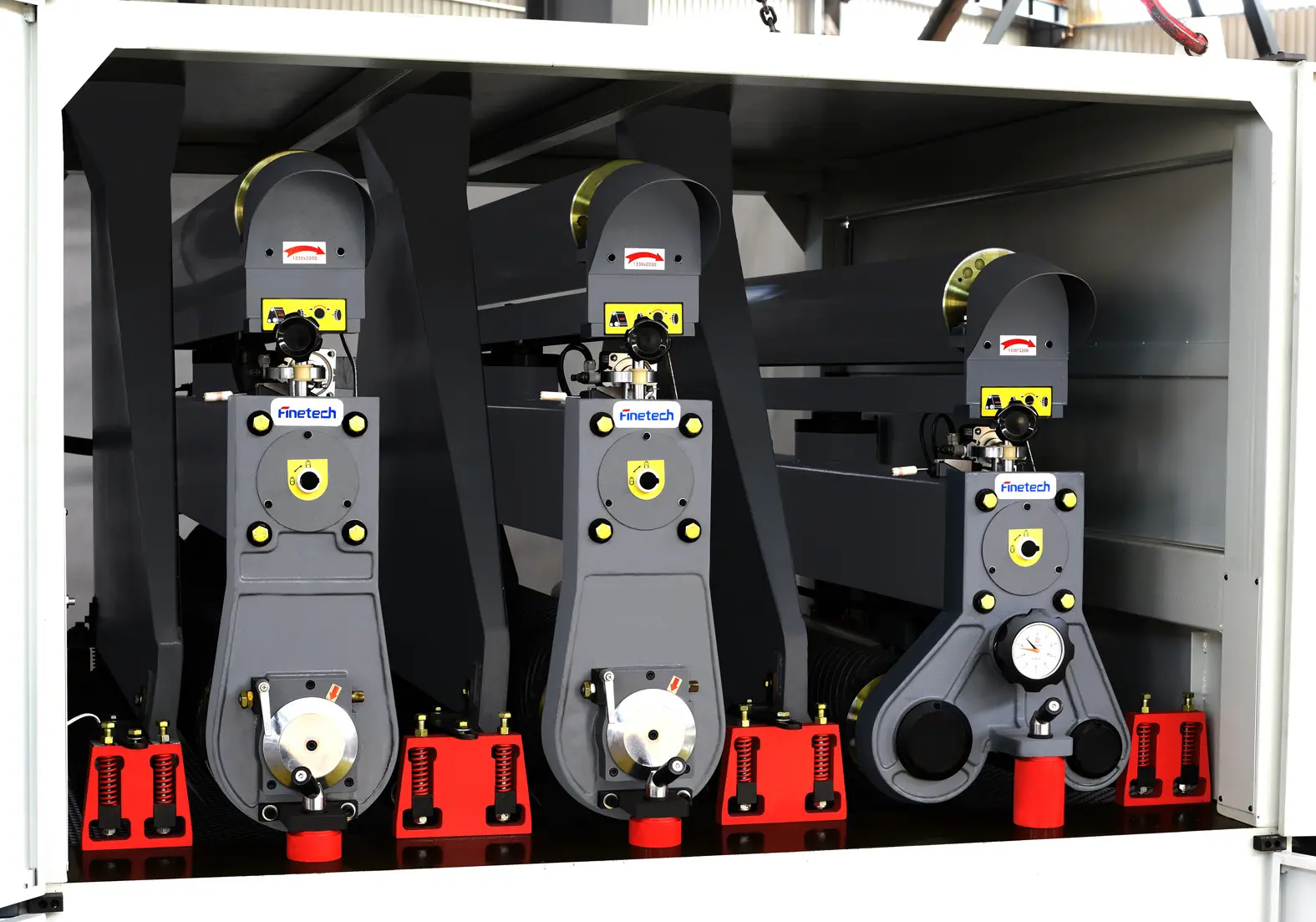

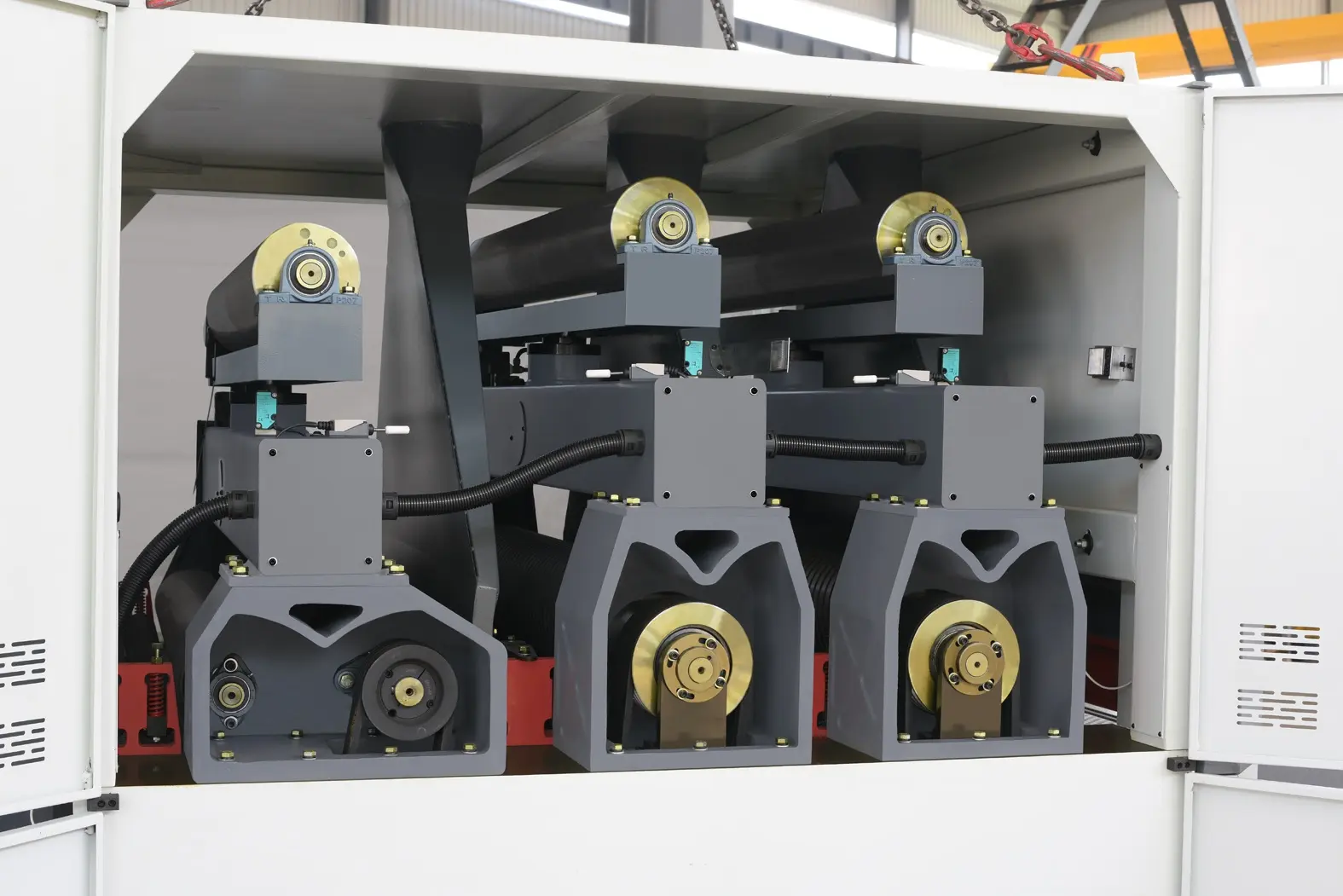

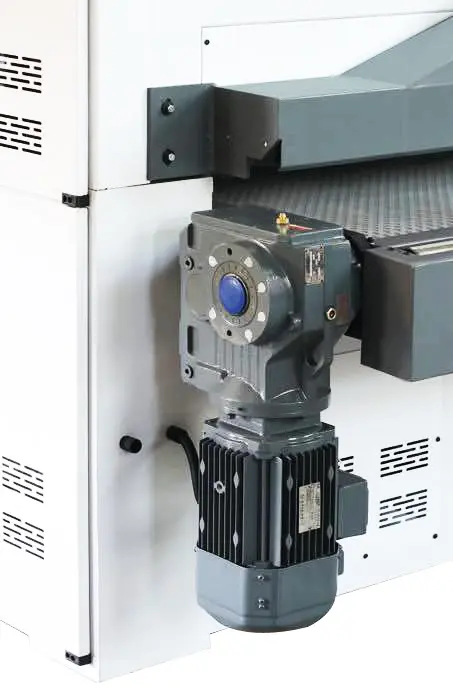

Designed for high-performance industrial use, this three-head model employs German-imported P+F photoelectric switches to precisely control abrasive belt oscillation. Its worm gear lifting motor ensures precise and stable height adjustments. The machine is built on a solid foundation of cast hanging plates and beam bases to guarantee long-term stability and reduced vibration.

Category:

Product Enquiry

Description

Technical Specification SR-R-RP1300 SR-R-RP1000 SR-R-RP700
Max working width 1300mm 1000mm 700mm
Min working length 530mm 491mm 491mm
Working thickness 2-110mm 2-160mm 2-160mm
Feeding speed 5-30m/min 5-30m/min 5-30m/min
Abrasive belt size 1330×2200mm 1030×2000mm 730×1900mm
Total Motor power 91.92KW 47.44KW 39.94KW
Working air pressure 0.6Mpa 0.6Mpa 0.6Mpa
Air consumption 12m³/h 12m³/h 9m³/h
Dust collection volume 13700m³/h 13700m³/h 8500m³/h
Overall dimensions 2036×2841×2150mm 1663×2544×1980mm 1363×2544×1980mm
Net weight 5600kg 4200kg 3000kg
