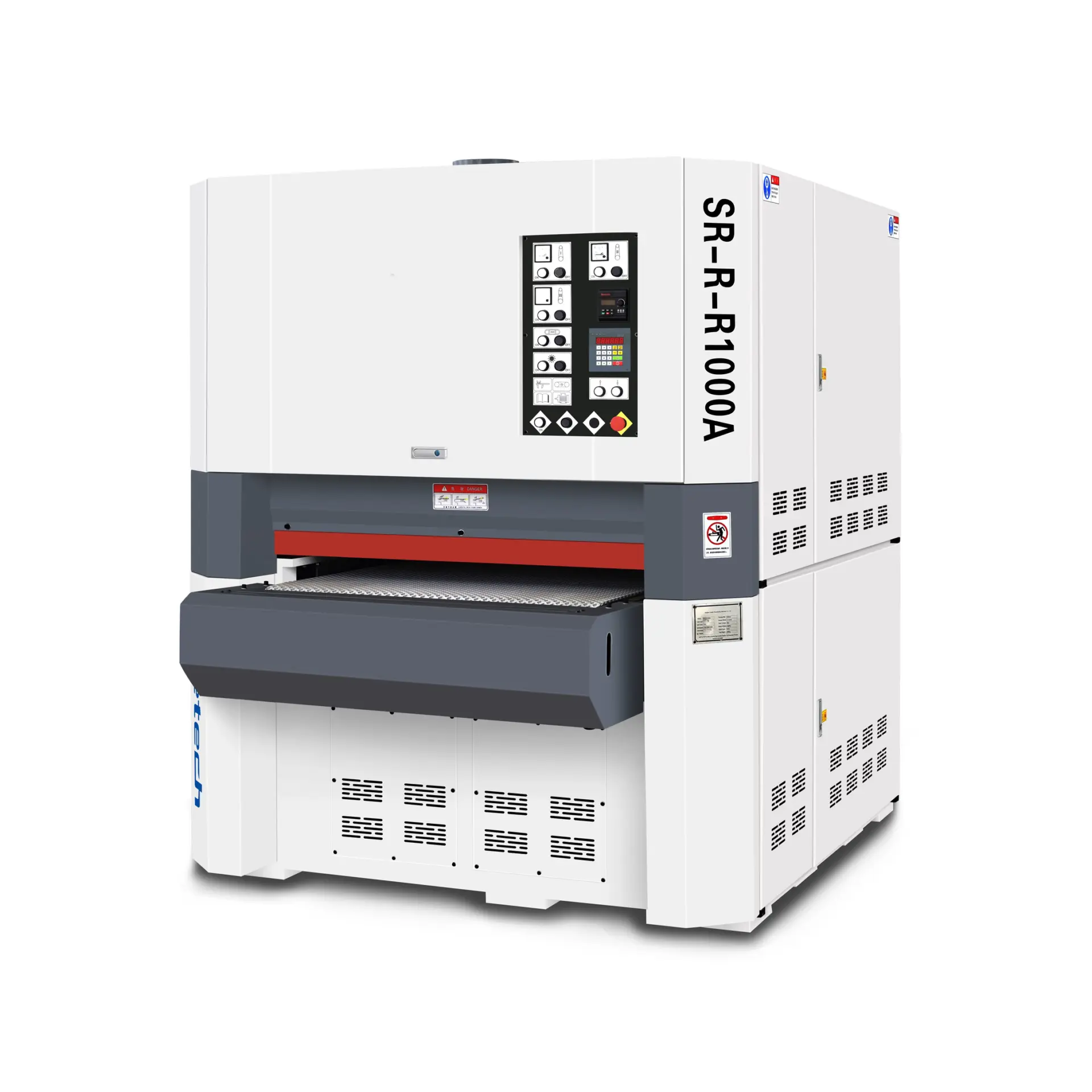

Three Heads Fine Wide Belt Sander

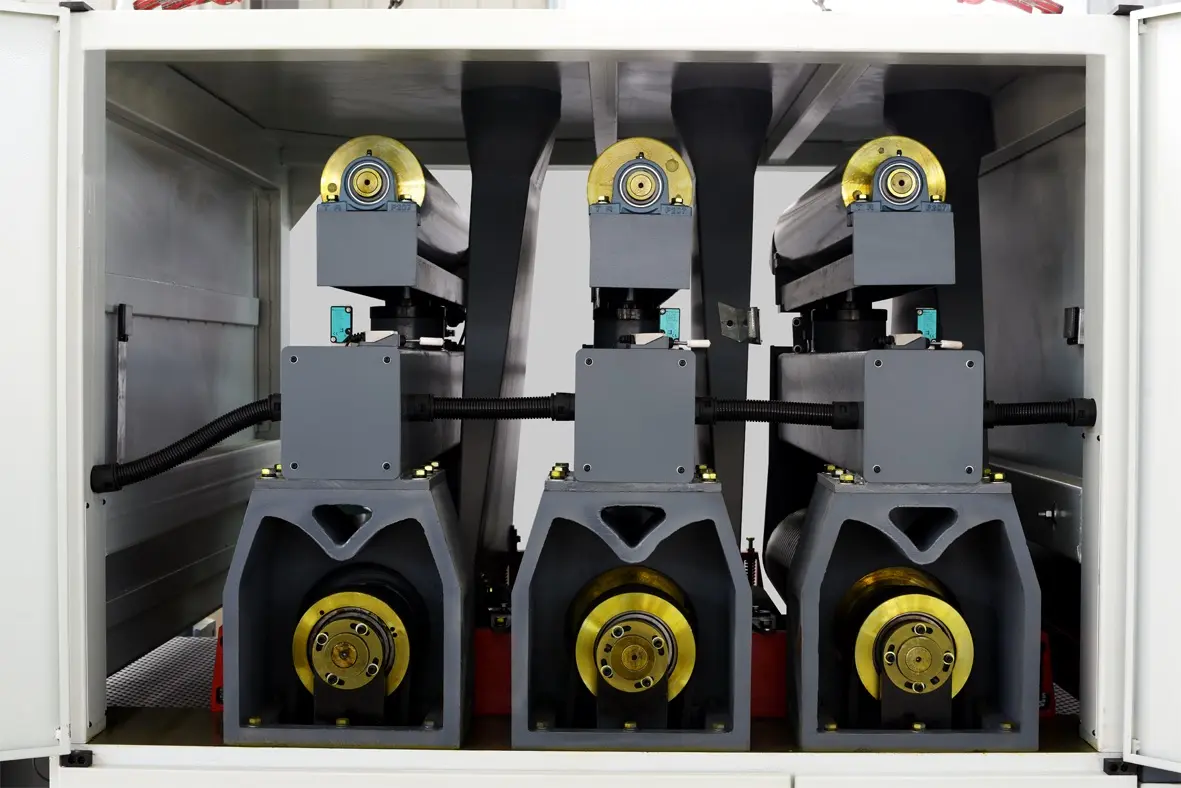

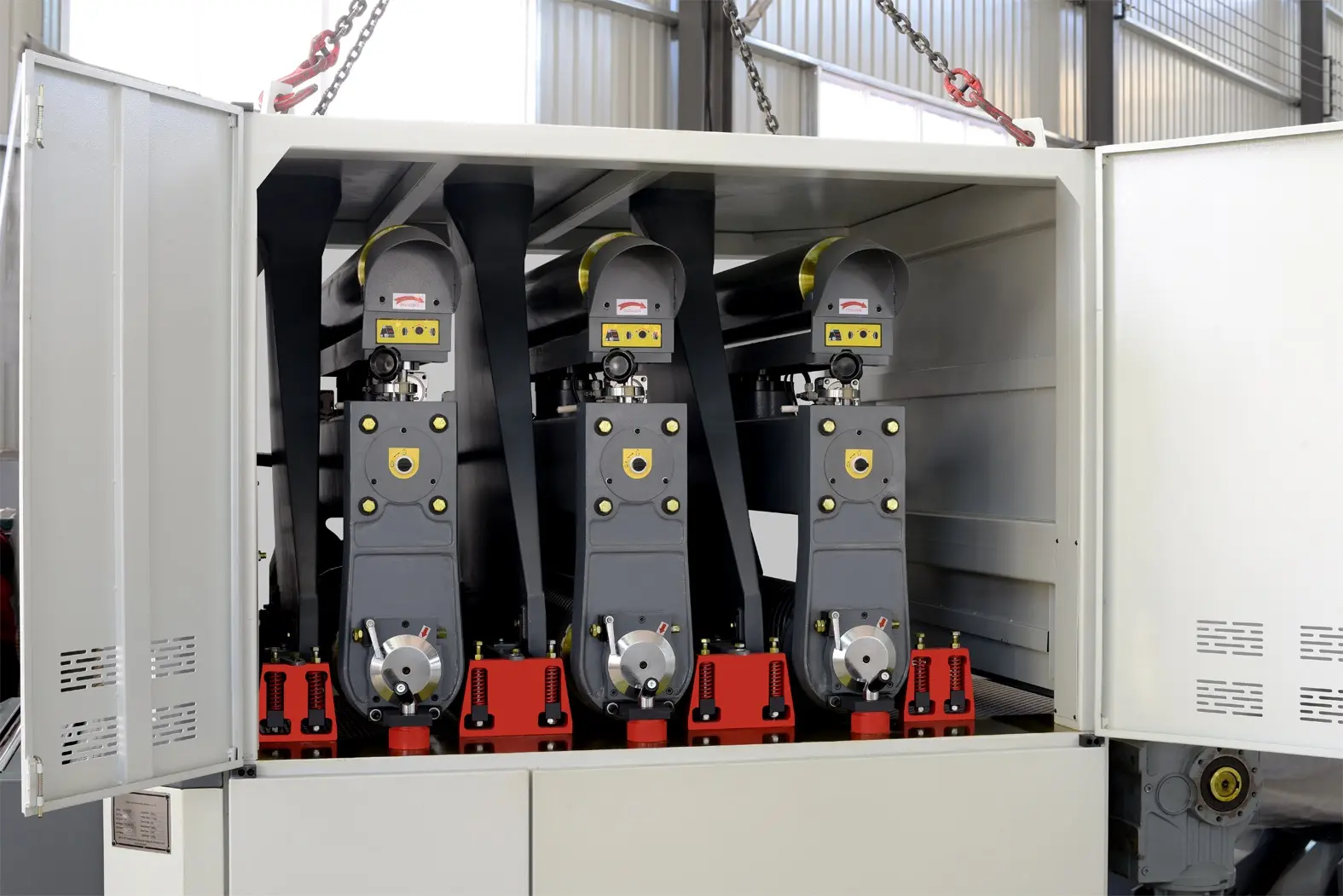

This model features a thickened and high-strength machine body specifically designed to reduce vibration and significantly improve sanding accuracy. Precision cast hanging plates and beam bases further enhance operational stability. The worm gear lifting motor allows for smooth and highly accurate machine height control, essential for fine finishing tasks.

Category:

Product Enquiry

Description

Technical Specification SR-R-R1300A SR-R-RP1000A SR-R-R1000A
Max working width 1300mm 1000mm 1000mm
Min working length 360mm 540mm 300mm
Working thickness 2-110mm 2-160mm 2-110mm
Feeding speed 5-30m/min 5-30m/min 5-30m/min
Abrasive belt size 1330×2200mm 1030×2200mm 1030×2200mm
Total Motor power 78.92KW 59.42KW 59.42KW
Working air pressure 0.6Mpa 0.6Mpa 0.6Mpa
Air consumption 12m³/h 12m³/h 12m³/h
Dust collection volume 13700m³/h 11800m³/h 11800m³/h
Overall dimensions 2036×2868×2150mm 1736×2675×2190mm 1736×2868×2150mm
Net weight 5850kg 4500kg 4500kg
