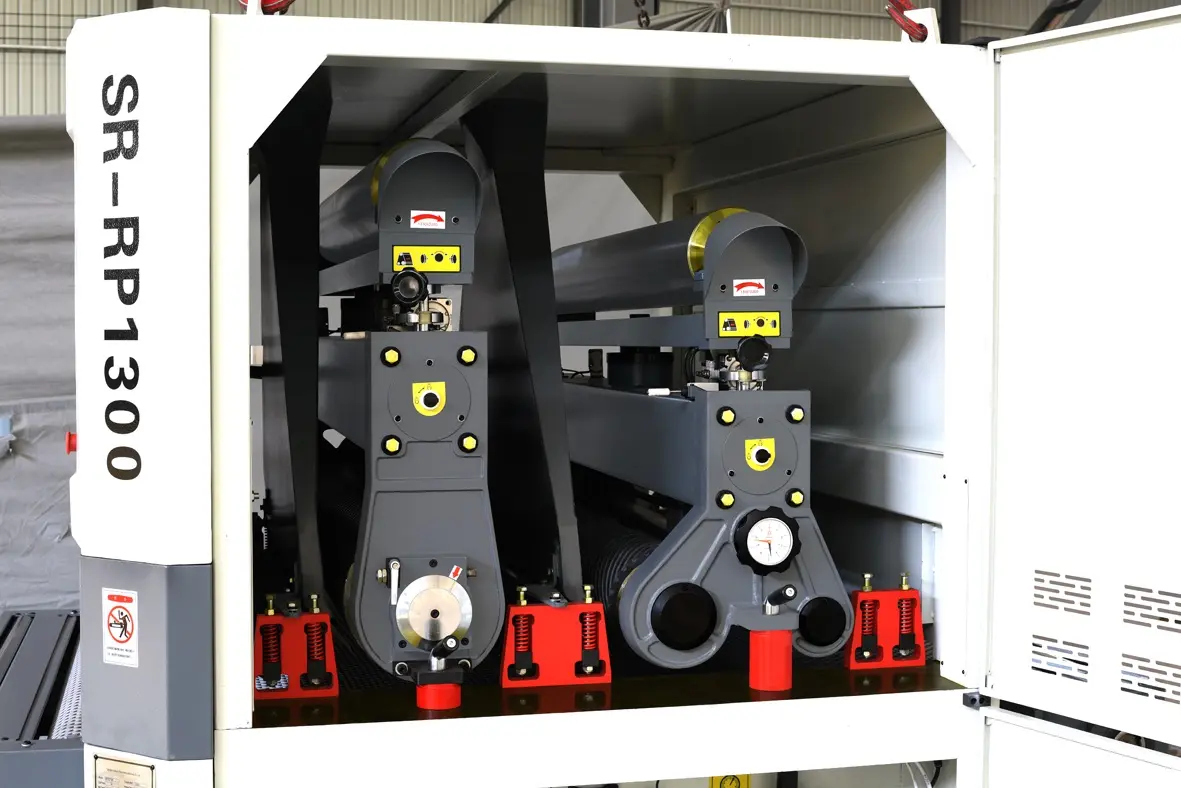

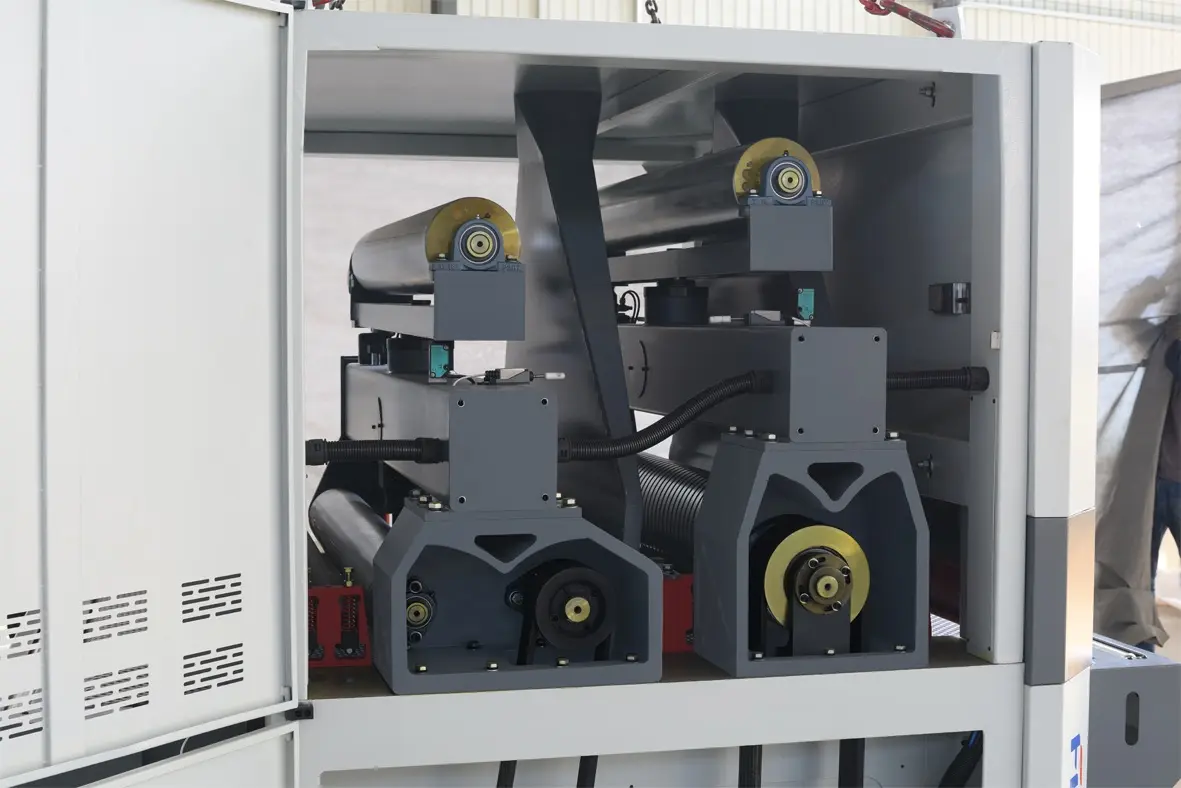

Two Heads Fine Wide Belt Sander

Combining safety and precision, this sander includes a specialized anti-back system to prevent workpiece kickback during the sanding process. Its reinforced body structure is engineered to minimize vibration, directly contributing to higher sanding precision. Belt oscillation is meticulously managed by German-imported P+F photoelectric switches for consistent, high-quality output.

Category:

Product Enquiry

Description

Technical Specification SR-RP1000A SR-R1000A
Max working width 1000mm 1000mm
Min working length 540mm 348mm
Working thickness 2-160mm 2-110mm
Feeding speed 5-30m/min 5-30m/min
Abrasive belt size 1030×2200mm 1030×2200mm
Total Motor power 40.92KW 40.92KW
Working air pressure 0.6Mpa 0.6Mpa
Air consumption 12m³/h 12m³/h
Dust collection volume 11800m³/h 11200m³/h
Overall dimensions 1736×2358×2190mm 1716×2358×2150mm
Net weight 3550kg 3550kg
