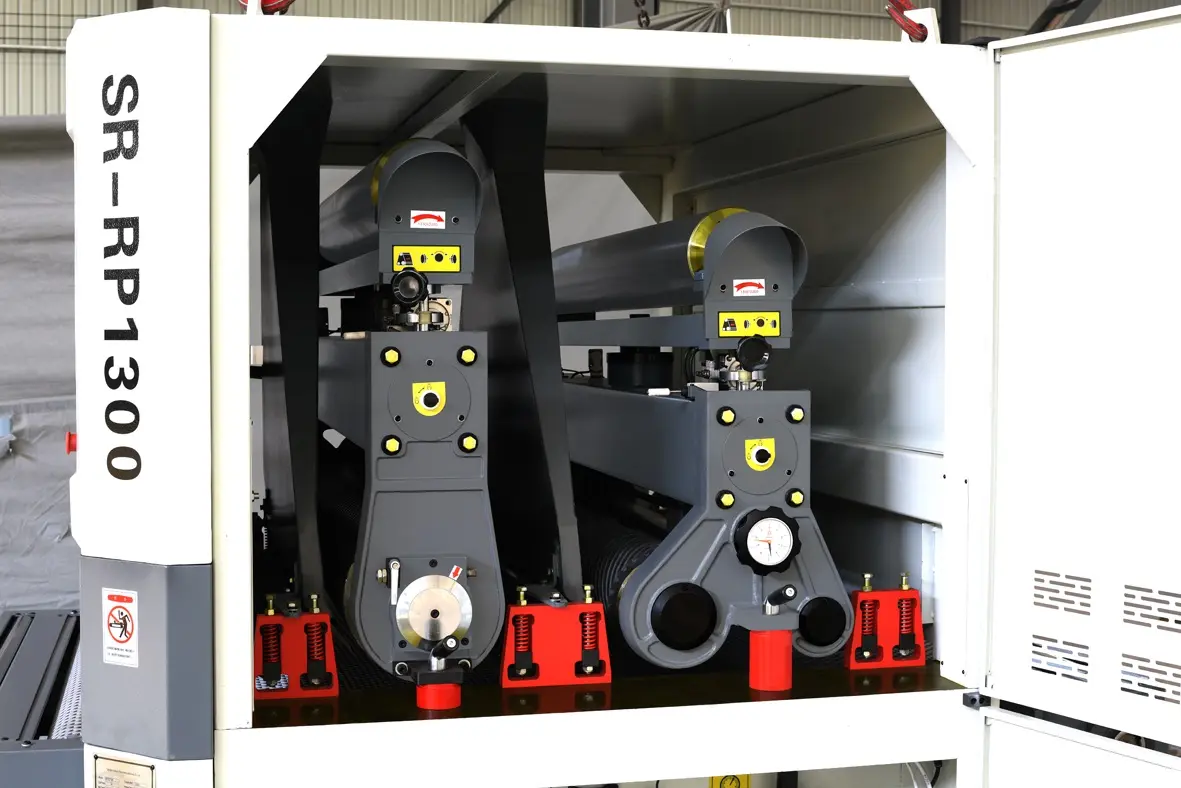

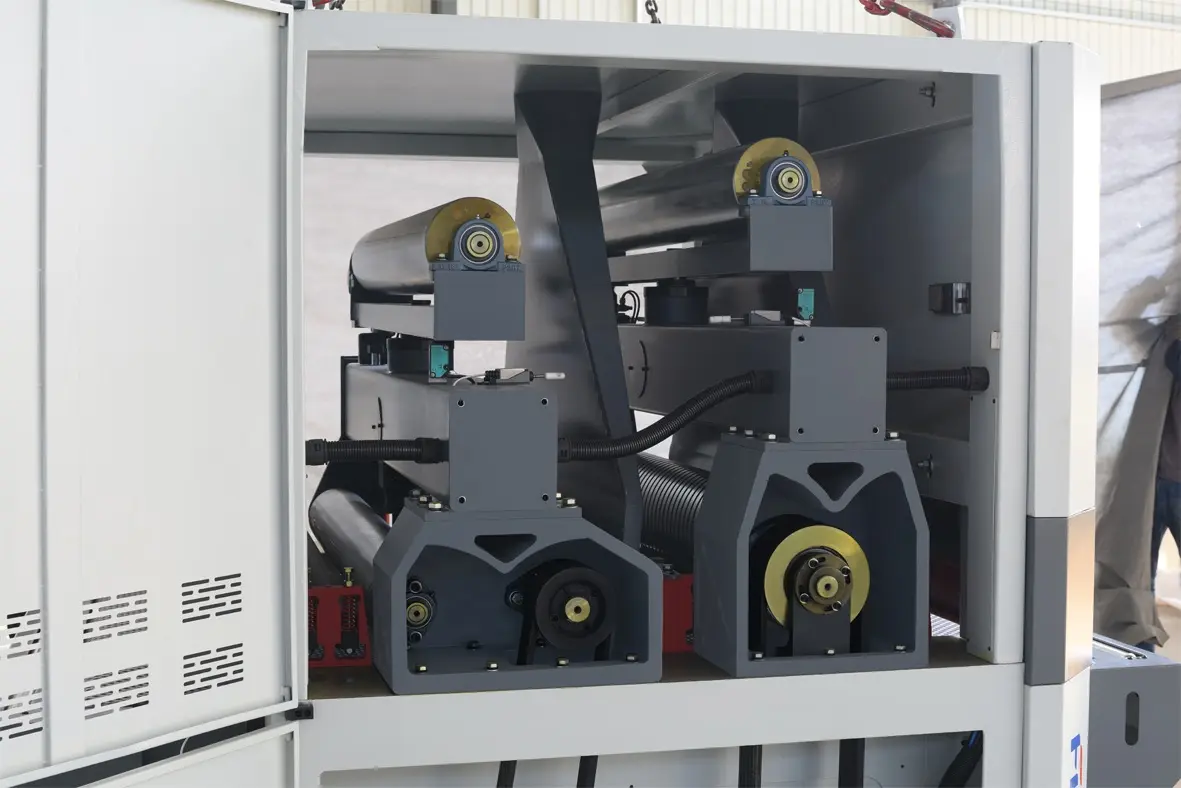

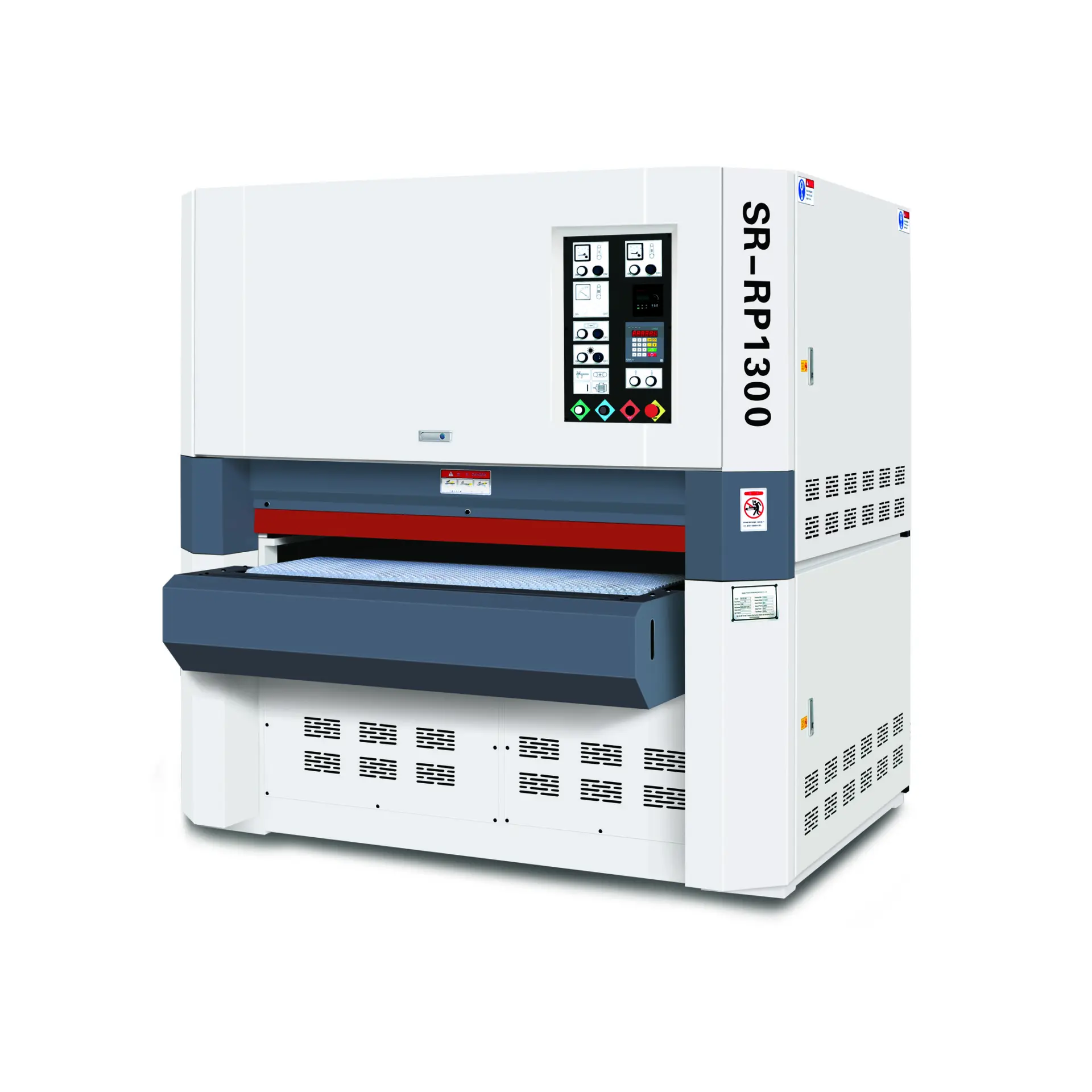

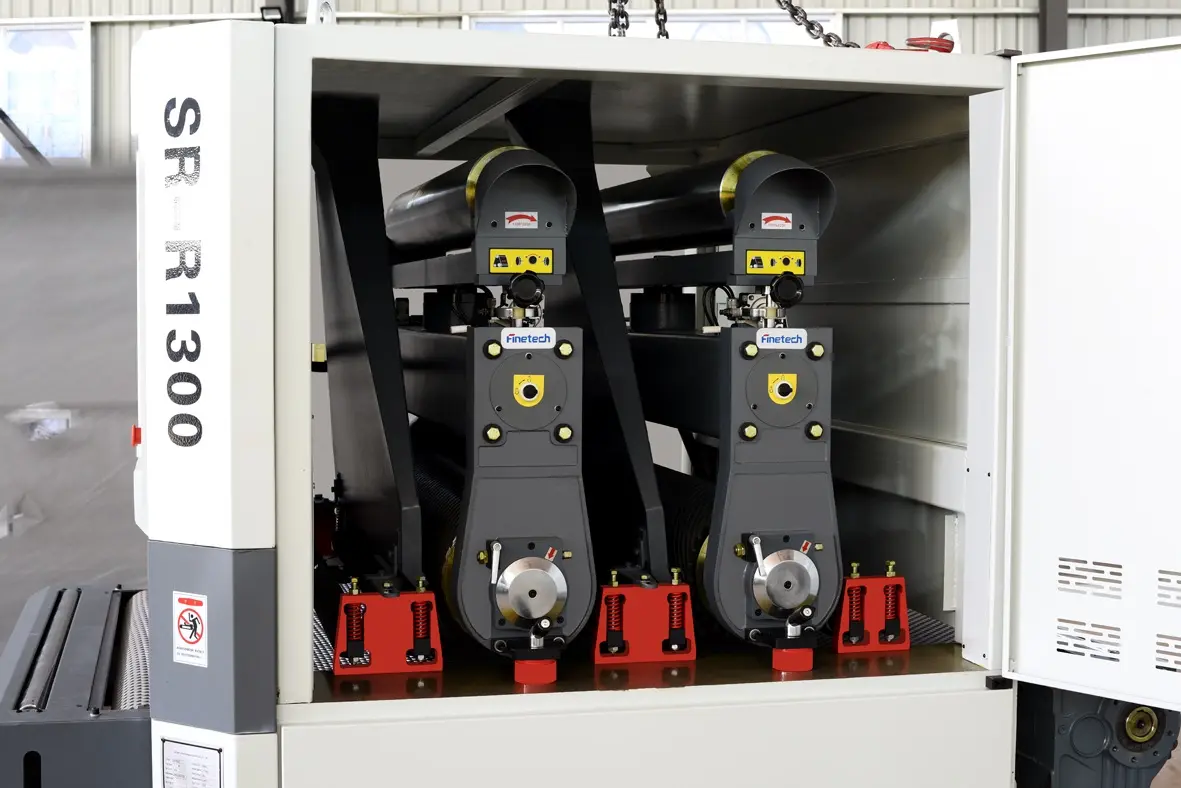

Two Heads Heavy-Duty Wide Belt Sander

Constructed with high-quality precision castings for the beam base and hanging plate, this heavy-duty machine minimizes noise while providing exceptional stability. It includes an anti-back device on the front press roller to protect operators from workpiece rebound. The worm gear lifting motor provides a stable, powerful, and highly accurate adjustment of the machine height.

Category:

Product Enquiry

Description

Technical Specification SR-RP1300 SR-R1300 SR-RP1300X
Max working width 1300mm 1300mm 1300mm
Min working length 530mm 360mm 360mm
Working thickness 2-110mm 2-110mm 2-110mm
Feeding speed 5-30m/min 5-30m/min 5-30m/min
Abrasive belt size 1330×2200mm 1330×2200mm 1330×2200mm
Total Motor power 63.92KW 79.92KW 91.42KW
Working air pressure 0.6Mpa 0.6Mpa 0.6Mpa
Air consumption 12m³/h 12m³/h 12m³/h
Dust collection volume 11200m³/h 11200m³/h 11200m³/h
Overall dimensions 2036×2382×2150mm 2036×2470×2150mm 2036×2382×2150mm
Net weight 3850kg 3950kg 3950kg
