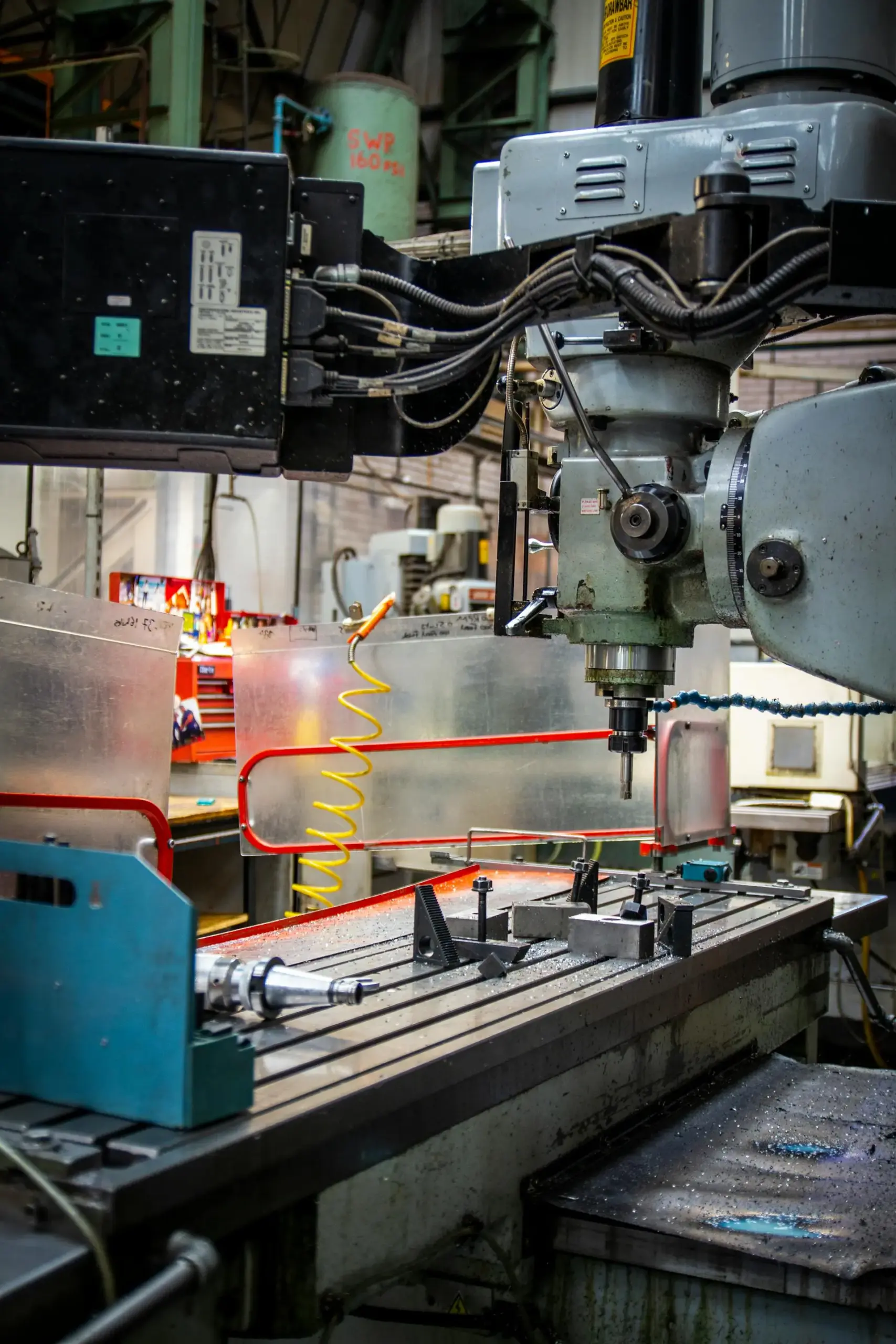

In panel furniture production, CNC drilling problems rarely announce themselves at the machine. They show up later, when hinges do not sit correctly, dowels feel too tight or too loose, drawer parts stop aligning, or assembly teams start compensating for parts that should have fit the first time.
That is why drilling accuracy should be treated as a workflow-control issue, not only a spindle issue. Hole position, hole depth, panel referencing, tool condition, and part handling all affect whether a cabinet line runs cleanly or slows down under hidden rework. When drilling mistakes repeat, the cost is not limited to one bad panel. The error spreads into fitting, assembly, and final quality.
Drilling Errors Usually Start Before the Bit Touches the Panel
Many factories first look at the drill bit when hole quality drops. In practice, the problem often starts earlier: the wrong reference edge was used, mirrored parts were mixed, the panel was not held consistently, or the program and the physical part flow were no longer aligned.
That matters because CNC drilling is reference-driven. A small error in origin selection or panel positioning can move every hole in the pattern. In cabinet and wardrobe production, that quickly affects hardware fit, assembly speed, and downstream repeatability.
Quick Diagnostic Table for Common CNC Drilling Problems
| Symptom on the Floor | Common Error | Practical Prevention |
|---|---|---|
| Hardware holes do not line up during assembly | Wrong reference edge or datum | Standardize one origin strategy from programming through part loading |
| Blind holes vary in depth | Offsets are not verified or chips remain in the hole | Check first-off depth and keep the drilling zone clean |
| Hole edges chip or break out | Tool wear, wrong tooling, or weak panel support | Use sharp tools and improve hold-down and support |
| Left-hand and right-hand parts are drilled incorrectly | Mirrored parts or programs are mixed | Separate part identification and validate mirrored components before release |
| Rework rises after a tool or material change | The change is treated as production, not as a new setup | Re-approve the first part after every meaningful change |
| Dowel fit becomes inconsistent | Tool wear, runout, or material variation is ignored | Track tool condition and confirm hole quality during the shift |
Mistake 1: Using the Wrong Reference Edge or Datum
One of the most common drilling errors is simple reference confusion. The program may assume the panel is loaded from one edge, while the operator or handling routine references another. In panel furniture work, this can affect shelf-pin patterns, connector holes, hinge locations, and other repetitive hardware positions.
The same problem appears when one department works from raw-panel dimensions while another works from finished-part dimensions after edge treatment. Even a small mismatch in that logic can shift every drilled feature.
Practical fixes include:
- Standardizing a clear reference-edge rule for every recurring part family.
- Making sure CAD/CAM assumptions match the way parts are physically loaded.
- Separating raw-size logic from finished-size logic instead of mixing them informally.
- Verifying 32 mm system alignment and other repeated hole systems from the same origin every time.
When datum control is weak, the machine can still drill exactly where it was told to drill. The problem is that it was told to drill from the wrong starting point.
Mistake 2: Letting the Panel Move During Drilling
Accurate programming cannot protect a panel that shifts during processing. If hold-down is inconsistent, the part can move slightly under drilling force or vibration. The result may be a hole pattern that looks almost correct but creates fitting problems in assembly.
This risk is higher on narrow parts, thin components, warped panels, or parts that are not supported consistently across the drilling cycle. Factories sometimes treat those small movements as random variation, but they are usually a workholding problem.
Practical fixes include:
- Checking clamps, pods, vacuum surfaces, or other holding points before release into production.
- Making sure narrow or awkward parts receive enough support during drilling.
- Keeping contact surfaces clean so chips or dust do not lift the panel slightly.
- Pulling obviously unstable or warped material out of the standard drilling flow instead of forcing it through.
If the panel does not stay in a controlled position, repeatability is already compromised before hole quality is inspected.
Mistake 3: Running Worn, Damaged, or Poorly Matched Tools
Tool wear does not only reduce edge quality. It also affects hole diameter consistency, surface cleanliness, heat buildup, and fit in downstream assembly. A worn tool may still appear usable, but the process often starts drifting before the damage is obvious.
This is especially costly when the shop responds by asking assembly teams to compensate for inconsistent fit instead of treating tool condition as the source of the problem.
Practical fixes include:
- Tracking tool life by material mix and production volume instead of waiting for visible failure.
- Matching the drilling tool to the substrate and finish expectation.
- Inspecting hole quality, fit, and cleanliness as process indicators rather than only checking whether the spindle is still running.
- Investigating holders, collets, and related components when oversize or unstable holes persist after tool replacement.
The goal is not to replace tools aggressively for appearance. The goal is to remove tool condition as a hidden source of assembly variation.
Mistake 4: Mismanaging Hole Depth, Breakout, and Chip Evacuation
Blind-hole depth errors are often treated as a programming issue alone. In reality, depth variation can come from offset mistakes, panel movement, chip buildup, or inconsistent material thickness. Exit breakout can also become a recurring issue when surface characteristics and support conditions are ignored.
This matters because depth errors usually stay hidden until hardware is installed or the part reaches assembly. By then, the cost of correction is much higher than a first-off check would have been.
Practical fixes include:
- Verifying depth and breakthrough conditions on the first approved part.
- Checking whether hole logic still matches the actual panel thickness being processed.
- Clearing chips consistently so blind holes are not affected by packed debris.
- Improving support conditions on surfaces where breakout is becoming a repeat defect.
Many drilling defects that look like machine instability are really process-control issues around offsets, support, and housekeeping.
Mistake 5: Overlooking Material and Surface Variation
MDF, particle board, laminated panels, veneered panels, and solid wood components do not behave the same way under drilling. If the shop applies one generic drilling routine to every substrate, hole quality often becomes unpredictable. Chipping, fiber tear, loose fit, or excess heat may start appearing only on certain jobs, which makes the problem easy to misclassify.
Practical fixes include:
- Reviewing drilling routines when the substrate or surface finish changes.
- Matching tooling condition and process settings to the actual material being run.
- Treating surface quality expectations as part of the drilling decision, not as a downstream cleanup issue.
- Separating repeat defects by material type so the root cause becomes visible faster.
Material variation does not mean the process must become complicated. It means the process must acknowledge that different panel constructions create different drilling risks.
Mistake 6: Mixing Up Left-Hand, Right-Hand, and Mirrored Parts
Mirrored components create some of the most expensive drilling errors because the hole pattern may be clean and repeatable, yet still wrong for the part. Cabinet sides, drawer components, and matched pairs can all be drilled accurately to the wrong orientation if part labeling and job control are weak.
These errors often escape early detection because the part still looks finished. The mismatch only becomes clear when hardware or assembly sequences fail.
Practical fixes include:
- Separating left-hand and right-hand parts clearly in digital files and physical part stacks.
- Requiring first-off approval for mirrored parts rather than assuming one side validates the other.
- Using consistent naming and labeling that operators can recognize quickly on the floor.
- Checking the operator-facing work order against the physical loading direction instead of trusting memory.
Mirrored-part errors are rarely caused by drilling precision. They are caused by weak information control around otherwise precise drilling.
Mistake 7: Skipping First-Off and In-Process Verification
Production pressure often removes the exact checks that protect throughput. Teams skip first-off verification because the previous job ran well, or because a tool change looks minor, or because the material is assumed to be the same. That is how repeated drilling errors turn into batch rework.
The strongest shops do not treat first-off checking as an administrative step. They treat it as the cheapest way to protect downstream assembly.
Practical fixes include:
- Rechecking the first part after every meaningful setup, tool, material, or program change.
- Measuring position, depth, and fit on features that actually affect assembly.
- Building short in-process checks into longer runs instead of assuming the first part guarantees the last.
- Recording when drilling errors begin so recurring root causes become easier to isolate.
One fast verification step at the machine usually costs less than a stack of parts waiting for manual correction.
Mistake 8: Treating Drilling as a Separate Island in the Process
Drilling errors often become persistent when cutting, edge treatment, and drilling are managed as separate islands. A part may be sized one way, referenced another way, and drilled according to a third assumption. That disconnect creates recurring mismatch even when each step appears locally controlled.
For repetitive cabinet-hole work, dedicated boring and drilling machines are commonly considered because they help simplify reference control and stabilize repeated hardware-hole processing. But even where drilling is integrated into a broader CNC workflow, the real improvement comes from keeping part dimensions, origins, and handling logic consistent across the full production route.
If drilling accuracy keeps drifting, the question should not be limited to tool condition or operator discipline. It should also include whether the full panel-processing workflow still shares one reliable logic from part creation to final assembly.
Build an Error-Prevention Routine Instead of Chasing Rework
Most drilling problems improve faster when the factory stops treating them as isolated incidents. A short, repeatable control routine usually does more than repeated fire-fighting.
A practical routine often includes:
- Confirming The Correct Reference Edge Before Loading The Part.
- Verifying Hold-Down And Panel Stability Before Releasing Production.
- Checking Tool Condition Before Hole Quality Starts To Drift.
- Approving The First Part After Every Real Change In Tool, Program, Material, Or Setup.
- Separating Mirrored Parts Clearly In Both Digital Files And Physical Handling.
- Reviewing Recurring Defects By Material Type, Shift, And Job Change Point.
This kind of routine matters because drilling errors are cumulative. They do not stay at the drilling station. They move into fitting, assembly, rework, and delivery performance.
Practical Summary
Most common CNC drilling errors come from ordinary process failures that become invisible through repetition: inconsistent datum control, unstable panel holding, worn tooling, poor depth control, material mismatch, mirrored-part confusion, and skipped verification. None of these problems is dramatic on its own, but each one can quietly damage repeatability and downstream assembly efficiency.
The most effective fix is usually not a more reactive quality response after parts leave the machine. It is a tighter drilling routine built around references, workholding, tool condition, material fit, and first-off discipline. When those basics are controlled, CNC drilling becomes more predictable, assembly moves faster, and rework stops absorbing margin in the background.
