Laser Engraver for Plastic: How to Avoid Poor Marking Results

by pandaxis / Thursday, 16 April 2026 / Published in Blog

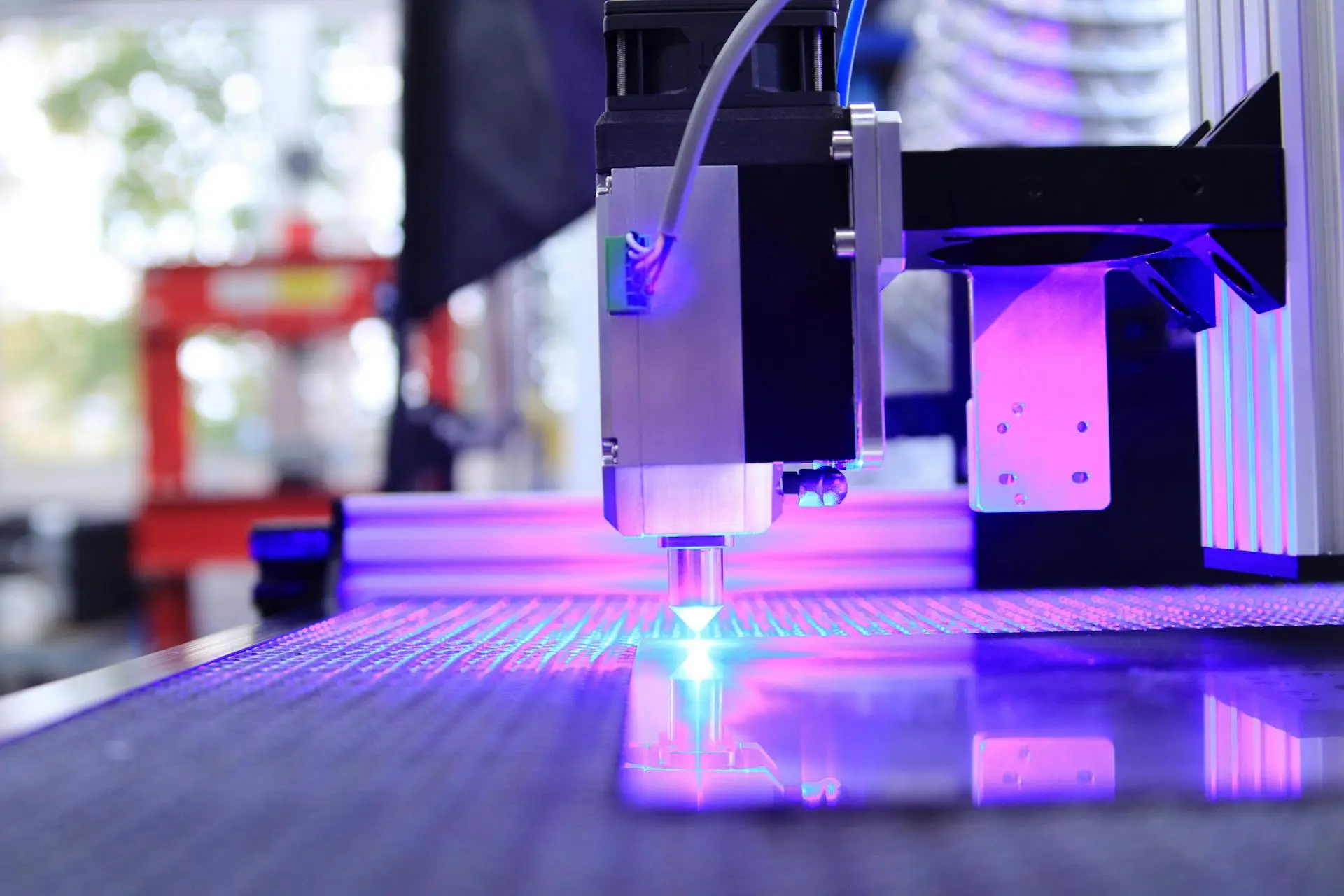

Laser Engraver for Plastic

Plastic marking failures rarely start at the control panel. They begin when a part is labeled simply as “plastic,” when one recipe is reused across different resins, or when a cosmetic surface mark is processed like a functional ID code. The result is weak contrast, melted edges, whitening, or warped parts that fail commercial inspection. Before tuning power or speed, production teams must define the mark’s true objective, verify the exact polymer and finish, and separate functional codes from visible branding. Without that discipline, scrap rates climb because the root cause was never in the settings.

Why Plastic Marking Fails Before You Even Touch the Settings

Poor plastic marks are often blamed on settings, but the failure usually starts earlier. A part is labeled simply as “plastic,” one recipe is reused across different resins, or the shop asks for a cosmetic surface mark while running a process that behaves more like light engraving. The result is familiar: weak contrast, melted edges, whitening, yellowing, warped parts, or a mark that is technically readable but commercially unacceptable.

For buyers evaluating laser cutters and engravers for acrylic and other non-metallic plastic work, the smarter question is not whether a laser can mark plastic at all. The real question is whether the exact polymer, finish, thickness, and cosmetic standard can be processed repeatably enough to control scrap in production.

Start With the Marking Objective, Not the Power Setting

Many plastic-marking problems begin with a mismatch between the expected result and the process the operator is actually running. A visible serial number, a customer-facing logo, a dense 2D code, and a decorative frosted effect may all be described internally as “laser marking,” but they do not place the same demands on the part.

Before changing parameters, define what the finished mark must do:

  • Stay readable under production lighting
  • Hold cosmetic quality on a visible surface
  • Survive handling, cleaning, or downstream assembly
  • Fit inside a small mark field without edge spread
  • Add identification without distorting a thin part

If the target is unclear, settings work turns into guesswork. Shops often increase energy to chase darker contrast, then create melt ridges or haloing that makes the part harder to approve. In plastic workflows, better marking usually comes from tighter control of the mark objective, not from more aggressive settings.

Consider a typical production scenario: a shop marks a control panel overlay with a logo and a date code. The logo sits on a visible face where any whitening or gloss change is a reject. The date code is hidden on an interior surface where readability is the only requirement. If the operator treats both as the same job, the recipe that produces a clean logo may be too hot for the thin interior wall, or the recipe that protects the thin wall may leave the logo washed out. Splitting the job into two distinct processes with separate acceptance criteria eliminates most of the conflict.

Plastic Is Not One Material Category in Practice

“Plastic” is too broad to be useful as a production instruction. Resin family, fillers, pigments, coatings, texture, and wall thickness can all change how a part responds to the beam. Two parts that look nearly identical on the rack may respond very differently once marking starts.

That is why material verification should happen before recipe tuning. The shop should know:

  • The exact resin family or approved material group
  • Whether the part includes additives, fillers, or surface coatings
  • Whether the surface is matte, glossy, textured, or painted
  • Whether the wall section is thick enough to tolerate local heat
  • Whether the customer standard prioritizes contrast, depth, or cosmetics

Unknown plastic is not just a quality risk. It is also a workflow risk. When the material is not positively identified, operators tend to overtest, settings drift from job to job, and reject rates rise because there is no stable baseline to hold.

The practical difference between resin families matters more than most operators realize. Acrylic (PMMA) responds to laser energy by vaporizing cleanly at the right settings, producing a frosted or polished edge depending on focus and speed. Polycarbonate (PC) behaves differently: it tends to yellow or brown when overheated, and it can produce a dark mark that looks good at first but may not hold contrast if the surface is handled. ABS and other filled or impact-modified resins may contain additives that change how the beam interacts with the surface. A recipe that works on a clear cast acrylic sheet can be completely wrong for a black molded ABS housing, even though both are “plastic” to the untrained eye.

Surface finish adds another layer of variation. A glossy part reflects more of the beam, which can reduce effective energy delivery. A matte or textured part scatters the beam, which can spread the heat over a wider area and produce a softer mark. Painted or coated surfaces introduce a separate problem: the laser may burn through the coating before it reaches the substrate, creating a halo or discolored ring around the mark field. Each of these conditions requires a separate recipe, not a single “plastic” preset.

The Most Common Failure Modes and What Usually Causes Them

Most poor plastic marking results fall into a small number of recurring patterns. The practical value comes from tracing each pattern back to the process condition that actually drives it.

Poor Result What Usually Drives It First Corrective Priority
Weak or washed-out contrast Material and process are mismatched, or the energy level is too low to create a stable visible change Confirm the exact plastic and redefine the target appearance before adjusting settings
Melted edges or raised rims Too much heat is concentrated in a small area, often from slow marking, dense fills, or an overly aggressive recipe Reduce heat load per area and test a less aggressive pass strategy
Yellowing, browning, or surface burn Thermal overload, poor residue removal, or repeated heat buildup in one zone Improve extraction and lower localized heat accumulation
Whitening or haze outside the mark Surface chemistry and heat response are not being controlled tightly enough for the finish standard Separate recipes by finish and approve samples on the real production surface
Warping on thin parts Part support is weak, or the local mark heat is too high for the wall thickness Improve fixturing and retest on the actual part geometry
Batch-to-batch inconsistency Plastic source, colorant package, or surface treatment changes while the same recipe is reused Lock recipes to approved material variants, not to the generic word “plastic”
Readable but visually poor marks The line is treating a cosmetic job like a functional ID job Re-specify the quality target and decide whether a different mark strategy is needed

The important pattern is that poor marks rarely come from one variable alone. Material response, part geometry, support, extraction, and recipe logic all interact. When operators try to solve every defect by changing only power or speed, they usually fix one problem while creating another.

Take the example of a thin acrylic panel that warps during marking. The operator might reduce power to protect the part, but then the mark loses contrast. The next attempt might increase speed, which reduces heat per unit area but also reduces the time the beam spends creating the visible change. The real fix may have nothing to do with power or speed: it may be a fixturing problem. If the part is not held flat and stable, the focus condition shifts as the material moves, which changes the effective energy density across the mark field. A simple vacuum fixture or edge clamp can solve the problem without touching the recipe at all.

Settings Only Matter After the Process Logic Is Right

Once the material and output target are clearly defined, parameter tuning becomes useful. At that stage, the job is not to force a darker mark at any cost. The job is to distribute energy in a way that creates the required contrast while protecting the surrounding plastic.

The settings area that usually matters most includes:

  • Focus condition and spot stability
  • Energy distribution across the marked area
  • Fill density and line spacing on larger filled graphics
  • Single aggressive pass versus multiple lighter passes
  • Part support and flatness during the marking cycle
  • Extraction quality and residue removal around the mark field

These factors matter because plastics often fail through accumulated heat rather than through one visibly dramatic event. A recipe can look acceptable on a quick sample and still break down later when the part queue gets larger, the mark field gets denser, or the surface finish changes slightly.

Focus is a good place to start. If the beam is not focused correctly for the material thickness and surface height, the spot size changes, which changes the energy density. A larger spot spreads the heat over a wider area, which can produce a washed-out mark. A smaller spot concentrates the heat, which can produce melting or burning. On parts with slight warpage or inconsistent thickness, the focus condition may vary across the mark field, producing a mark that looks good in one corner and poor in another.

Fill density and line spacing matter most on larger graphics. A solid logo or a filled rectangle requires the beam to cover the entire area. If the line spacing is too wide, the mark may show visible banding or a striped appearance. If the line spacing is too tight, the overlapping passes may accumulate heat and cause melting or discoloration. The right fill strategy depends on the material, the mark size, and the desired appearance. A functional code can tolerate visible fill lines; a cosmetic logo cannot.

The choice between a single aggressive pass and multiple lighter passes is another decision point. A single high-energy pass can produce strong contrast quickly, but it also concentrates heat in a short time window. Multiple lighter passes spread the heat over a longer period, which can reduce the risk of melting but may also increase cycle time. On thin parts or heat-sensitive resins, the multiple-pass approach is often more stable. On thick, heat-tolerant materials, the single-pass approach may be faster and produce a cleaner edge.

Extraction quality is easy to overlook but hard to ignore once it fails. Laser marking of plastic generates vapor and particulate residue. If the extraction system does not remove this residue quickly, it can settle back onto the part surface around the mark field. The result is a hazy or discolored ring that looks like a marking defect but is actually a housekeeping problem. On glossy parts, this residue can be especially visible and difficult to remove without additional cleaning steps.

Separate Functional Marks From Cosmetic Marks

One of the most useful ways to reduce poor results is to split plastic jobs into two groups: functional marks and cosmetic marks.

Functional marks usually include:

  • Serial numbers
  • Traceability codes
  • Internal identification fields
  • Assembly reference marks

Cosmetic marks usually include:

  • Brand logos
  • User-visible product labels
  • Decorative graphics
  • Premium consumer-facing text

The same machine may process both, but the approval logic should not be the same. A functional code can pass if it is readable and durable even when the appearance is only average. A cosmetic mark can fail even when it is perfectly readable if the surrounding surface shows whitening, gloss change, or edge spread.

Shops that separate these categories early usually make better process decisions. They avoid overprocessing functional codes and underestimating the quality discipline required for cosmetic branding.

A concrete example: a medical device manufacturer marks a housing with a lot number and a company logo. The lot number is read by a scanner at final assembly; it needs to be legible and permanent, but no one inspects its appearance under magnification. The logo is visible on the finished product and must match the brand standard for color and edge definition. If the shop uses the same recipe for both, it will either overprocess the lot number (slowing the line and risking heat damage) or underprocess the logo (producing a mark that fails visual inspection). Splitting the jobs into separate recipes with separate acceptance criteria allows the line to run faster on the functional mark and take the extra time needed on the cosmetic mark.

Mixed-Plastic Production Usually Needs Stronger Recipe Discipline

Poor results increase quickly when one machine handles several plastic families with only loose job controls. The line may switch from clear acrylic parts to dark molded housings to thin coated covers, while operators keep reusing a recipe because it was “close enough” on the previous batch.

That is where workflow discipline matters more than headline machine claims. A stable line typically uses:

  • Approved material lists for laser work
  • Separate recipes by plastic, color, and surface finish
  • First-off approval on actual production parts
  • Clear rules for when a new supplier lot requires revalidation
  • Defined reject criteria for contrast, edge quality, and surface appearance

If the plant handles plastic alongside wood, acrylic, and other non-metal jobs, reviewing the Pandaxis product catalog can help separate a true marking problem from a wider equipment-planning issue. In many factories, the bottleneck is not only the mark recipe. It is the way mixed-material jobs are scheduled, approved, and handed off between operators.

The revalidation rule is often the weakest link. A shop may qualify a recipe on one batch of material, then receive a new lot from the same supplier with a slightly different colorant package or additive profile. The recipe that worked on the first lot may fail on the second. Without a rule that requires revalidation when the material lot changes, the line will drift into reject territory before anyone notices. A simple protocol—mark a test coupon from each new lot, compare it to the approved standard, and adjust the recipe if needed—prevents most batch-to-batch inconsistency.

Operator handoff is another source of drift. If the day shift and night shift use different recipe names, or if one operator prefers a slightly different speed setting, the process will not be stable. Locking recipes to approved material variants and requiring operators to select from a predefined list reduces this variability. It also makes troubleshooting easier: when a defect appears, the team can trace it back to the exact recipe and material combination rather than guessing which variable changed.

When Better Settings Will Not Fix the Problem

Some plastic-marking jobs should not be forced into acceptance through endless parameter changes. If the part only passes at impractically low throughput, if the cosmetic window is too narrow to hold across production lots, or if the material response changes sharply from batch to batch, the issue is no longer just settings.

That is the point where buyers should step back and ask:

  • Is the current process type appropriate for this plastic?
  • Is the mark location too sensitive for the required appearance standard?
  • Would a lower-heat marking strategy be more stable?
  • Does the job need material approval rules before it needs more tuning?
  • Is a non-laser identification method better for this part family?

This is an important tradeoff to acknowledge honestly. A machine can be technically capable of making a visible mark and still be the wrong workflow choice if scrap, rework, or cosmetic rejection stay too high.

Consider a part with a very thin wall section and a strict cosmetic standard. The laser may be able to produce a readable mark, but only at settings that are so conservative that the cycle time becomes unacceptable. Or the mark may pass on some parts and fail on others because the wall thickness varies slightly across the batch. In this situation, the problem is not the laser; it is the combination of part geometry, material response, and quality standard. A different marking method—such as pad printing, inkjet, or a pre-printed label—may be more stable and more cost-effective for that specific part family.

The same logic applies when the material itself is the problem. Some plastics are simply difficult to mark with a laser because their thermal response produces poor contrast or unacceptable surface damage. Forcing the process to work through aggressive settings will only increase scrap. The honest assessment is that the part family needs a different identification method, not a better laser recipe.

What Buyers Should Evaluate Before Buying for Plastic Marking Work

If plastic marking quality is a major buying driver, the machine should be evaluated against real production parts rather than broad material claims. Sample work should reflect actual wall thickness, actual color, actual coatings, and the real approval standard used by the factory or end customer.

The most useful evaluation questions are usually:

  • Which plastic families will use the most machine hours?
  • Are the marks primarily functional, cosmetic, or mixed?
  • How tight is the acceptance standard for surface appearance?
  • How often does the plant change material supplier or color variant?
  • Does the line need fine small-field marking, broad filled graphics, or both?
  • How much scrap cost is coming from poor contrast versus heat damage?

These questions move the purchase discussion away from generic claims and toward process fit. That is where poor marking results are either prevented early or designed into the workflow from the start.

Sample testing deserves special attention. A vendor may demonstrate a mark on a flat, thick, glossy sample that looks excellent. The real production part may be thin, textured, or coated, and it may respond very differently. The buyer should insist on testing the actual part geometry, the actual surface finish, and the actual material lot that will run in production. The sample should also be evaluated against the real acceptance standard—not just whether it is readable, but whether it meets the cosmetic requirements for the visible surface.

The mix of mark types matters for machine selection. A line that only marks small serial numbers needs a different configuration than a line that marks large filled graphics. Small-field marking requires precise focus and spot control. Large filled graphics require consistent energy distribution across a wider area. A machine that handles one well may struggle with the other. The buyer should quantify the expected mix before selecting a configuration.

Scrap cost analysis is another useful input. If the current reject rate is driven by poor contrast, the solution may be a more capable laser or a better recipe. If the reject rate is driven by heat damage, the solution may be a different marking strategy or better fixturing. Knowing which cost driver dominates helps the buyer prioritize the machine features that will actually reduce scrap.

Production Takeaway: Laser Engraver for Plastic

Poor plastic marking results usually come from one of four root problems: the mark objective is unclear, the material is not tightly verified, the recipe is distributing too much heat, or the workflow is too loose for mixed-plastic production.

The most reliable fix is not to chase darker marks with a more aggressive recipe. It is to define the required result first, validate the exact plastic and finish, separate functional jobs from cosmetic ones, and control recipes by real material behavior instead of by generic category names.

For industrial buyers, that selection logic matters more than any simple claim that a laser engraver can “do plastic.” In real production, good results come from a stable match between the machine, the approved material, and the quality standard the part actually has to meet.

The evaluation process should start with a clear statement of the marking objective, move through material verification, and only then address settings. Shops that follow this sequence consistently produce fewer rejects, less rework, and more predictable cycle times. Shops that skip straight to parameter tuning will keep fighting the same defects job after job, because the root cause was never in the settings to begin with.

For a production manager, the takeaway is straightforward: before changing power, speed, or frequency, confirm what the mark must do, verify what the material actually is, and check whether the part can tolerate the heat load. That discipline will prevent most poor marking results before they reach the reject bin.
